Removal And Installation: Notes

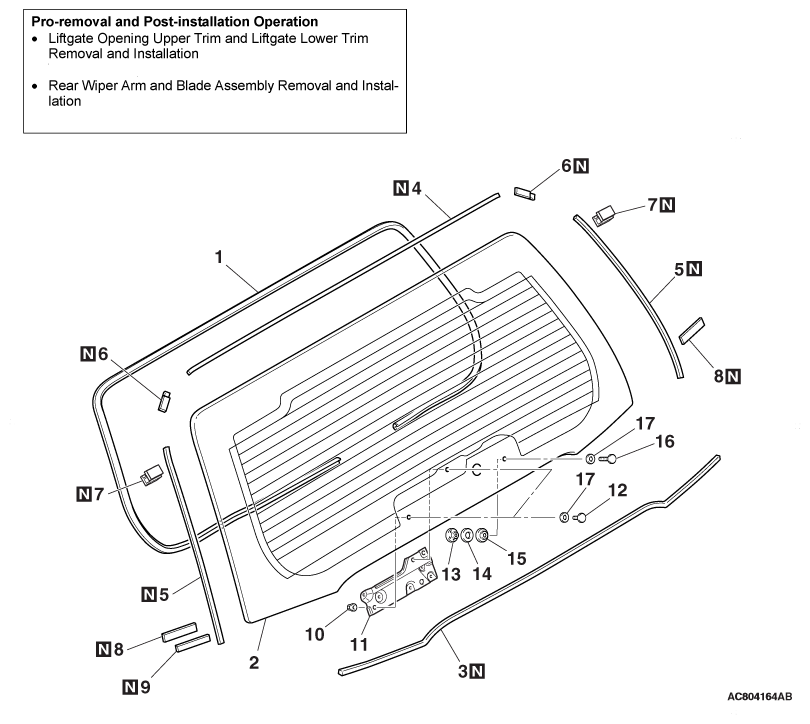

Fig 1: Identifying Liftgate Window Glass Removal And Installation (1 Of 2)
G06700084Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

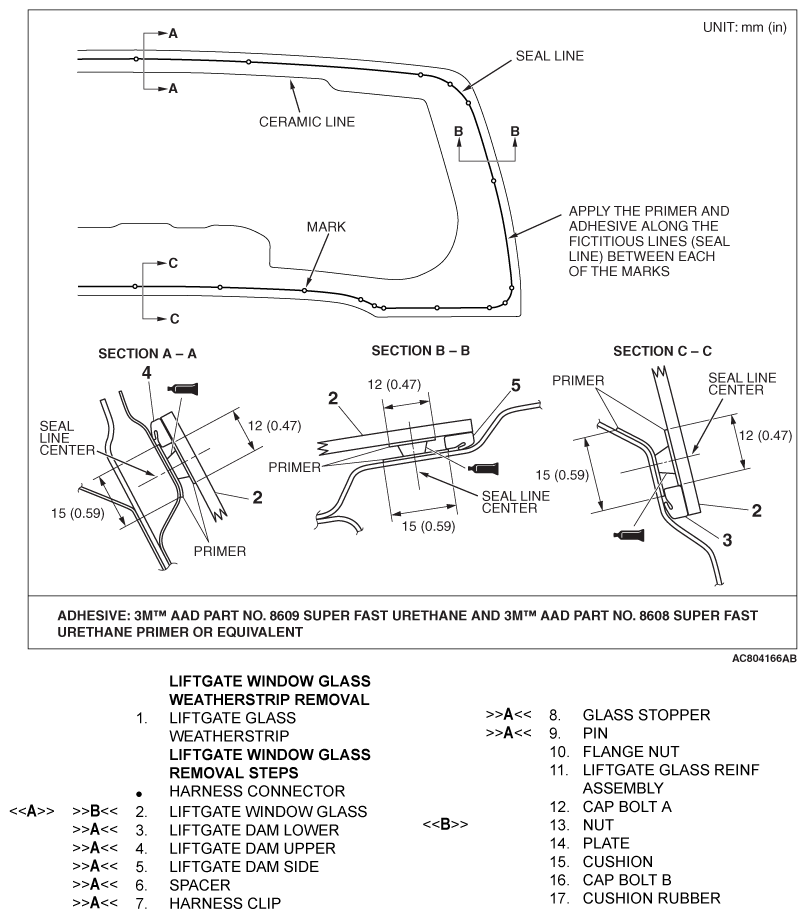

Fig 2: Identifying Liftgate Window Glass Removal And Installation (2 Of 2)
G06700085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
