Notes
Disassembly And Assembly: Notes

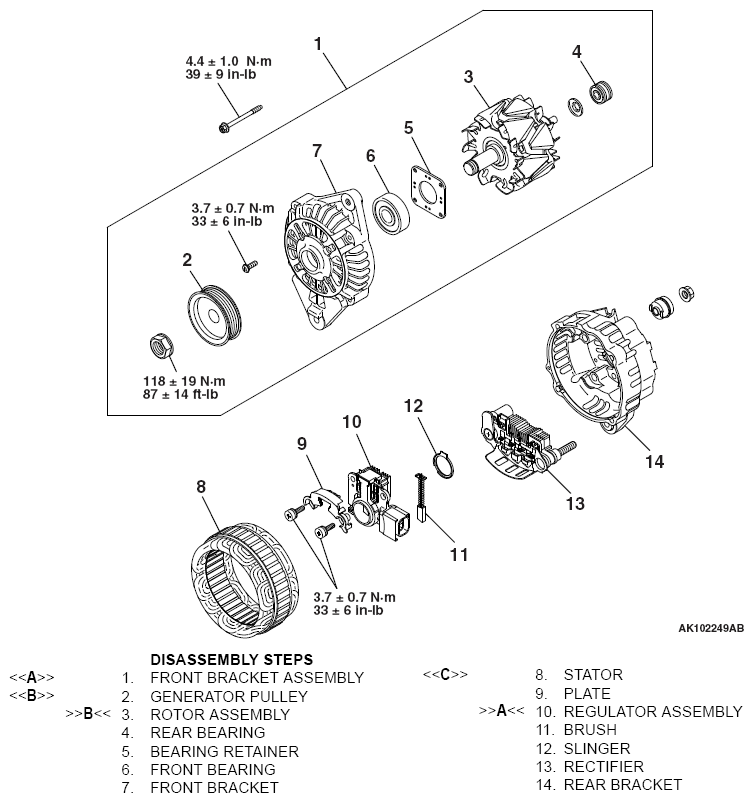

Fig 1: Generator Assembly Disassembly And Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
