Mitsubishi
›
2010
›
Endeavor LS, AWD
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System
›
Generator Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

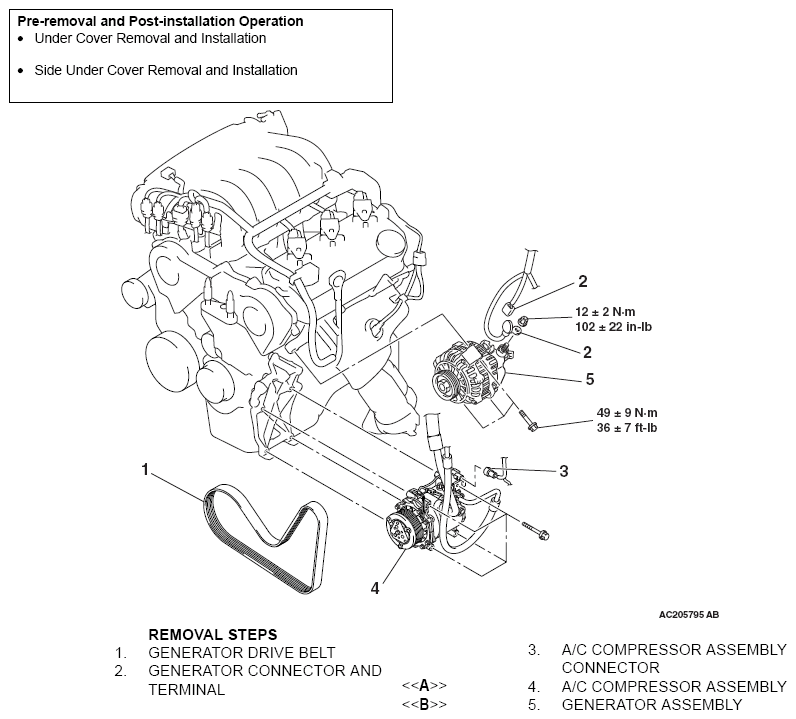

Fig 1: Generator Assembly Removal And Installation With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
