Control Unit

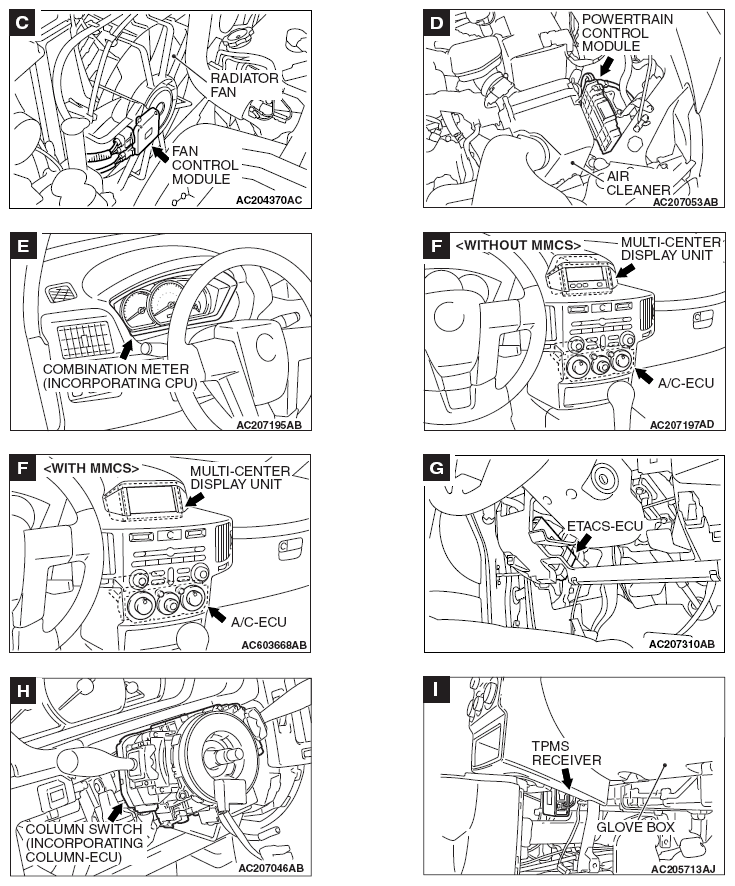

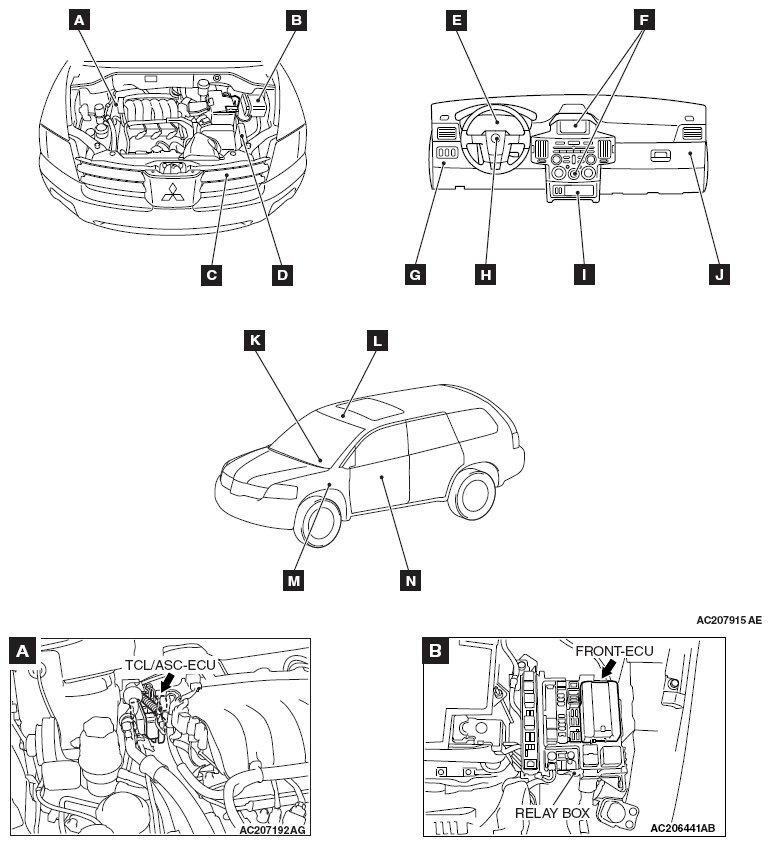

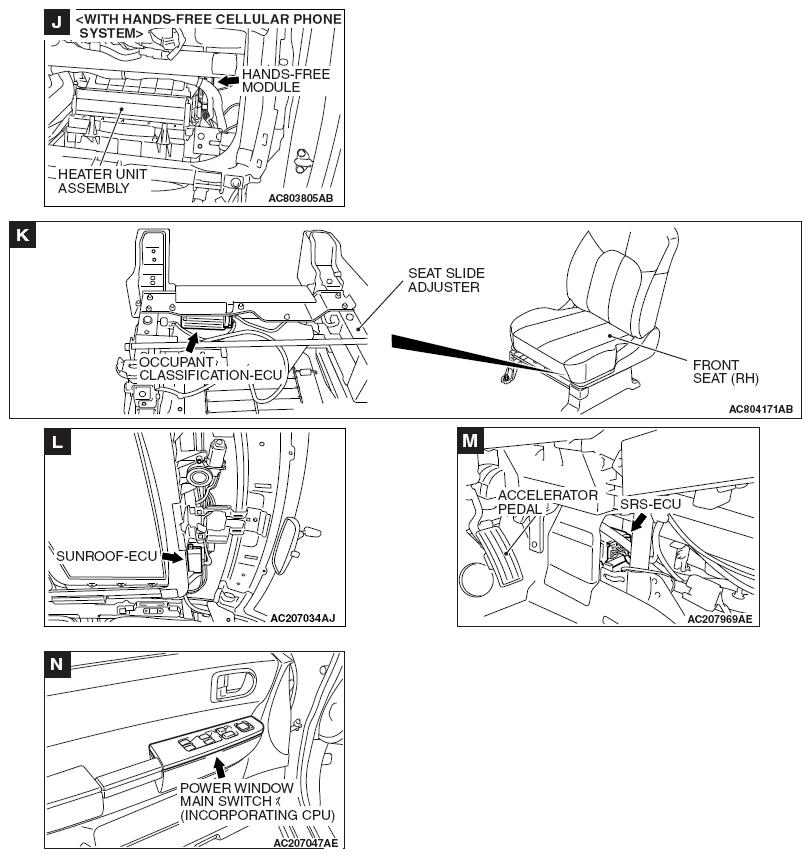

CONTROL UNIT SYMBOLS REFERENCE CHART
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| TCL/ASC-ECU | A | Multi-center display unit | F |
| A/C-ECU | F | Occupant classification-ECU | K |
| Column switch (incorporating column-ECU) | H | Power window main switch (incorporating CPU) | N |
| Combination meter (incorporating CPU) | E | Powertrain control module | D |
| ETACS-ECU | G | SRS-ECU | M |
| Fan control module | C | Sunroof-ECU | L |
| Front-ECU | B | TPMS receiver | I |
| Hands-free module < with hands-free cellular phone system > | J |
