Sensor Location

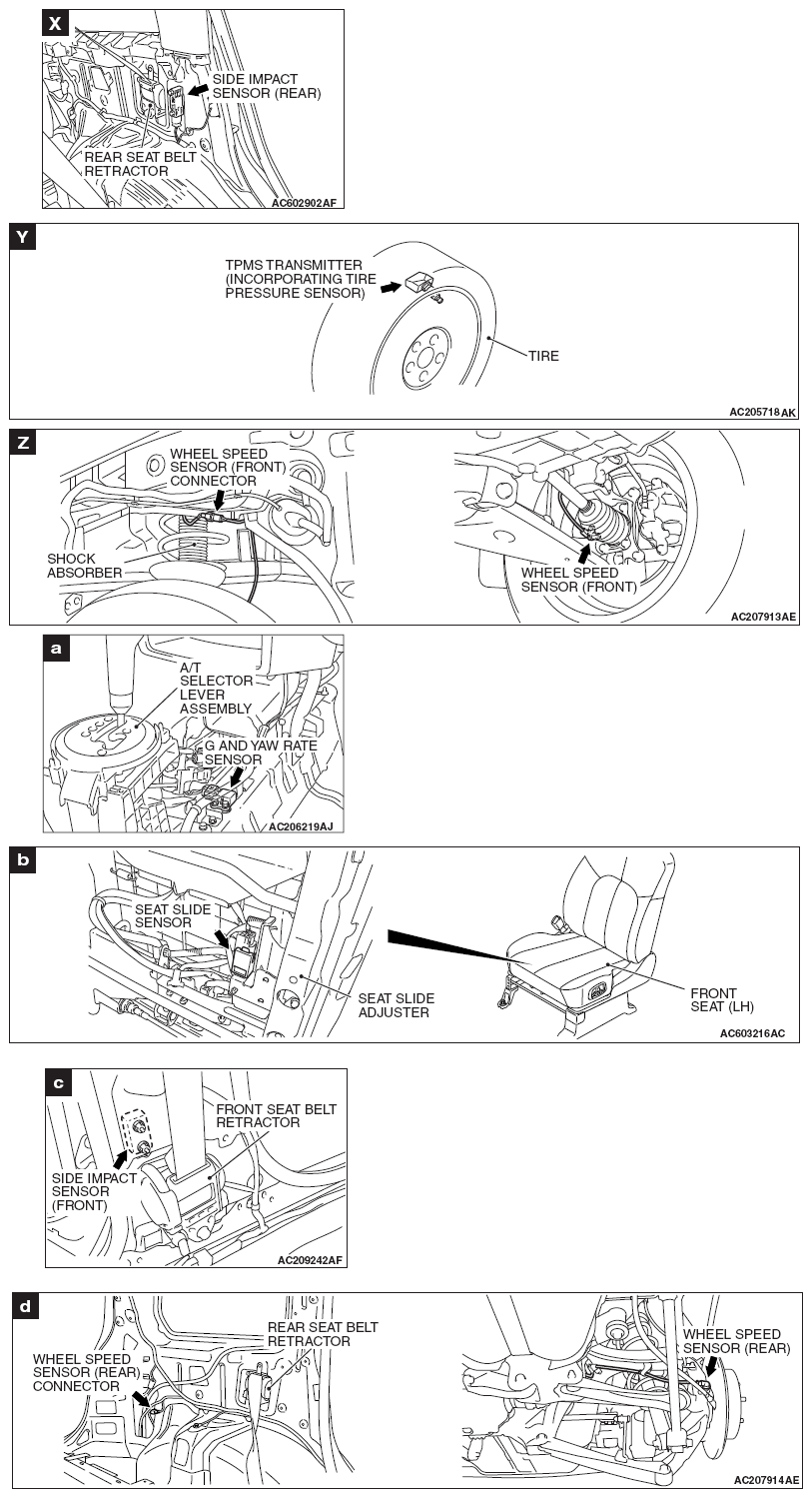

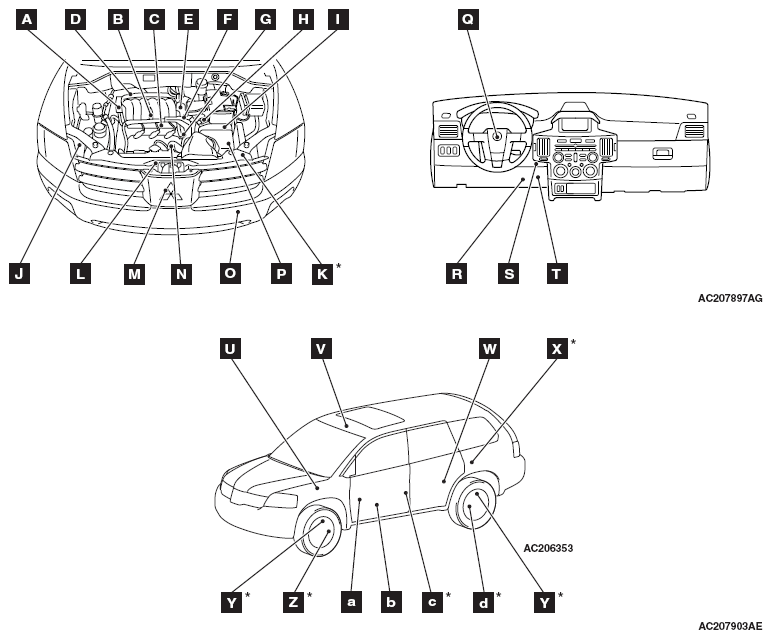

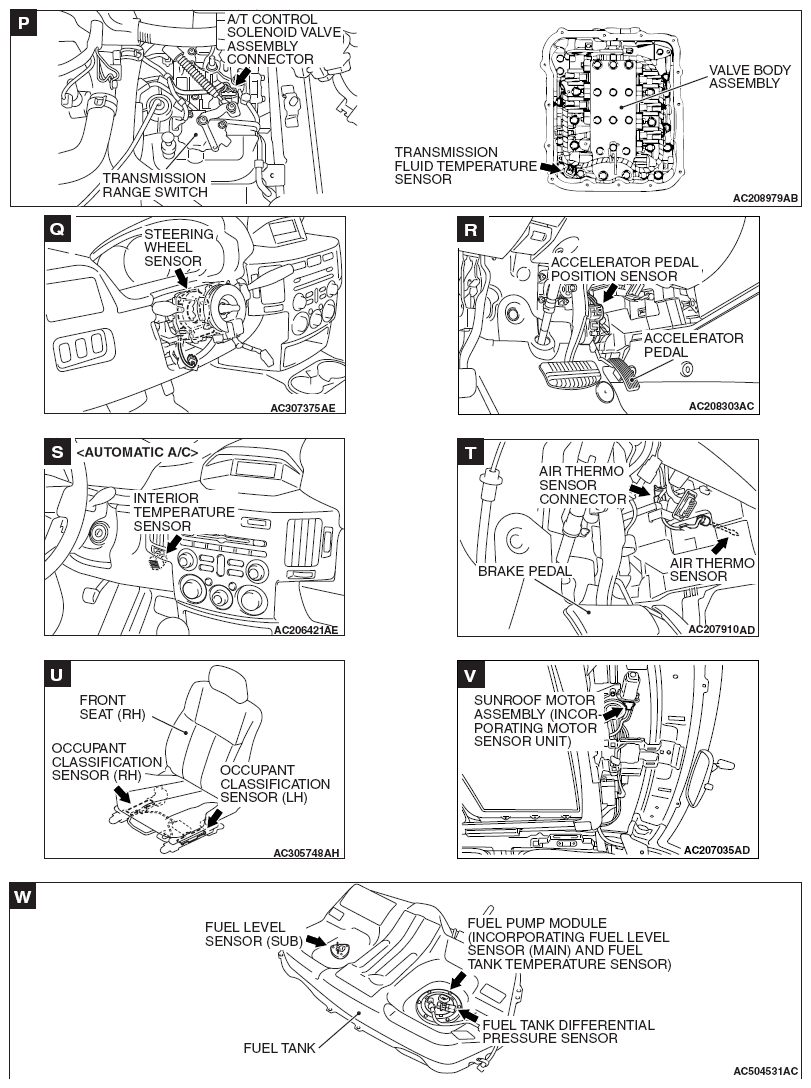

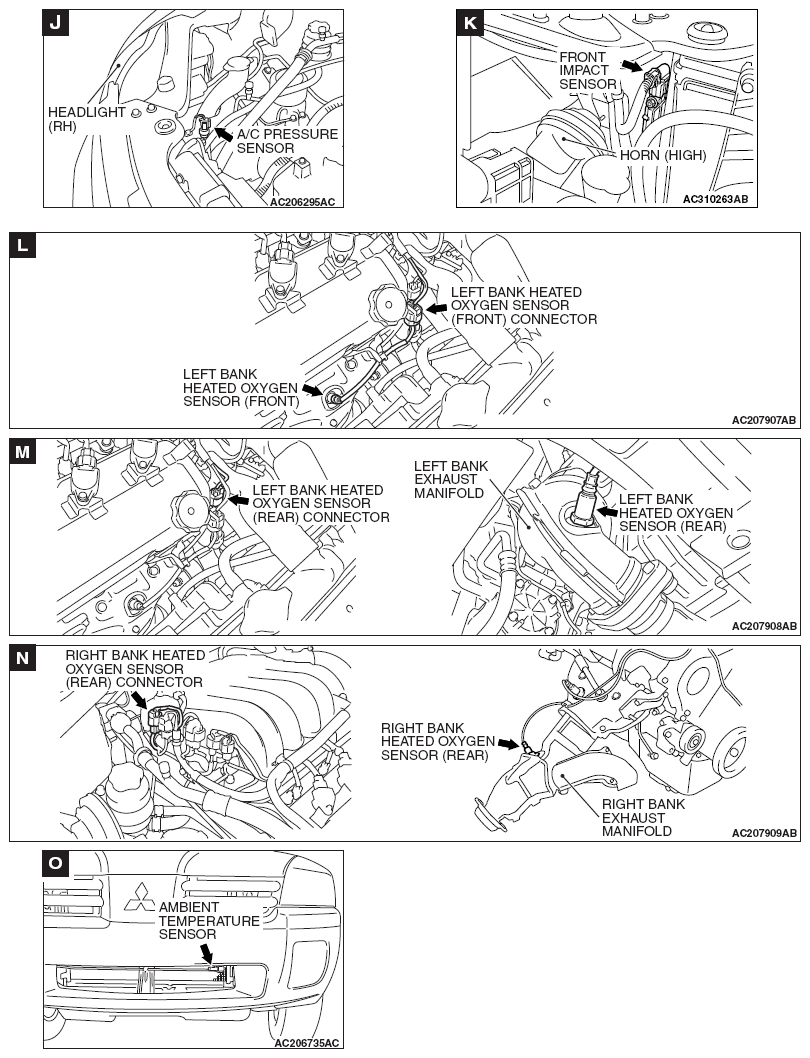

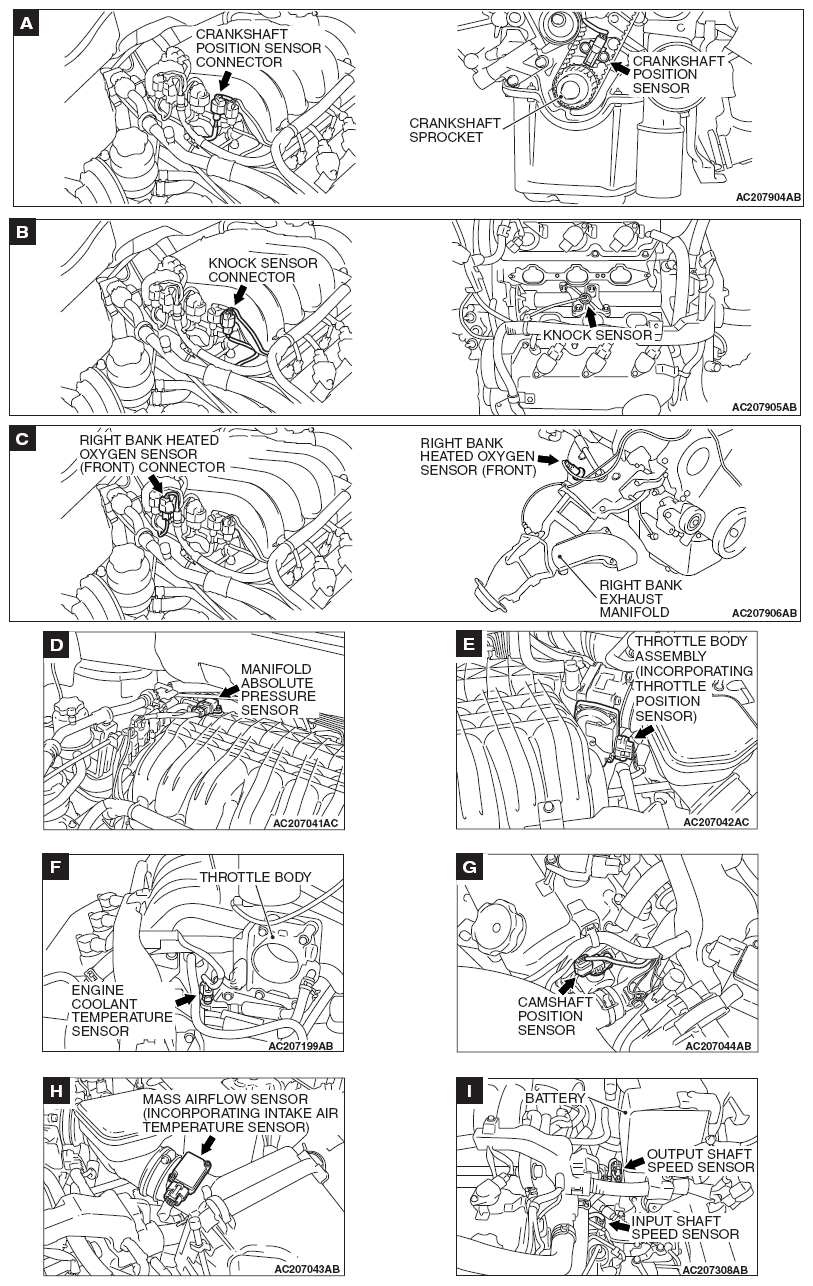

SENSOR SYMBOLS REFERENCE CHART
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| A/C pressure sensor | J | Left bank heated oxygen sensor (rear) | M |
| A/T control solenoid valve assembly (incorporating transmission fluid temperature sensor) | P | Manifold absolute pressure sensor | D |
| Accelerator pedal position sensor | R | Mass airflow sensor (incorporating intake air temperature sensor) | H |
| Air thermo sensor | T | Occupant classification sensor (LH), (RH) | U |
| Ambient temperature sensor | O | Output shaft speed sensor | I |
| Camshaft position sensor | G | Right bank heated oxygen sensor (front) | C |
| Crankshaft position sensor | A | Right bank heated oxygen sensor (rear) | N |
| Engine coolant temperature sensor | F | Seat slide sensor | b |
| Front impact sensor | K | Side impact sensor (front) | c |
| Fuel level sensor (sub) | W | Side impact sensor (rear) | X |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | W | Steering wheel sensor | Q |
| Fuel tank differential pressure sensor | W | Sunroof motor assembly (incorporating motor sensor unit) | V |
| G and yaw rate sensor | a | Throttle body assembly (incorporating throttle position sensor) | E |
| Input shaft speed sensor | I | TPMS transmitter (incorporating tire pressure sensor) | Y |
| Interior temperature sensor < Automatic A/C > | S | Wheel speed sensor (front) | Z |
| Knock sensor | B | Wheel speed sensor (rear) | d |
| Left bank heated oxygen sensor (front) | L |
NOTE:
The * symbols indicate equipped at both sides.
