Home › Mitsubishi › 2010 › Endeavor LS, AWD › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Floor Console Assembly › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

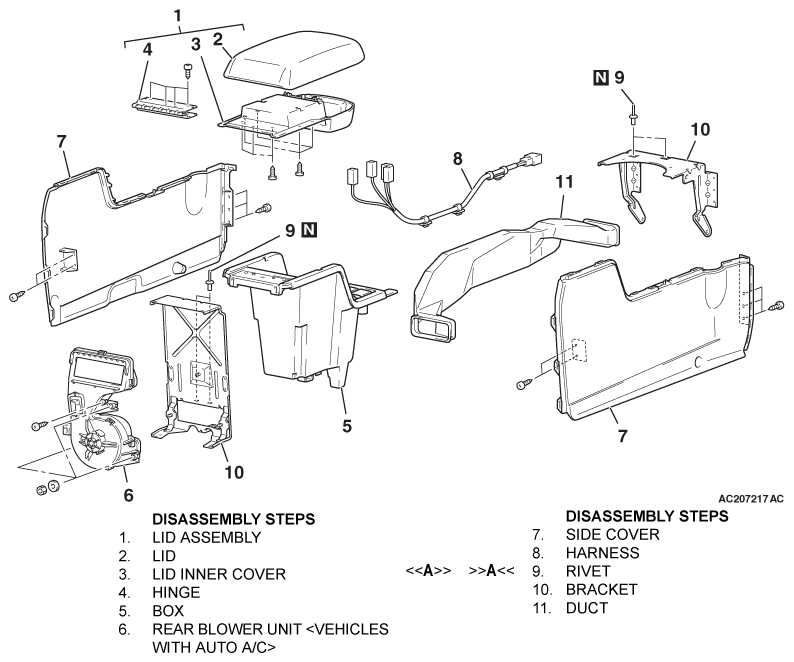

Fig 1: Identifying Floor Console Assembly Disassembly And Assembly
G06700297Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
