Home › Mitsubishi › 2010 › Endeavor LS, AWD › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Instrument Panel Assembly › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

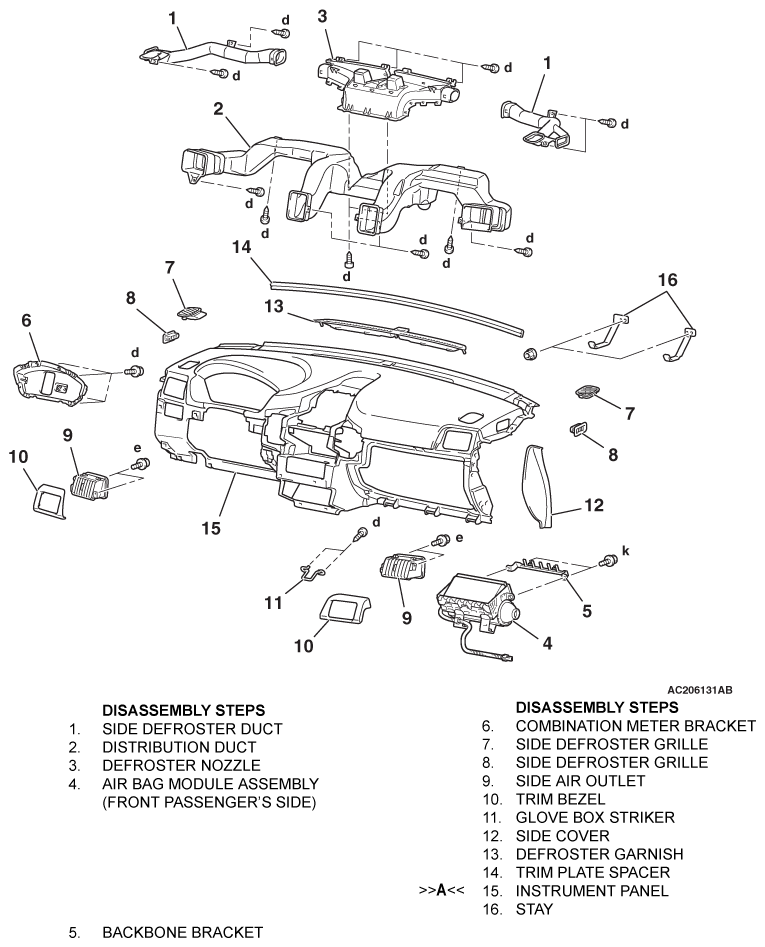

Fig 1: Identifying Instrument Panel Assembly Disassembly And Assembly
G06700294Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
