Disassembly And Assembly
›
< 3.8L Engine>
< 3.8L Engine>

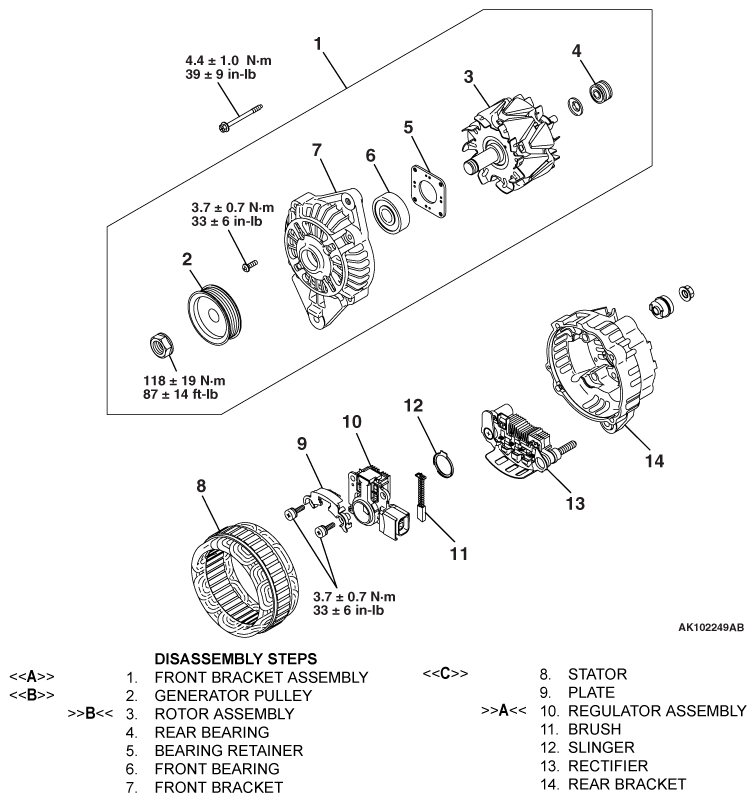

Fig 1: Disassembled View Of Generator (3.8L Engine) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
