Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Body Grounds Overview

G00446335

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Passenger & Engine Compartment

G00446336

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Passenger & Engine Compartment

G00446337

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

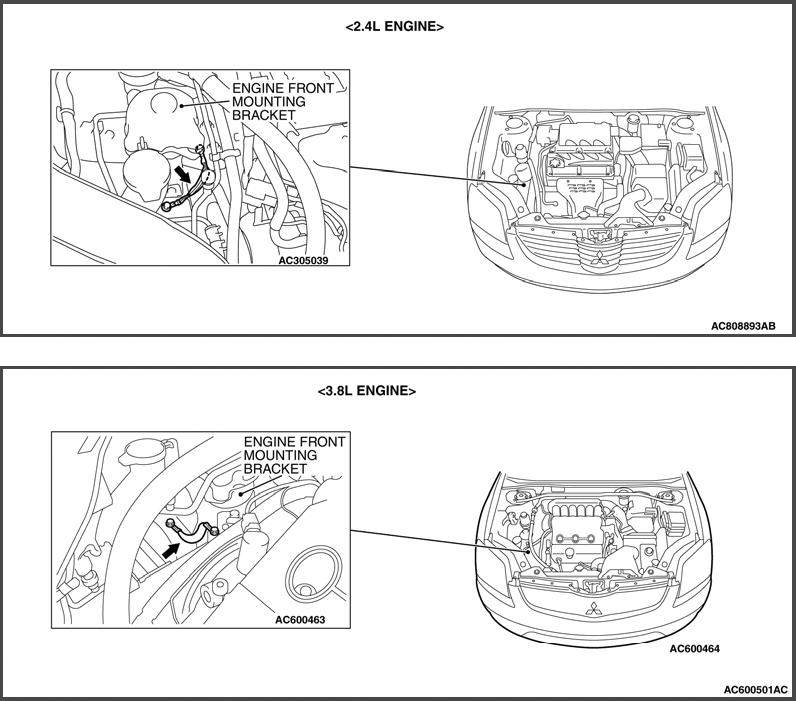

Fig 4: Engine Compartment

G00477928

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

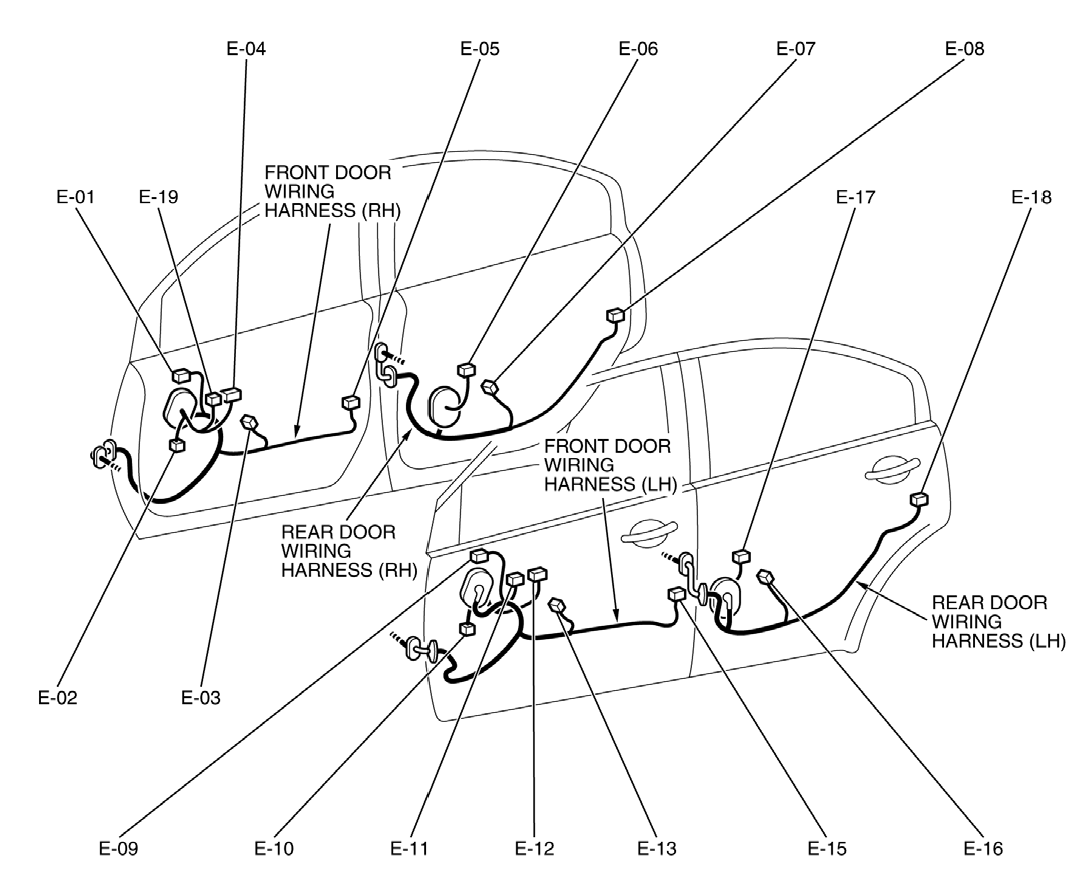

Fig 5: Left & Right Doors

G00478222

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Engine & Transaxle (2.4L)

G00270662

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

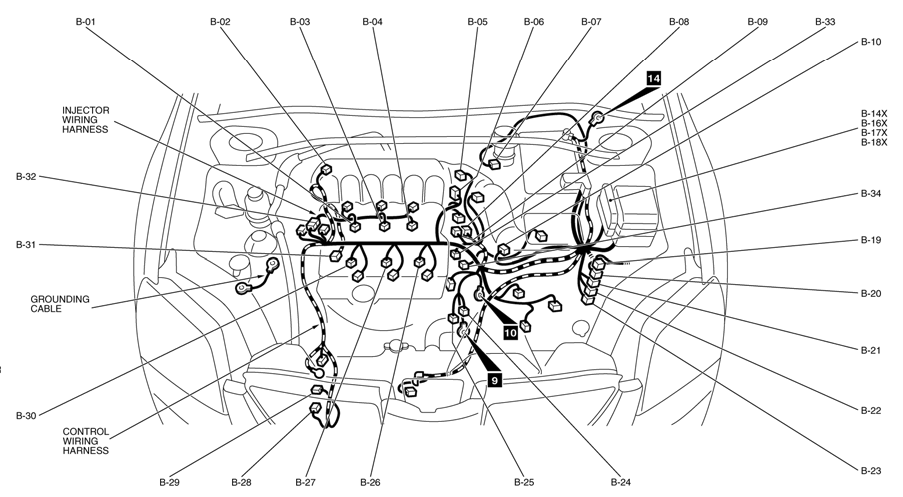

Fig 7: Engine & Transaxle (3.8L)

G00477921

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

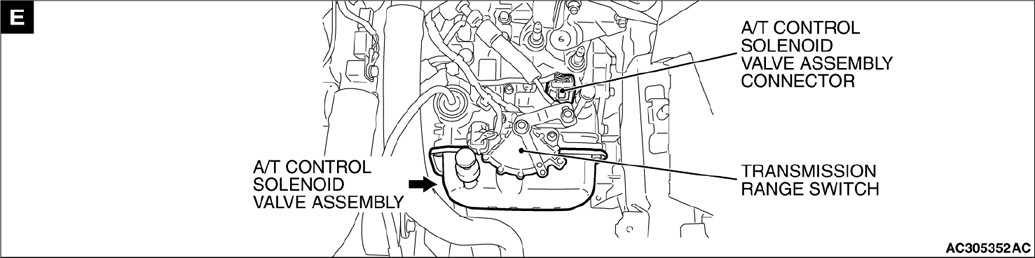

Fig 8: Body Overview

G00477922

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

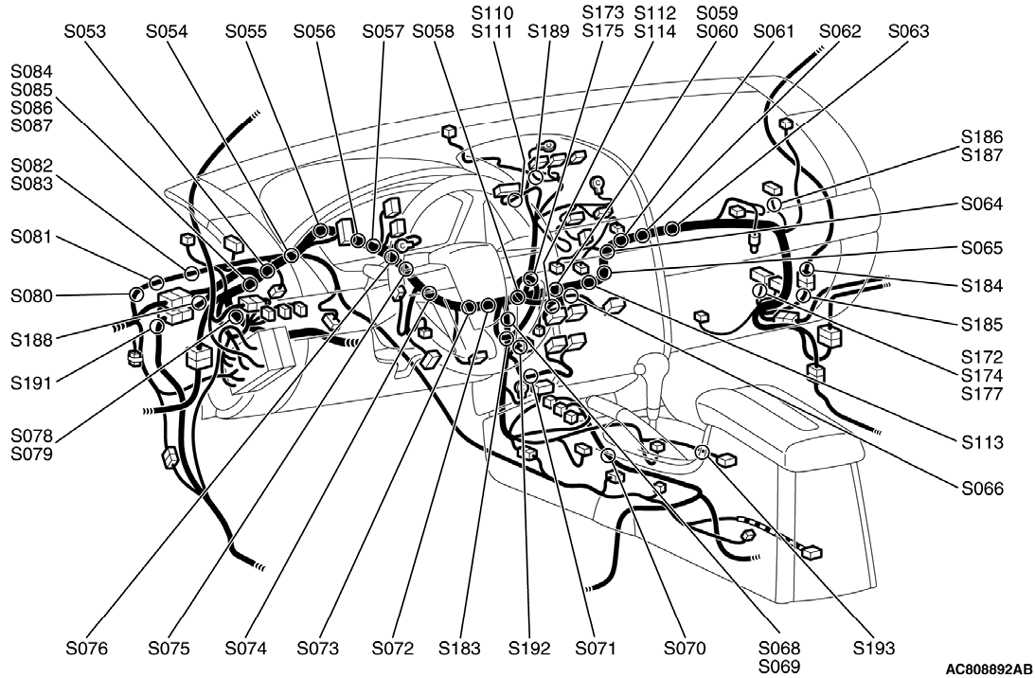

Fig 9: Dash & Console Overview

G00478226

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Left & Right Doors

G00359242

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Engine Compartment (2.4L)

G00446362

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

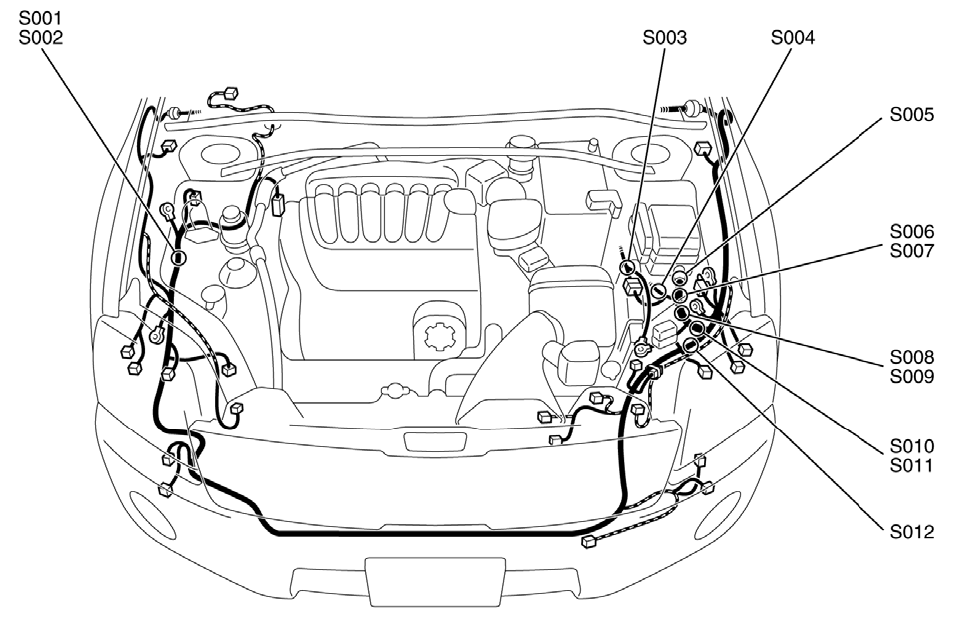

Fig 12: Engine Compartment

G00478227

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

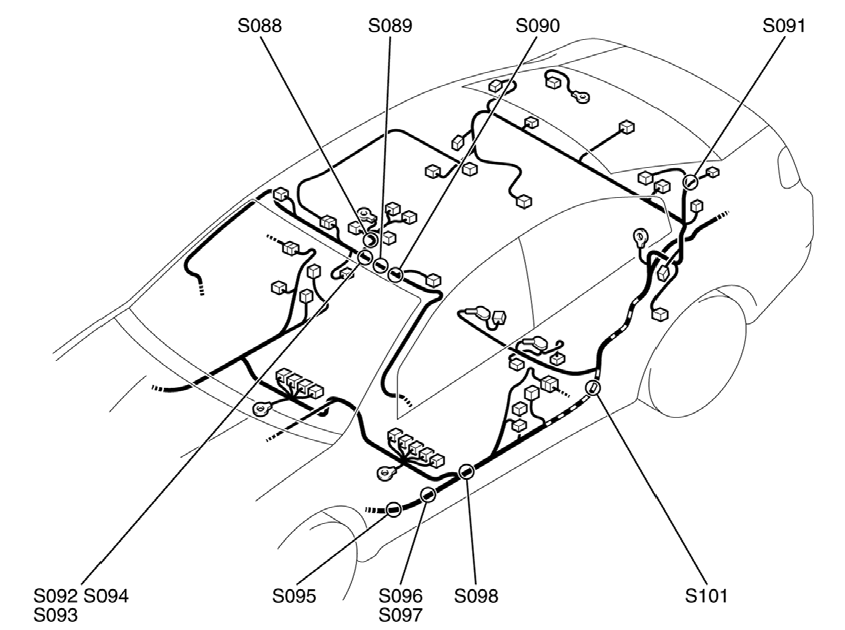

Fig 13: Passenger Compartment Overview

G00477923

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

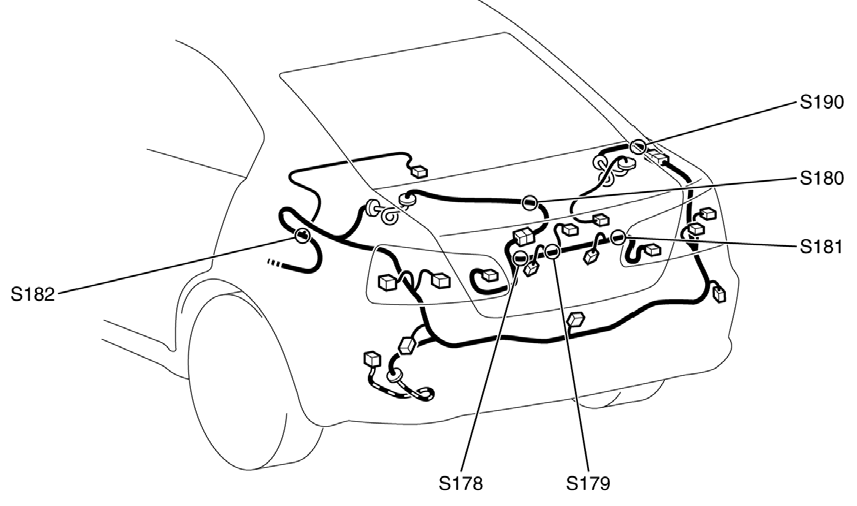

Fig 14: Luggage Compartment Overview

G00477924

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

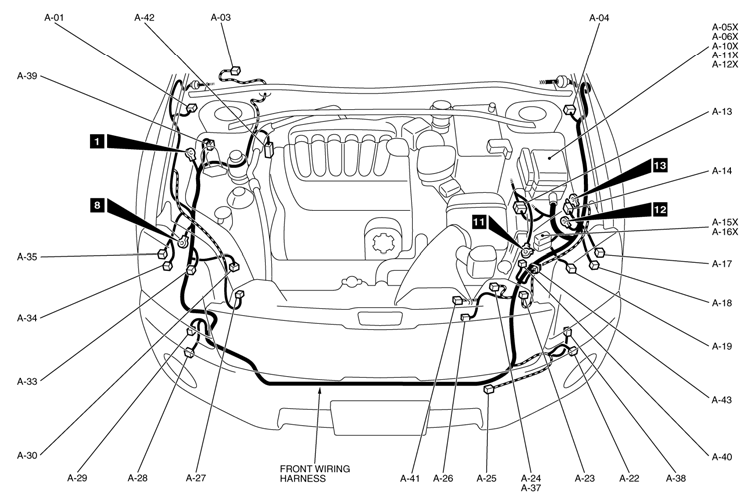

Fig 15: Engine Compartment

G00477925

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

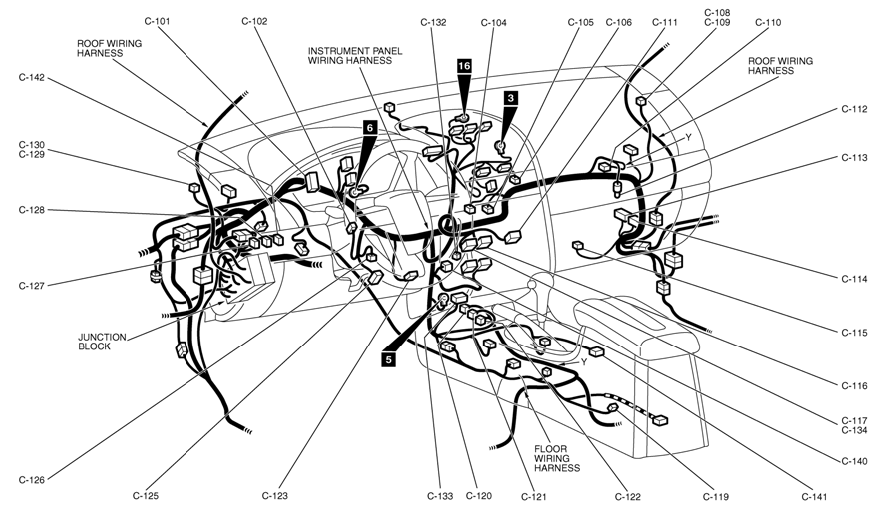

Fig 16: Dash

G00477926

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

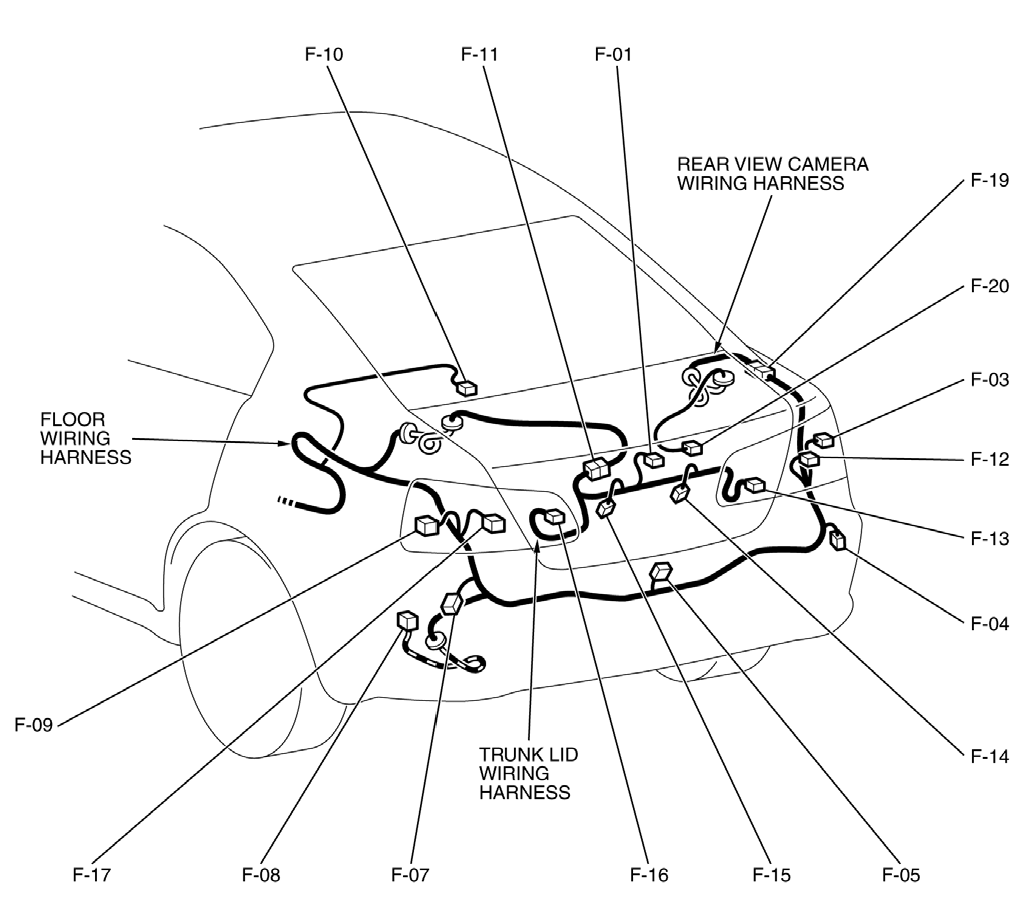

Fig 17: Rear Of Vehicle

G00477927

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Passenger & Engine Compartment

G00446311

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Front Passenger Compartment

G00446312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Engine Compartment & Dash

G00446332

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Engine Compartment & Dash

G00446333

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Engine Compartment & Grille

G00446344

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Vehicle Overview

G00446346

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

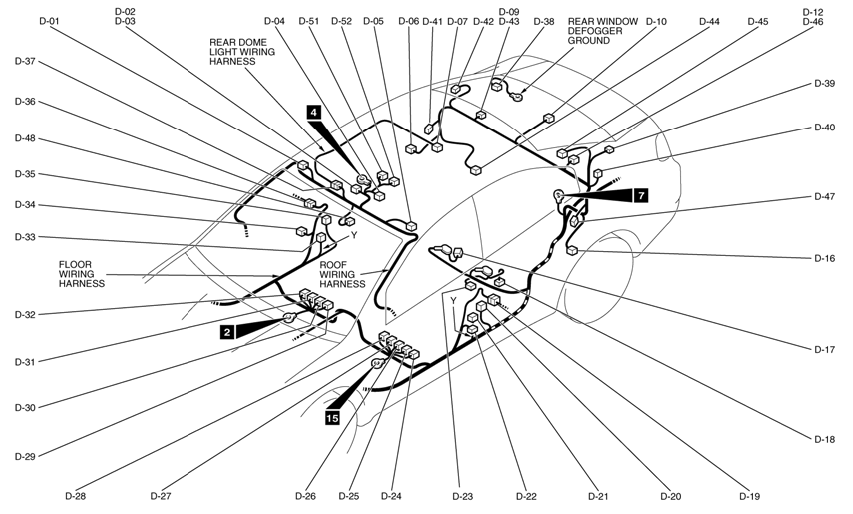

Fig 24: Body Overview

G00446347

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 25: Left Side Of Dash

G00270604

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 26: Engine Compartment

G00446349

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 27: Engine Compartment

G00478228

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 28: Engine Compartment & Dash

G00446338

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 29: Left Side Of Dash

G00446339

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

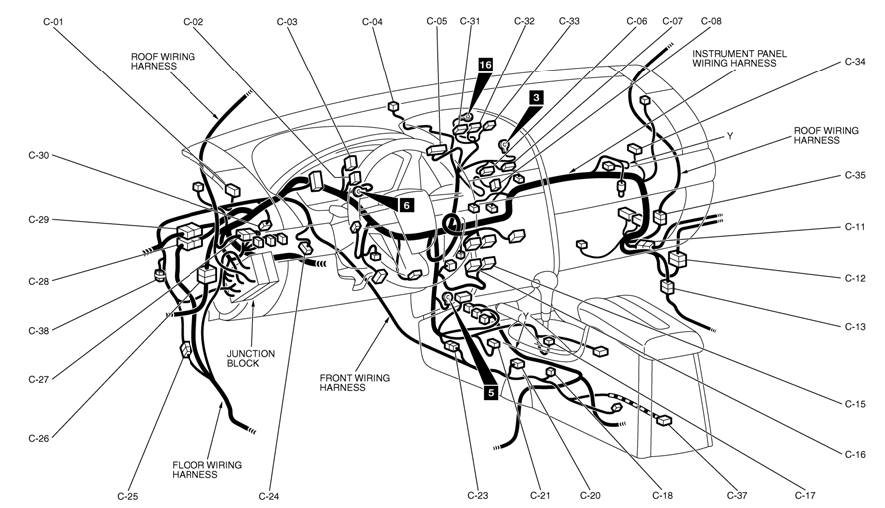

Fig 30: Dash & Console

G00478221

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

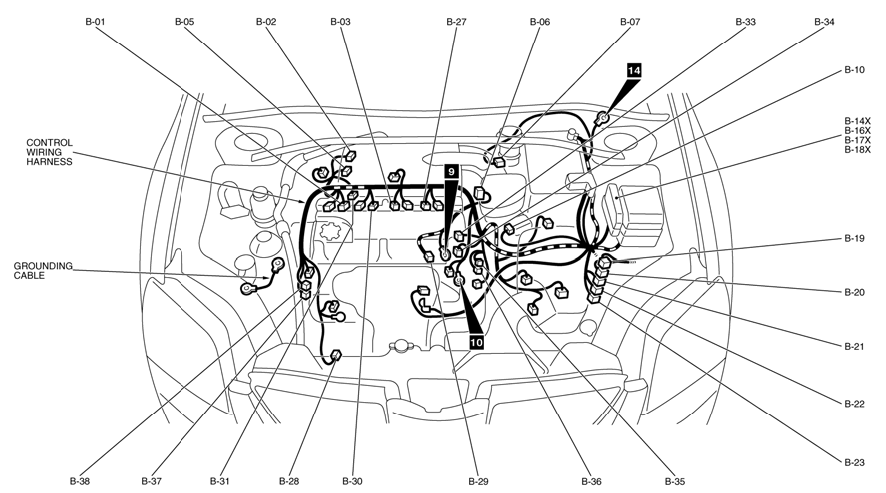

Fig 31: Engine Compartment

G00478223

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

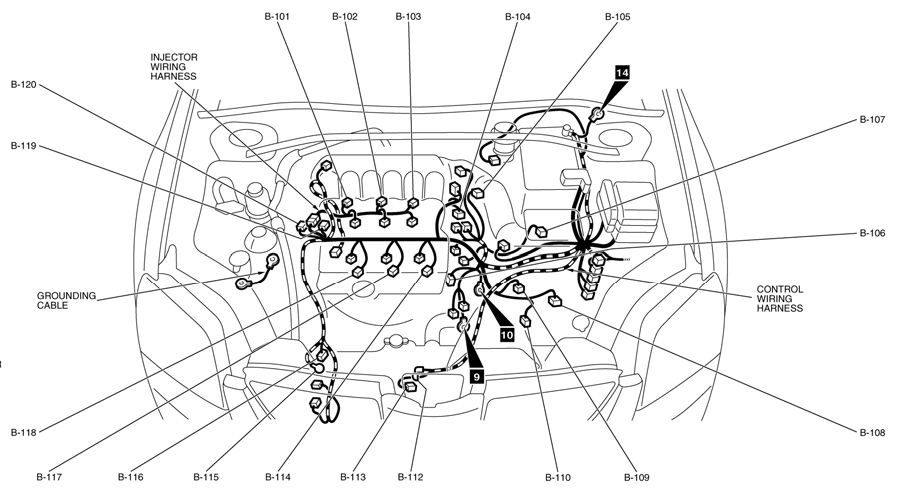

Fig 32: Engine Compartment

G00478224

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

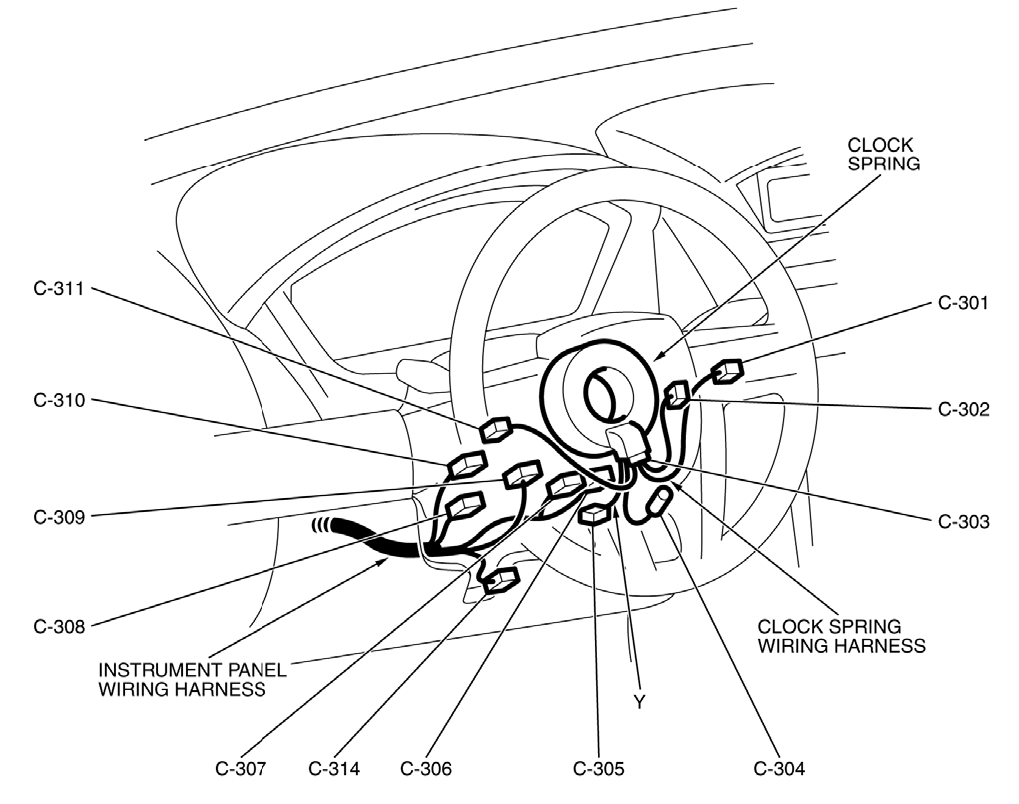

Fig 33: Steering Column

G00478225

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 34: Engine Compartment (3.8L)

G00446365

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 35: Engine (3.8L)

G00478229

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

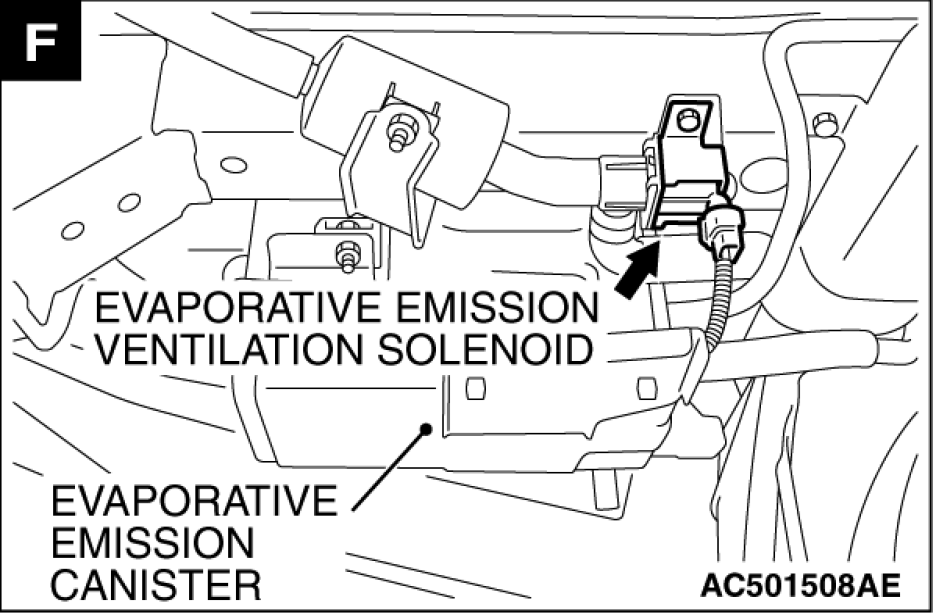

Fig 36: Engine Compartment

G00478230

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

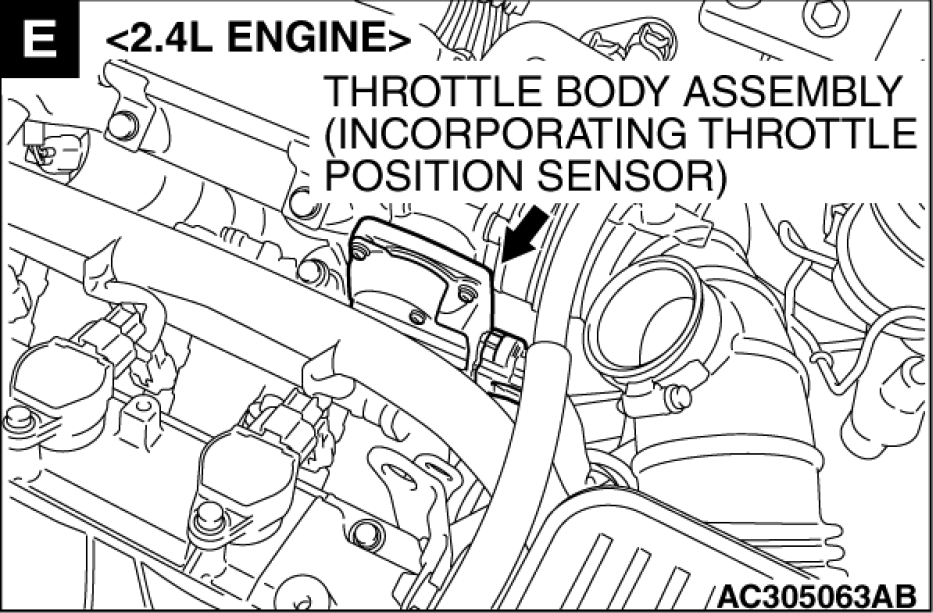

Fig 37: Engine Compartment (2.4L)

G00478231

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

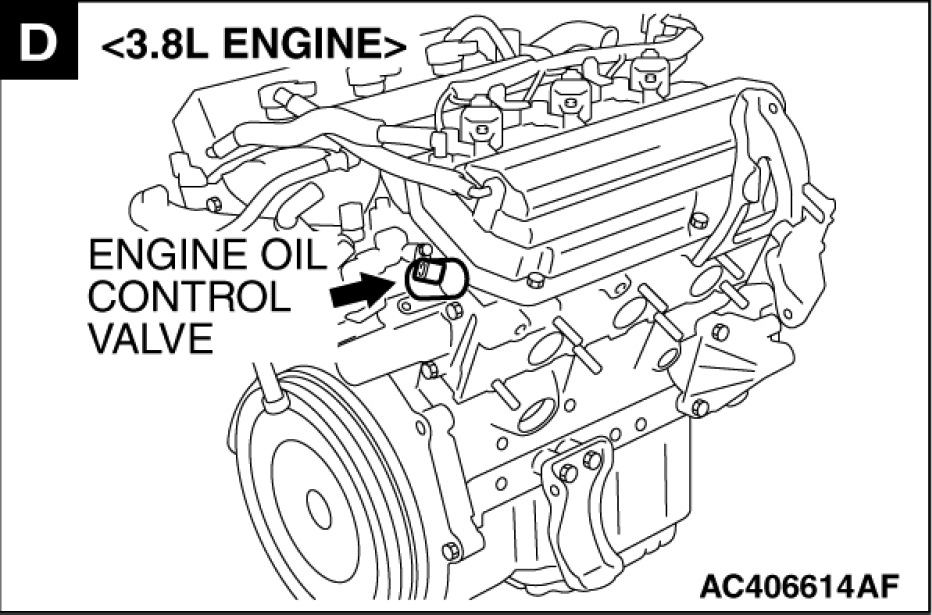

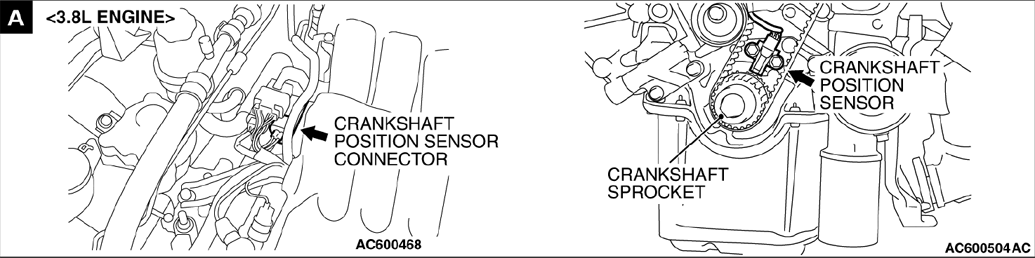

Fig 38: Engine (3.8L)

G00477930

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

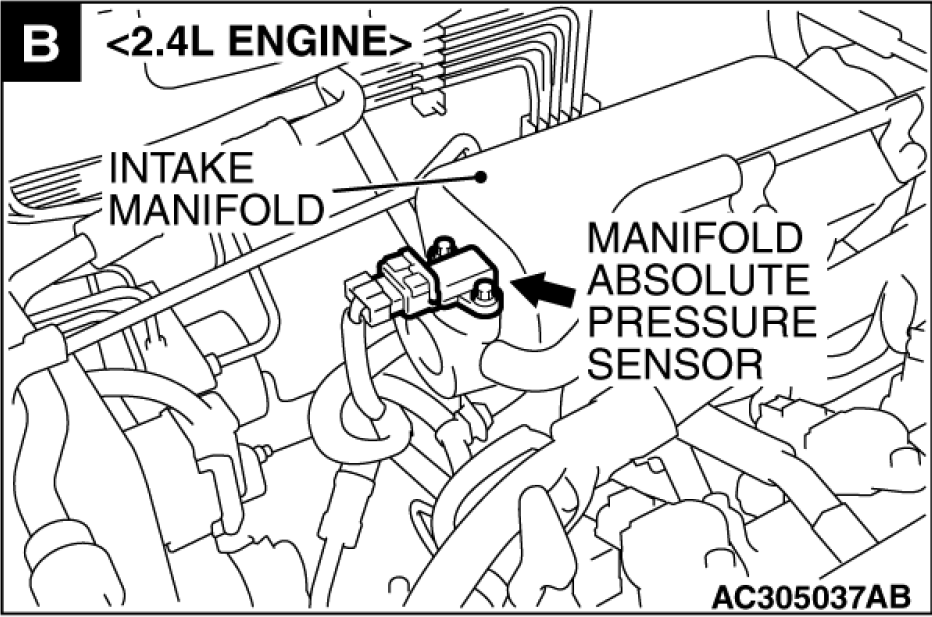

Fig 39: Engine Compartment (2.4L)

G00477931

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

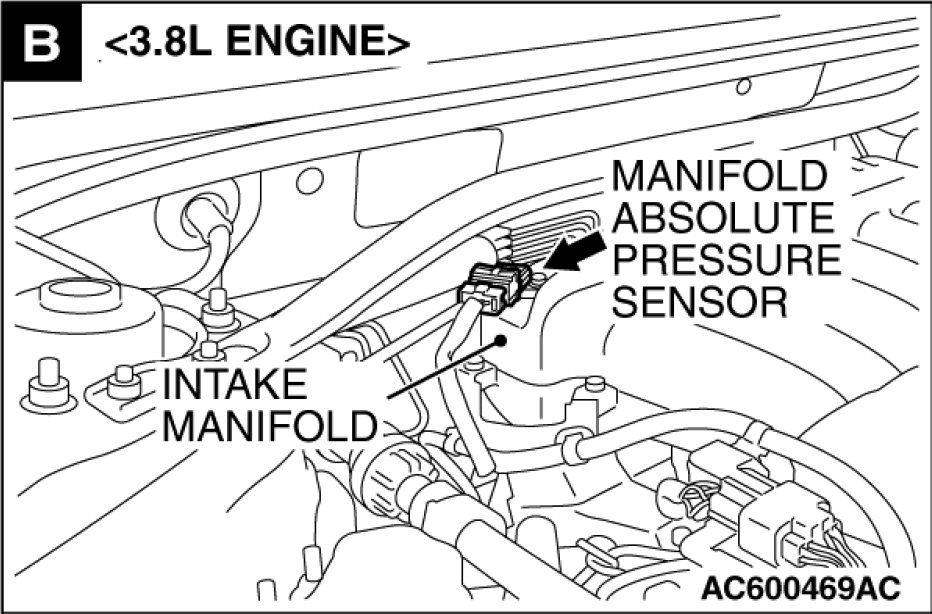

Fig 40: Engine Compartment (3.8L)

G00477932

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

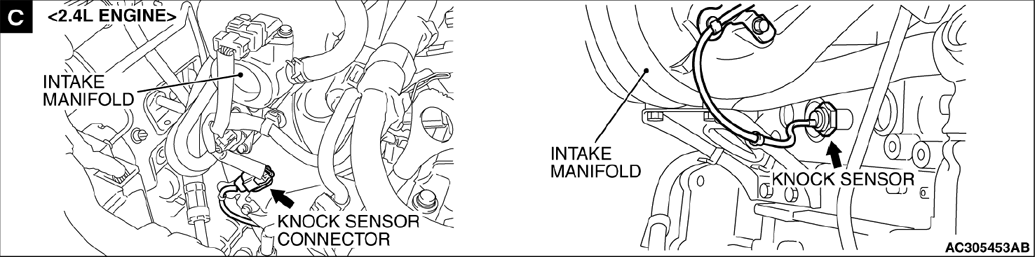

Fig 41: Engine Compartment (2.4L)

G00478197

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

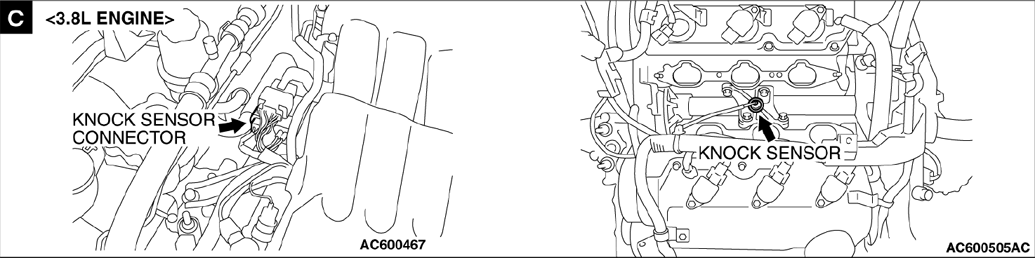

Fig 42: Engine Compartment (3.8L)

G00478198

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

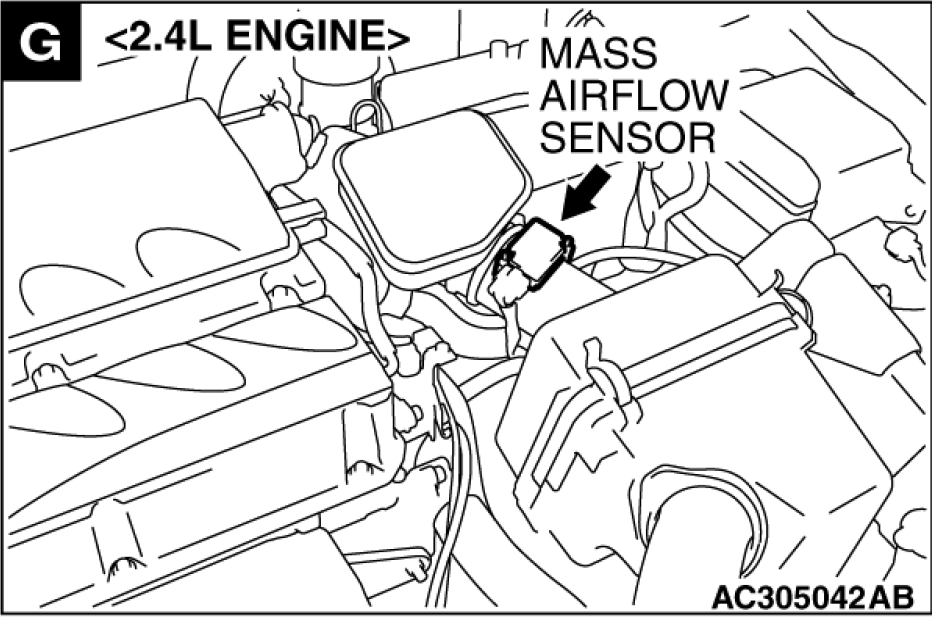

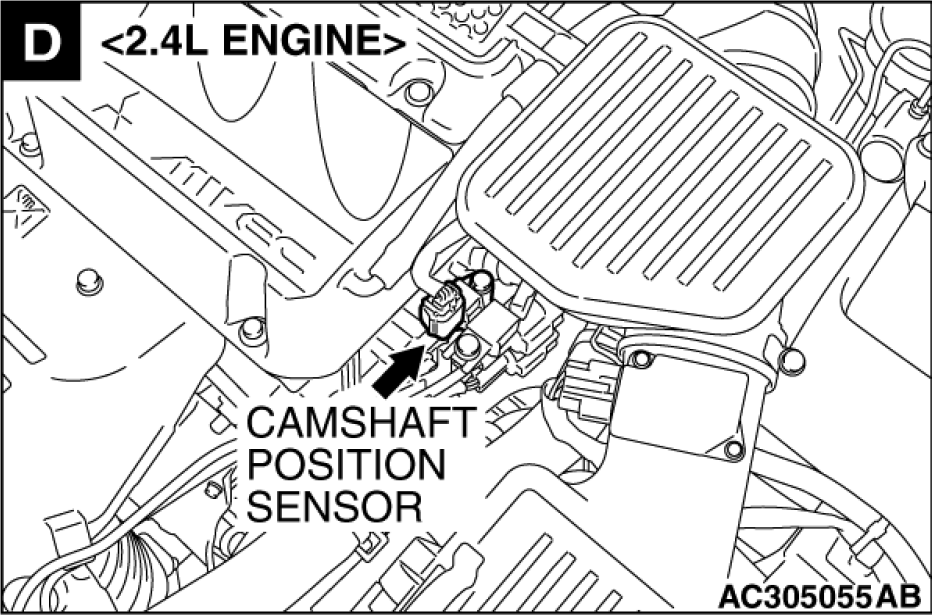

Fig 43: Engine Compartment (2.4L)

G00478199

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

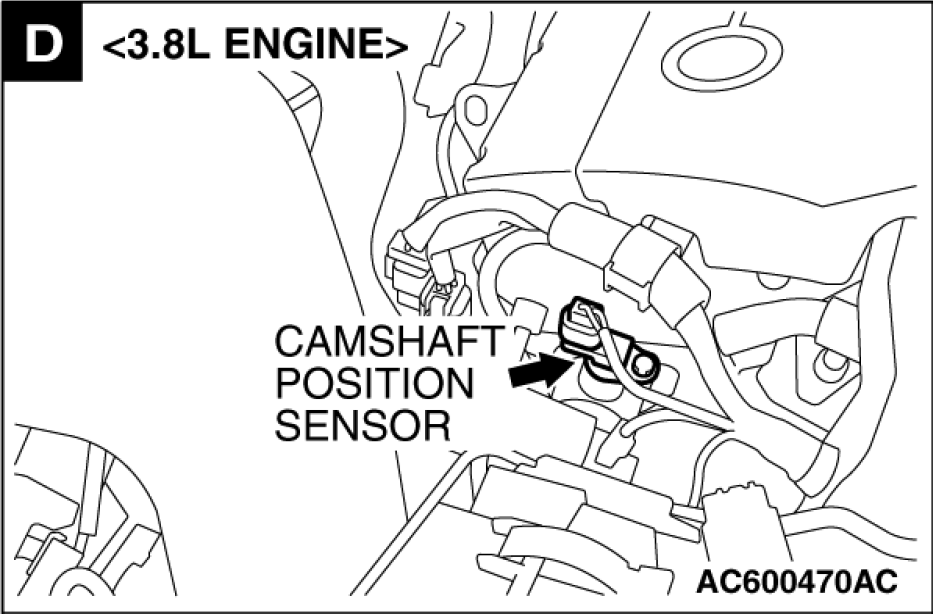

Fig 44: Engine Compartment (3.8L)

G00478200

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

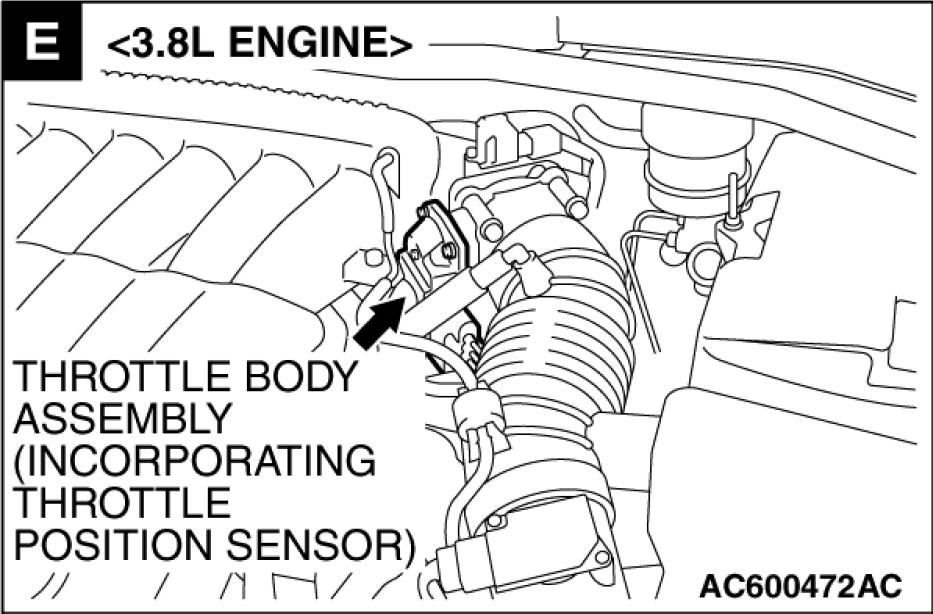

Fig 45: Engine Compartment (3.8L)

G00478201

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

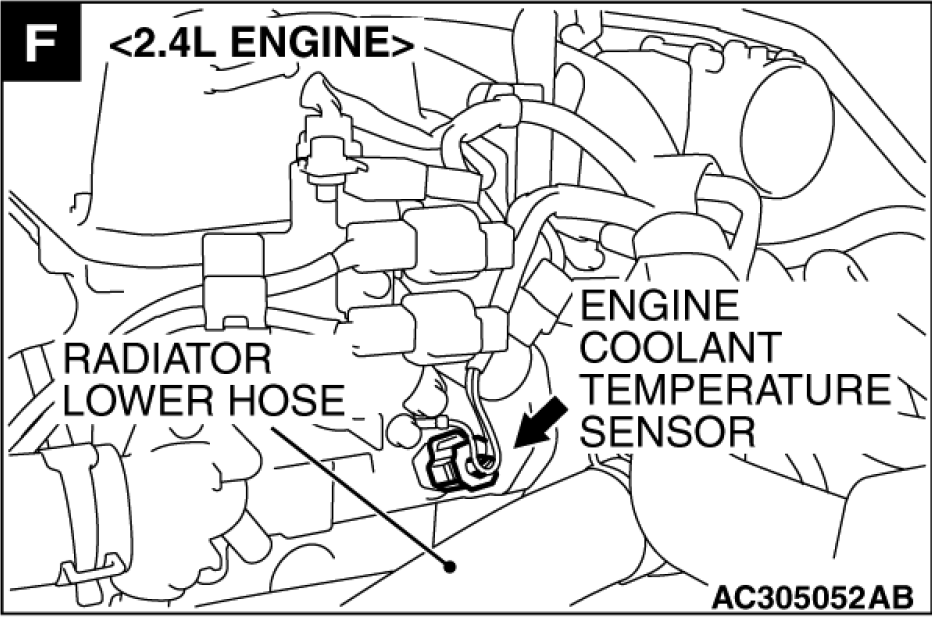

Fig 46: Engine Compartment (2.4L)

G00478202

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

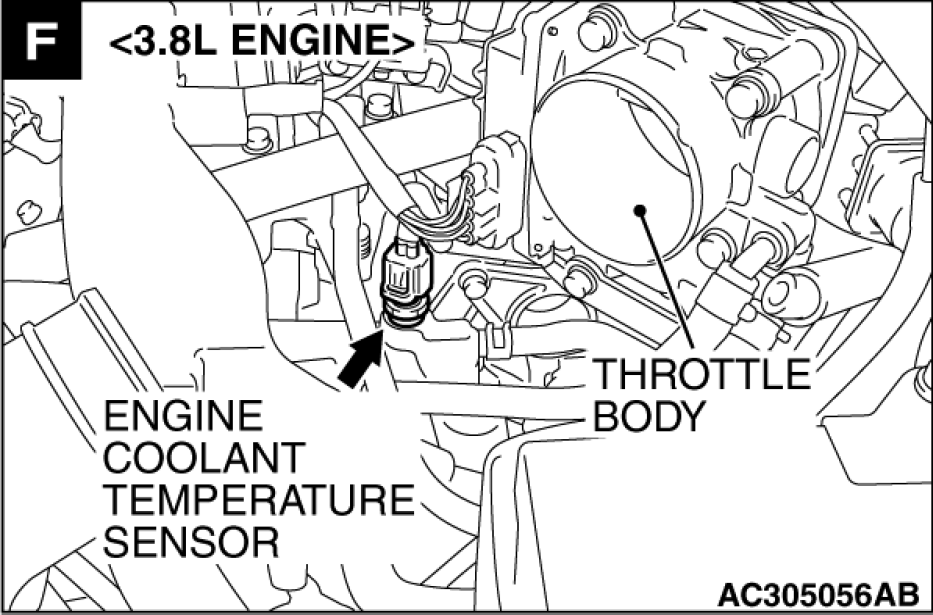

Fig 47: Engine Compartment (3.8L)

G00478203

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 48: Engine Compartment (2.4L)

G00478204

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 49: Engine Compartment (3.8L)

G00478205

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

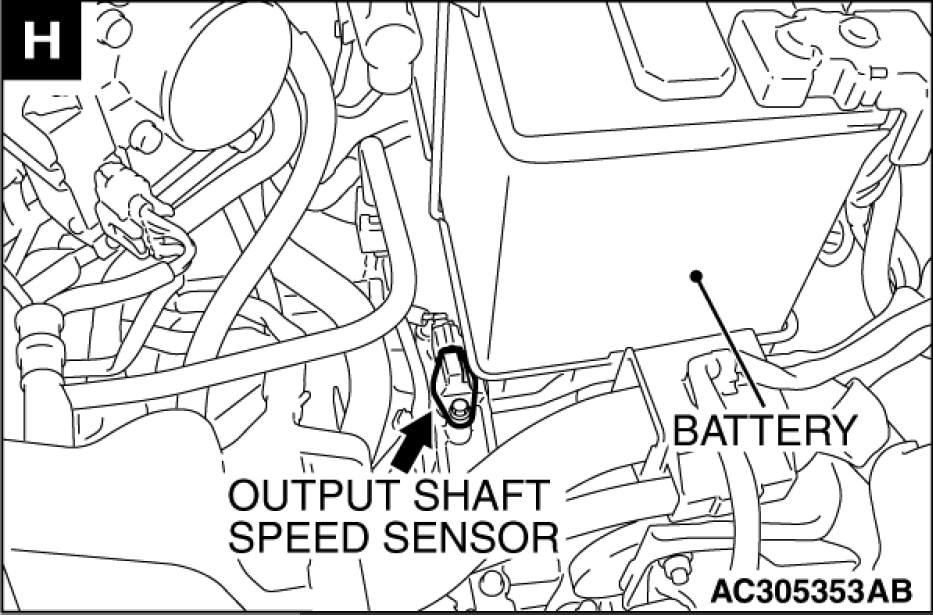

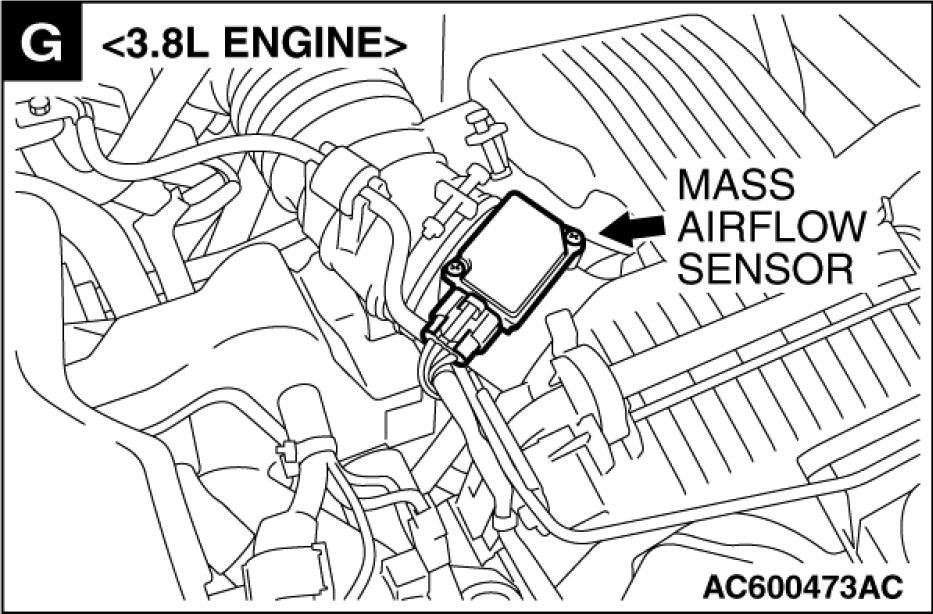

Fig 50: Engine Compartment

G00478206

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

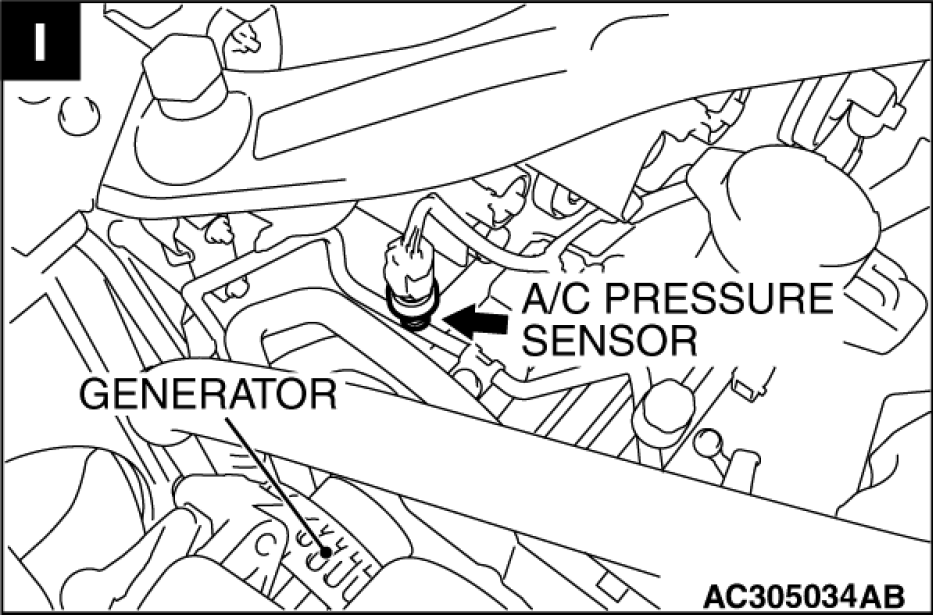

Fig 51: Engine Compartment

G00478207

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

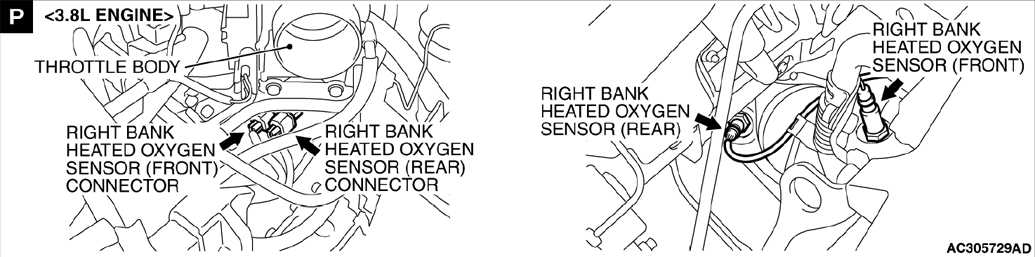

Fig 52: Engine Compartment (3.8L)

G00478208

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

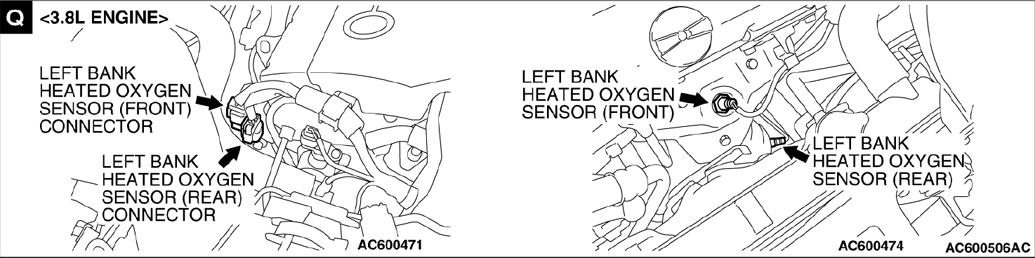

Fig 53: Engine Compartment (3.8L)

G00478209

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

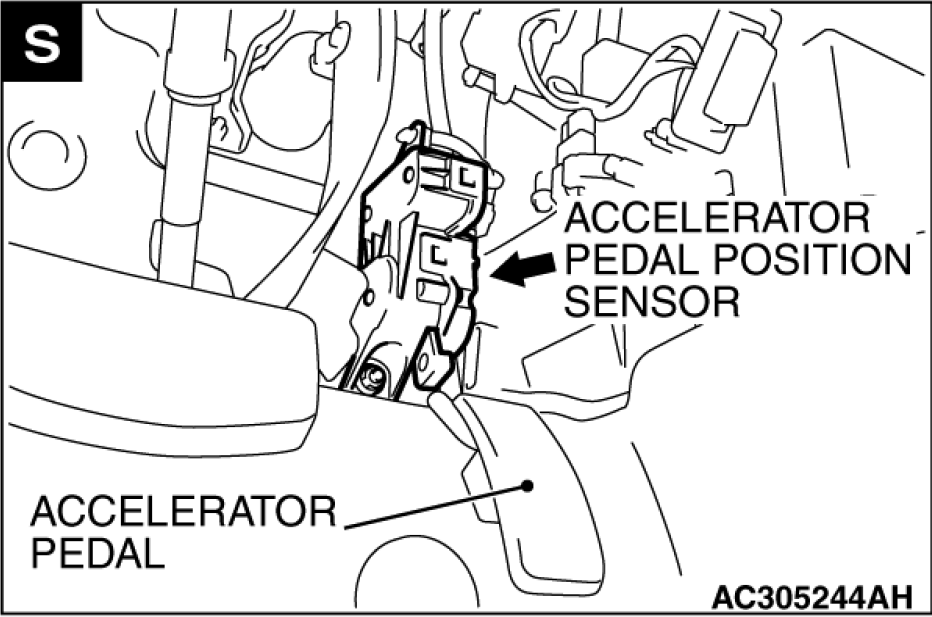

Fig 54: Dash

G00478210

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

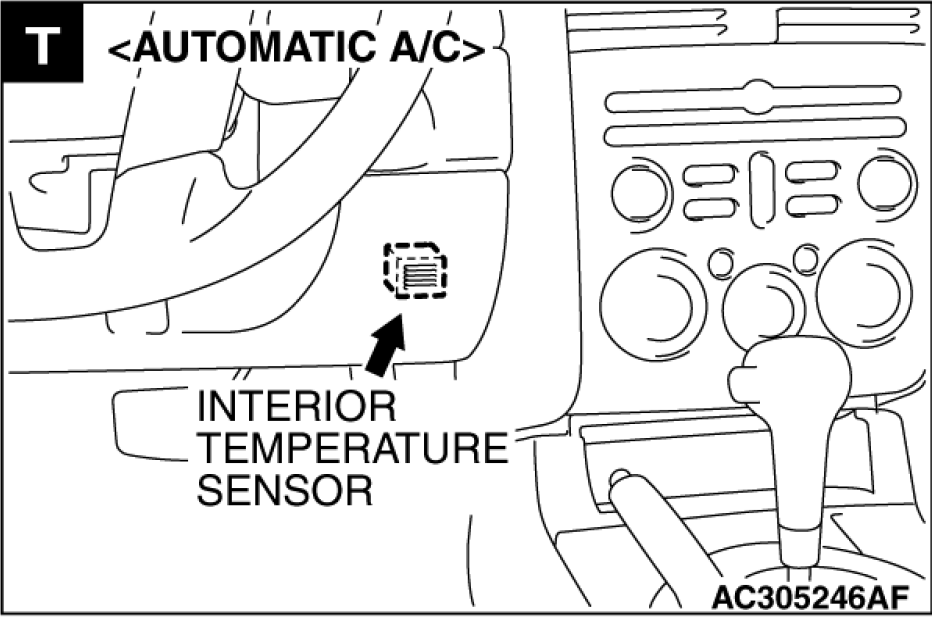

Fig 55: Dash

G00478211

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

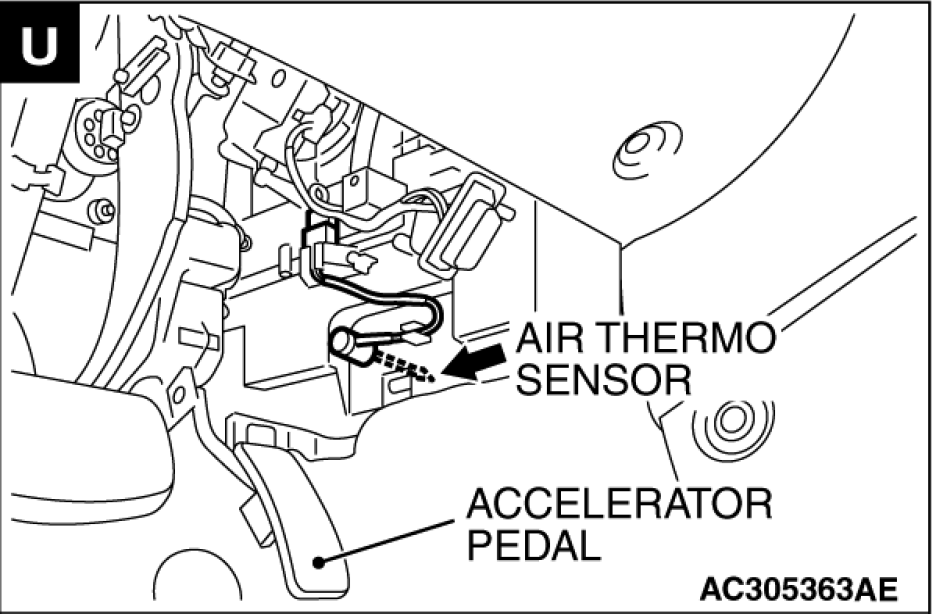

Fig 56: Left Side Of Dash

G00478212

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

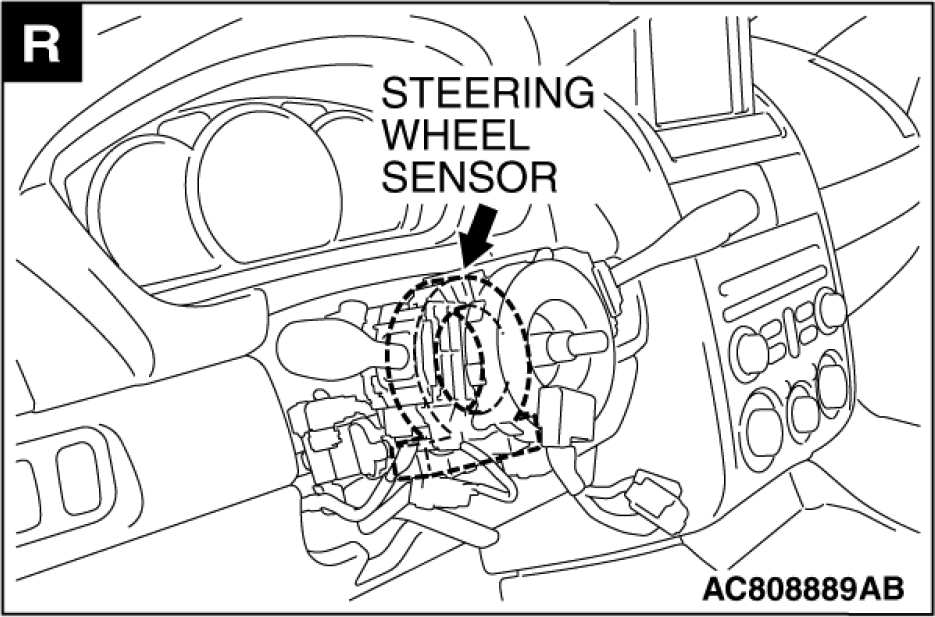

Fig 57: Steering Wheel

G00478213

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

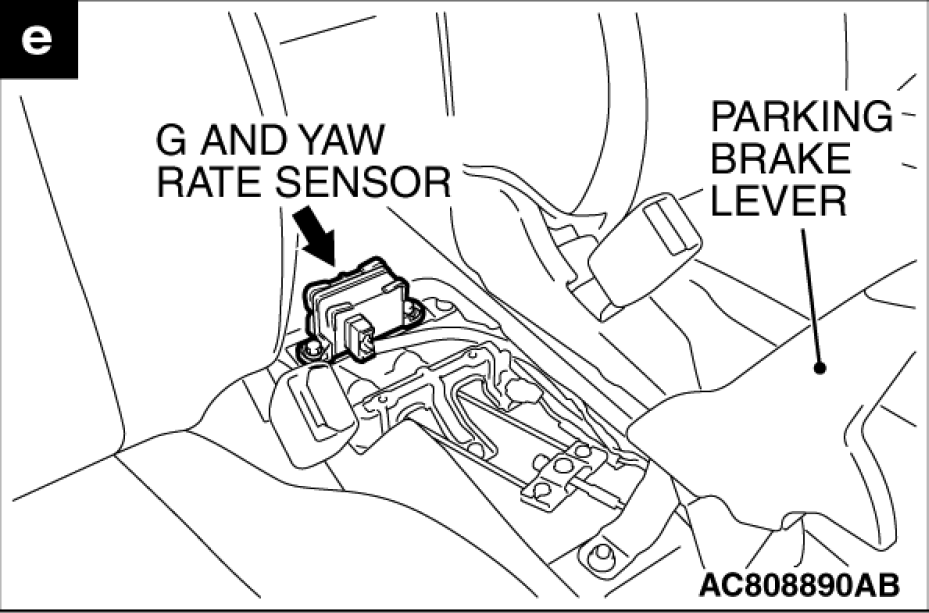

Fig 58: Center Console

G00478214

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

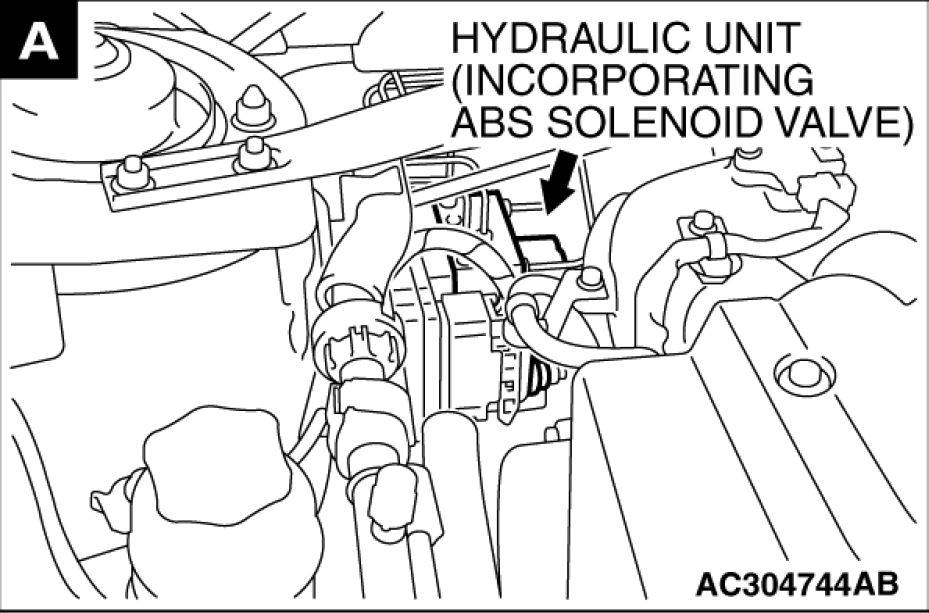

Fig 59: Engine Compartment

G00478215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

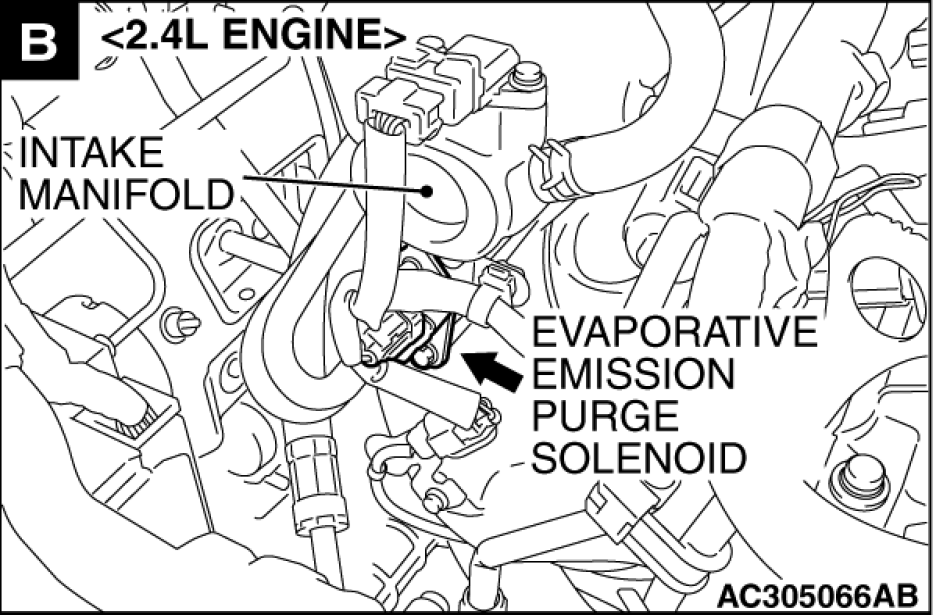

Fig 60: Engine Compartment (2.4L)

G00478216

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

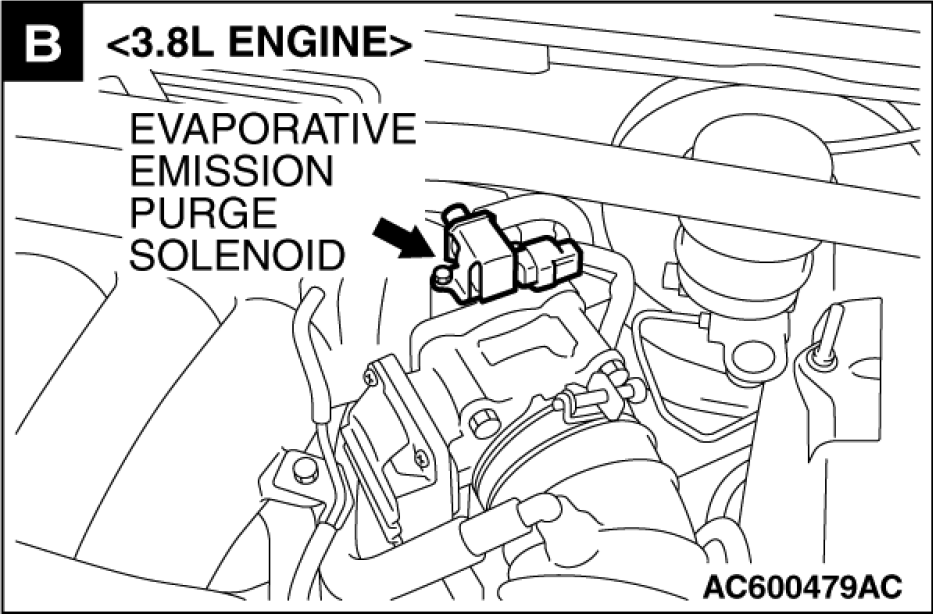

Fig 61: Engine Compartment (3.8L)

G00478217

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

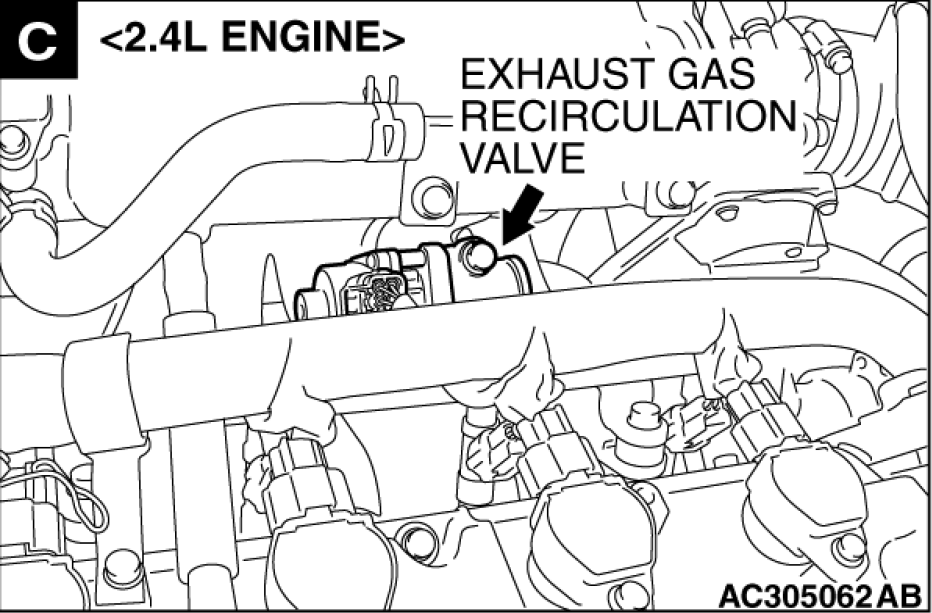

Fig 62: Engine Compartment (2.4L)

G00478218

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

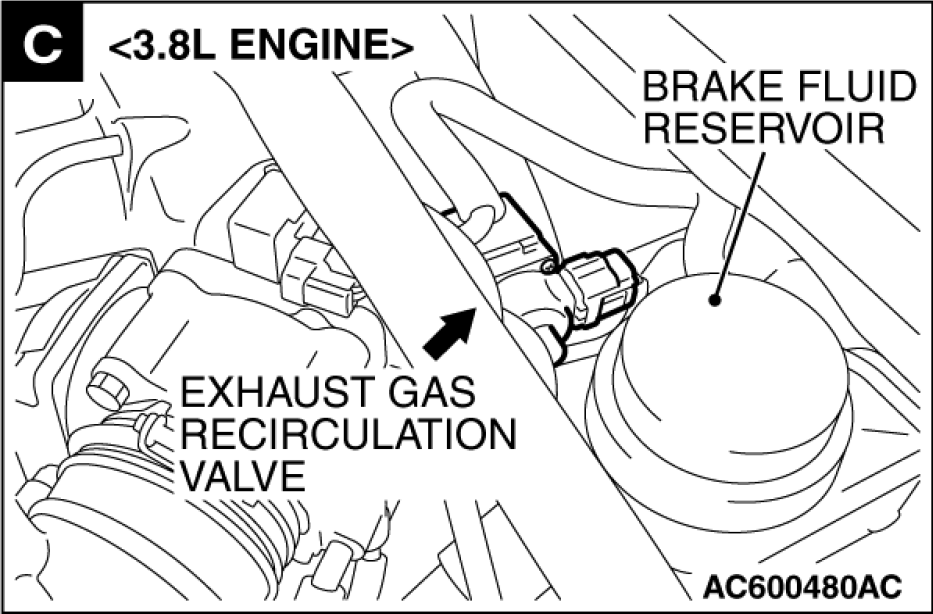

Fig 63: Engine Compartment (3.8L)

G00478219

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

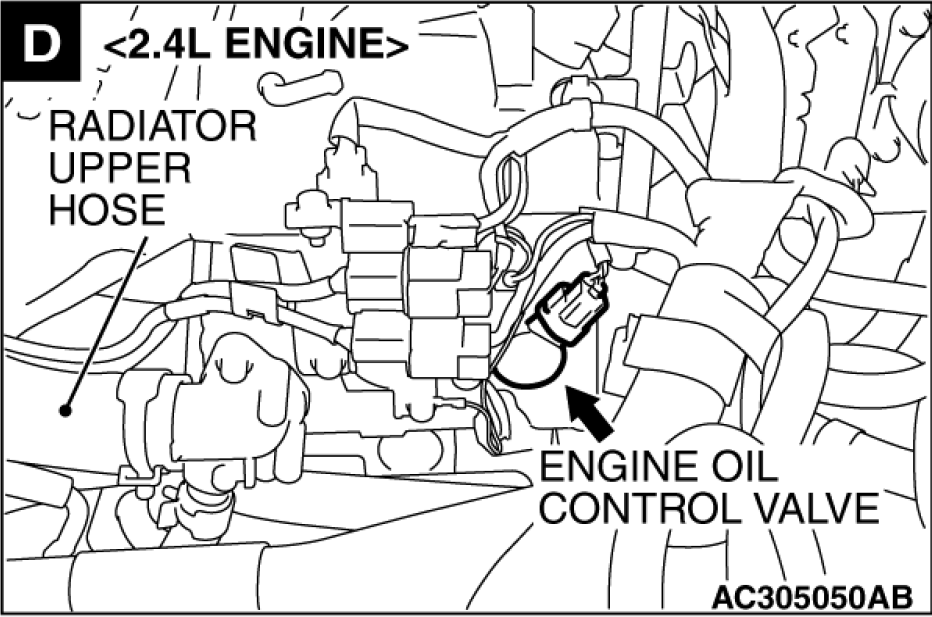

Fig 64: Engine Compartment (2.4L)

G00478220

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

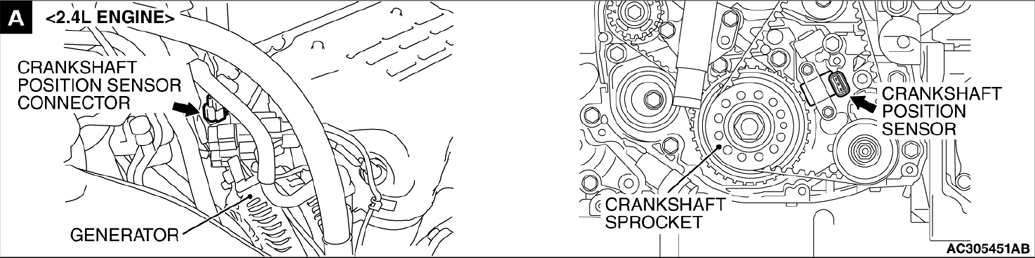

Fig 65: Engine Compartment (2.4L)

G00477929

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
