OEM Component Locations: Grounding

Fig 1: Locating Wiring Harness And Ground Points

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 16 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

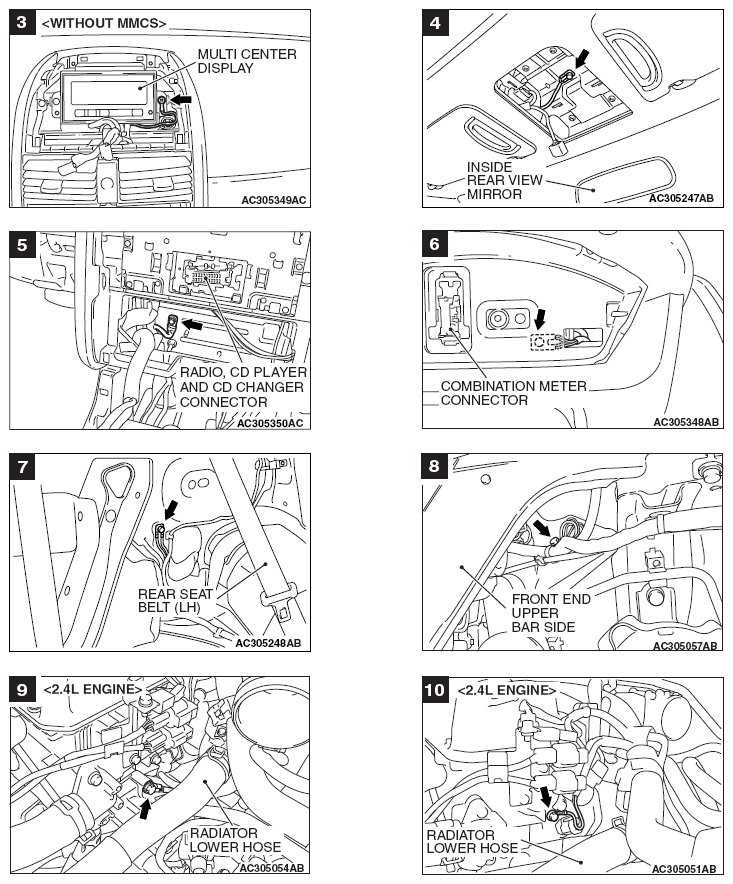

Fig 2: Locating Ground Points (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

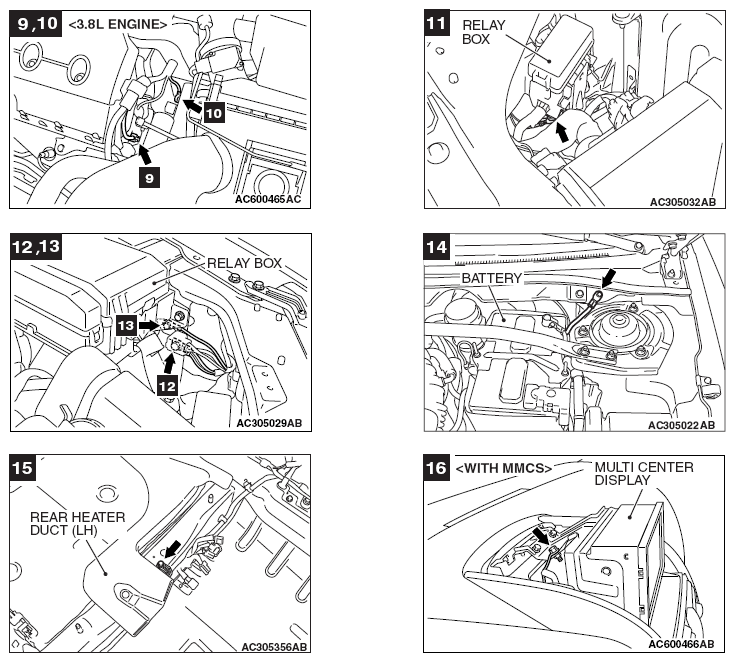

Fig 3: Locating Ground Points (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
