Reduction Gear Sub-Assembly: Assembly: Notes

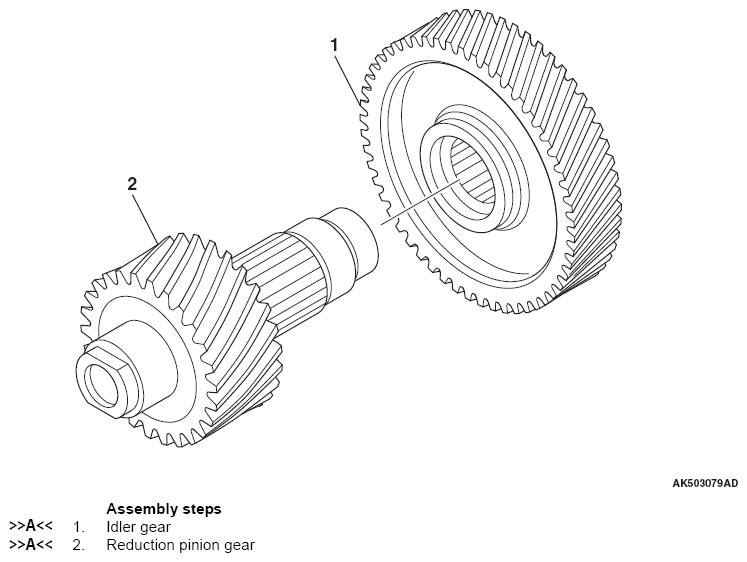

Fig 1: Identifying Idler Gear And Reduction Pinion Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: The reduction gear sub-assembly can only be assembled, not disassembled.

Required special tools:
