Disassembly And Assembly (2.0L Engine Turbo): Notes

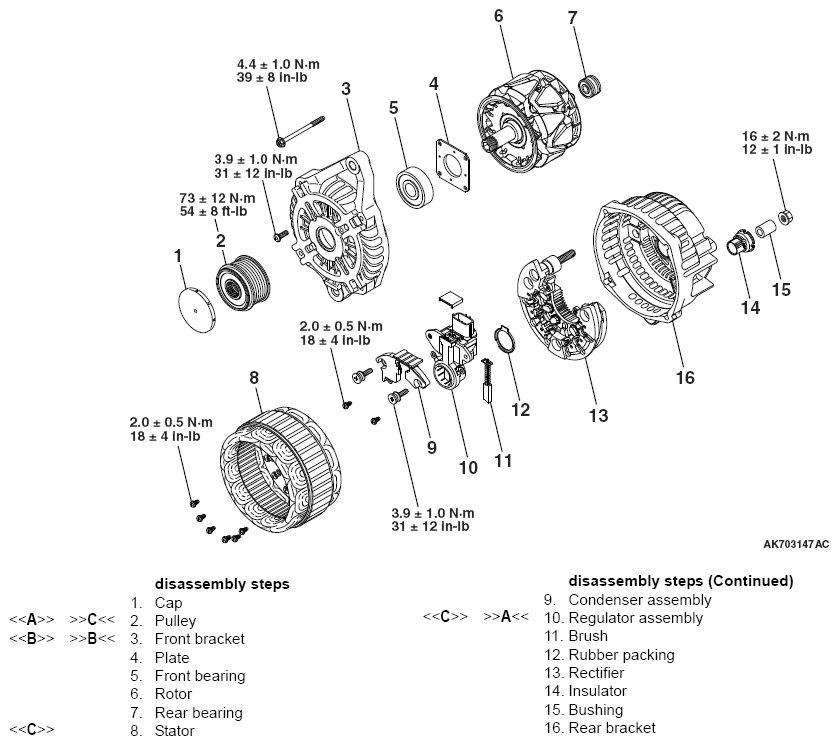

Fig 1: Exploded View Of Charging System Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992226: Serration Socket
