Accelerator Pedal
›
Removal And Installation
Removal And Installation

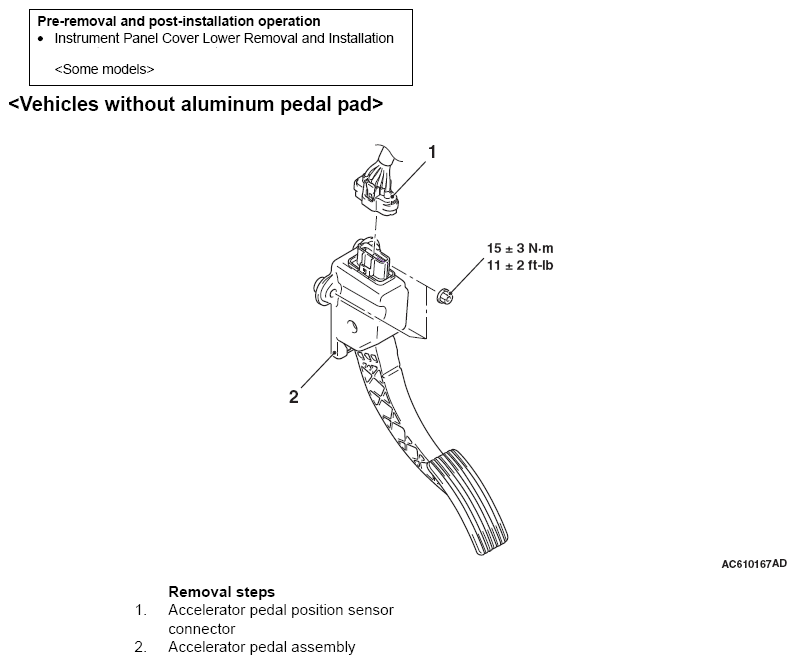

Fig 1: Accelerator Pedal Assembly And Accelerator Pedal Position Sensor With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

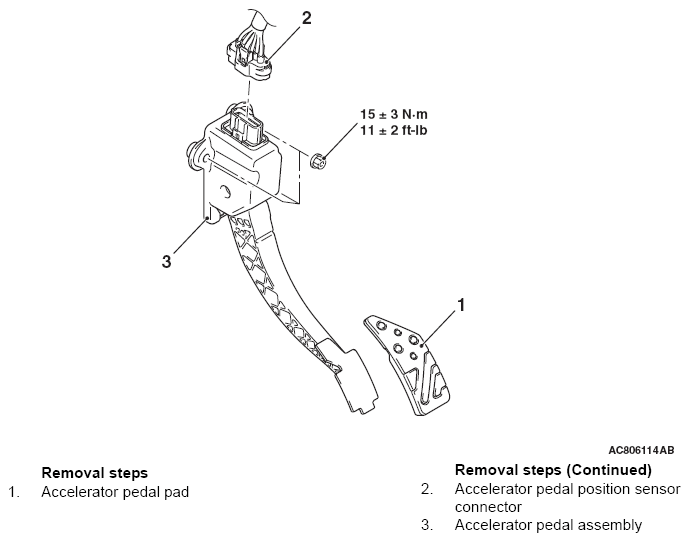

Fig 2: Accelerator Pedal Assembly And Accelerator Pedal Position Sensor Connector With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
