System Diagram: (Turbo)

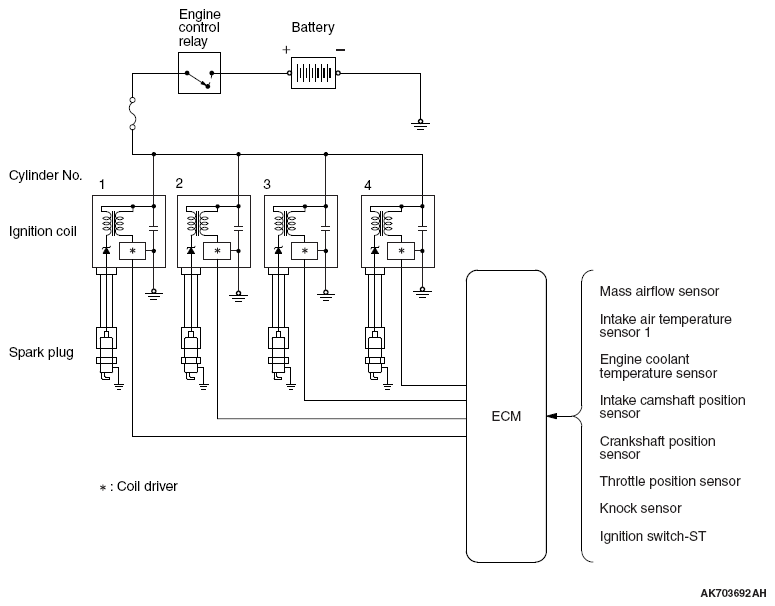

Fig 1: Ignition System Circuit Diagram (Turbo)
G06671937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
