(2.0L Engine Non-Turbo)

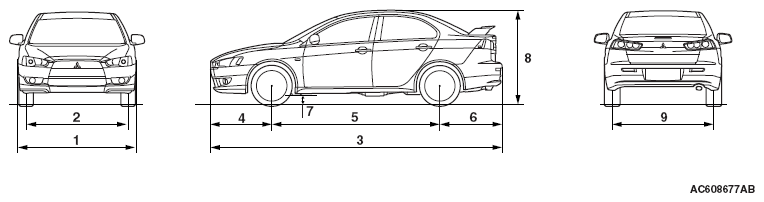

VEHICLE DIMENSION SPECIFICATION
| Item | CY4AS | |||
|---|---|---|---|---|
| NLHL2M/3M/7M | TLHL2M/3M/7M | |||
| Vehicle dimension mm (in) | Overall width | 1 | 1,760 (69.4) | 1,760 (69.4) |
| Tread-front | 2 | 1,530 (60.2) | 1,530 (60.2) | |
| Overall length | 3 | 4,570 (180.0) | 4,570 (180.0) | |
| Overhang-front | 4 | 955 (37.6) | 955 (37.6) | |
| Wheelbase | 5 | 2,635 (103.7) | 2,635 (103.7) | |
| Overhang-rear | 6 | 980 (38.7) | 980 (38.7) | |
| Ground clearance | 7 | 147 (5.8) | 147 (5.8) | |
| Overall height (unladen) | 8 | 1,490 (58.7) | 1,490 (58.7) | |
| Tread-rear | 9 | 1,530 (60.2) | 1,530 (60.2) | |
| Vehicle weight kg (lb) | Curb weight | 1,320 (2,911) | 1,350 (2,977) | |
| Gross vehicle weight rating | 1,850 (4,079) | 1,850 (4,079) | ||
| Gross axle weight rating-front | 1,010 (2,227) | 1,010 (2,227) | ||
| Gross axle weight rating-rear | 910 (2,007) | 910 (2,007) | ||
| Seating capacity | 5 | 5 | ||
| Engine | Model No. | 4B11 | 4B11 | |
| Piston displacement cm3 (cu in) | 1,998 (121.9) | 1,998 (121.9) | ||
| Maximum output kW/r/min (HP/r/min) | 113/6,000 (152/6,000) <Except California>, 107/6,000 (143/6,000) <California> | 113/6,000 (152/6,000) <Except California>, 107/6,000 (143/6,000) <California> | ||
| Maximum torque N.m/r/min (ft-lb/r/min) | 198/4,250 (146/4,250) <Except California>, 194/4,250 (143/4,250) <California> | 198/4,250 (146/4,250) <Except California>, 194/4,250 (143/4,250) <California> | ||
| Fuel system | Fuel supply system | MFI | MFI | |
| Transaxle | Model No. | F5MBB | F1CJA | |
| Type | 5M/T | CVT | ||
| Turning radius m (ft) | 5.0 (16.4) | 5.0 (16.4) | ||
| Vehicle dimension mm (in) | Overall width | 1 | 1,760 (69.4) | 1,760 (69.4) |
| Tread-front | 2 | 1,530 (60.2) | 1,530 (60.2) | |
| Overall length | 3 | 4,570 (180.0) | 4,570 (180.0) | |
| Overhang-front | 4 | 955 (37.6) | 955 (37.6) | |
| Wheelbase | 5 | 2,635 (103.7) | 2,635 (103.7) | |
| Overhang-rear | 6 | 980 (38.7) | 980 (38.7) | |
| Ground clearance | 7 | 147 (5.8) | 147 (5.8) | |
| Overall height (unladen) | 8 | 1,490 (58.7) | 1,490 (58.7) | |
| Tread-rear | 9 | 1,530 (60.2) | 1,530 (60.2) | |
| Vehicle weight kg (lb) | Curb weight | 1,325 (2,922) | 1,355 (2,988) | |
| Gross vehicle weight rating | 1,850 (4,079) | 1,850 (4,079) | ||
| Gross axle weight rating-front | 1,010 (2,227) | 1,010 (2,227) | ||
| Gross axle weight rating-rear | 910 (2,007) | 910 (2,007) | ||
| Seating capacity | 5 | 5 | ||
| Engine | Model No. | 4B11 | 4B11 | |
| Piston displacement cm3 (cu in) | 1,998 (121.9) | 1,998 (121.9) | ||
| Maximum output kW/r/min (HP/r/min) | 113/6,000 (152/6,000) <Except California>, 107/6,000 (143/6,000) <California> | 113/6,000 (152/6,000) <Except California>, 107/6,000 (143/6,000) <California> | ||
| Maximum torque N.m/r/min (ft-lb/r/min) | 198/4,250 (146/4,250) <Except California>, 194/4,250 (143/4,250) <California> | 198/4,250 (146/4,250) <Except California>, 194/4,250 (143/4,250) <California> | ||
| Fuel system | Fuel supply system | MFI | MFI | |
| Transaxle | Model No. | F5MBB | F1CJA | |
| Type | 5M/T | CVT | ||
| Turning radius m (ft) | 5.0 (16.4) | 5.0 (16.4) | ||
