Removal And Installation
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in
AIR BAG MODULE AND CLOCK SPRING
<Except for RALLIART> DRIVER'S AIR BAG MODULE AND CLOCK SPRING
<RALLIART>.

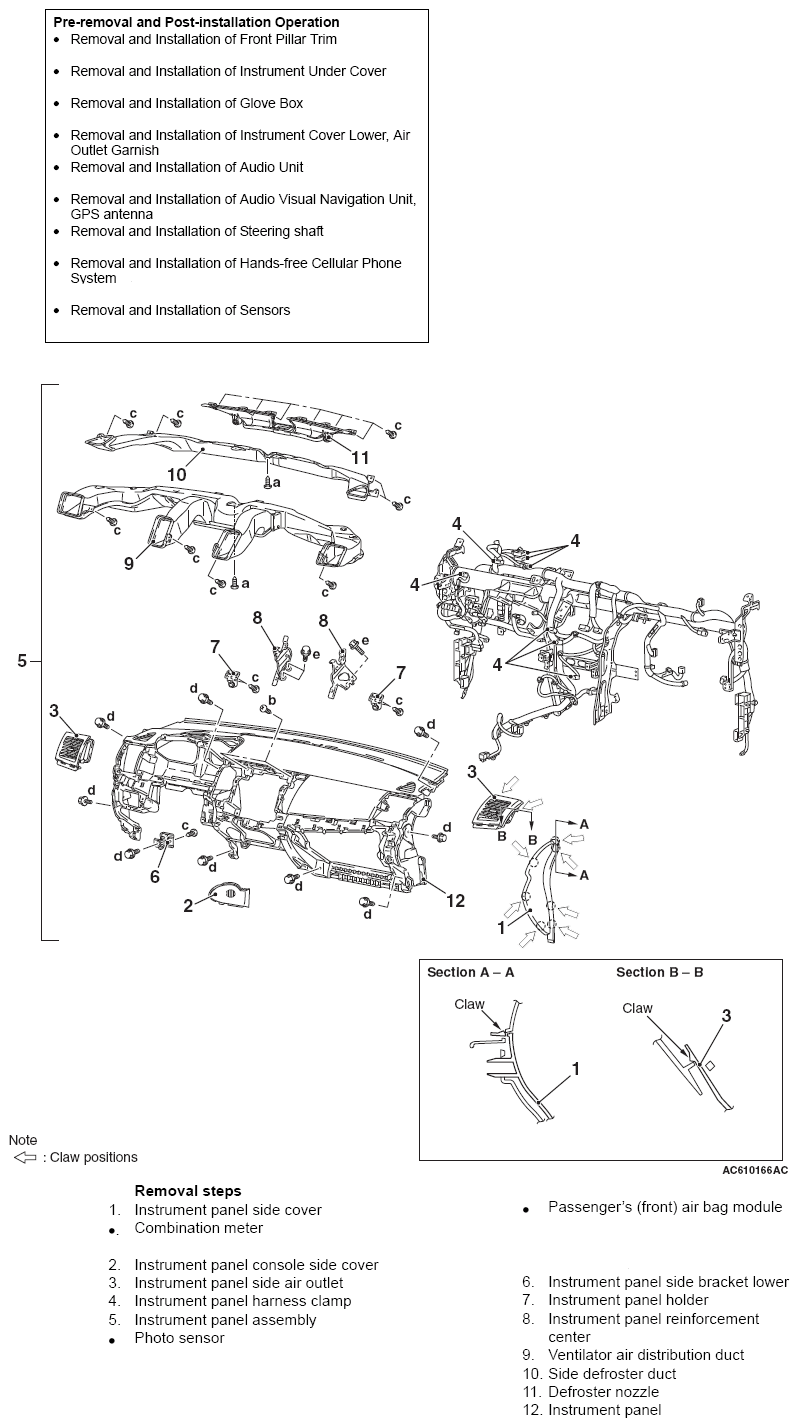

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."
INSTRUMENT PANEL ASSEMBLY SPECIFICATION CHART
| Name | Symbol | Size (D x L) mm | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 x 12 | - | |
| b | 5 x 16 | - | ||
| c | 5 x 12 | - | ||
| Bolt with washer | d | 5 x 20 | - | |
| e | 6 x 16 | - | ||
| D: Thread diameter, L: Effective thread length | ||||
CAUTION:
- Refer to SRS SERVICE PRECAUTIONS and Air bag ModulePASSENGER'S (FRONT) AIR BAG MODULE and CLOCK SPRING before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
