Disassembly And Assembly: Notes

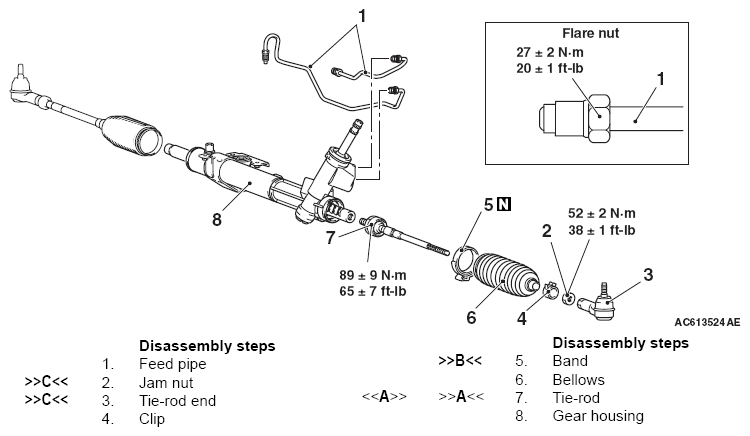

Fig 1: Exploded View Of Power Steering Gear Box And Linkage With Torque Specifications
G06673026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
