DTC P1723: Abnormality in Speed Sensor System Function: Notes

WARNING: This page is about a different variant/trim than selected.

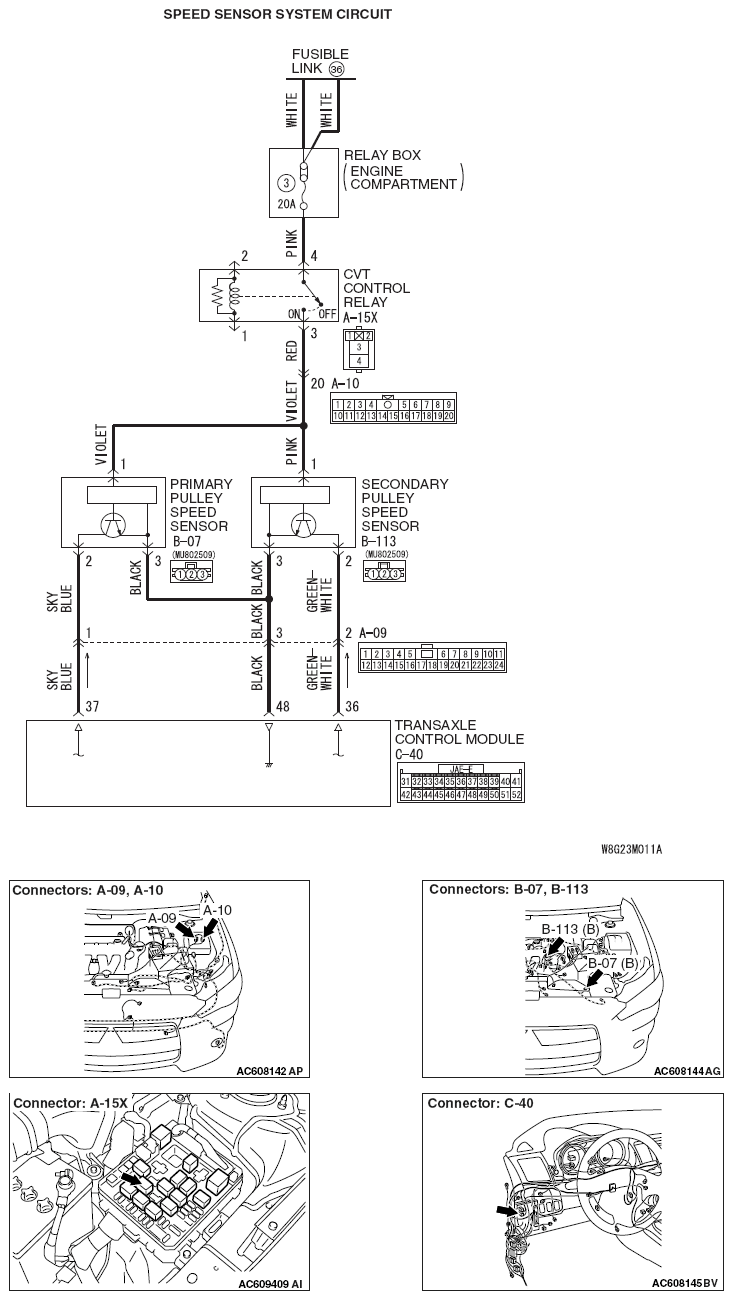

Fig 1: Speed Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
