Section 17 (Wireless Control Module (WCM) - Lancer)
›
Diagnosis
›
Id Codes Registration Judgment Table
›
Registration flow chart
Registration flow chart
WARNING:
This page is about a different variant/trim than selected.

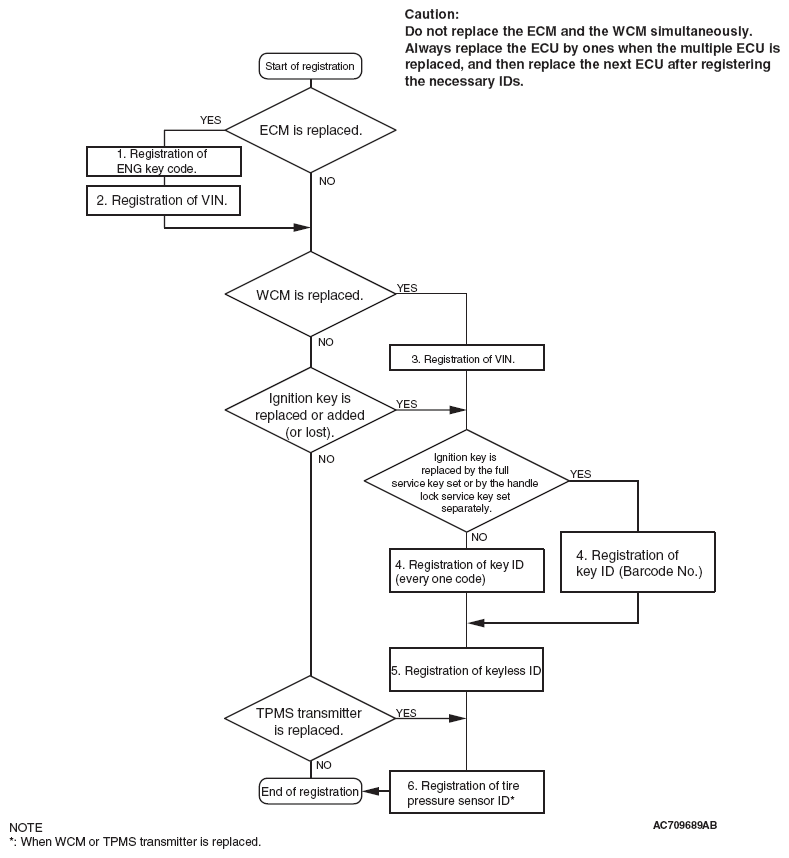

Fig 1: Wireless Control Module - Registration Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
