Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

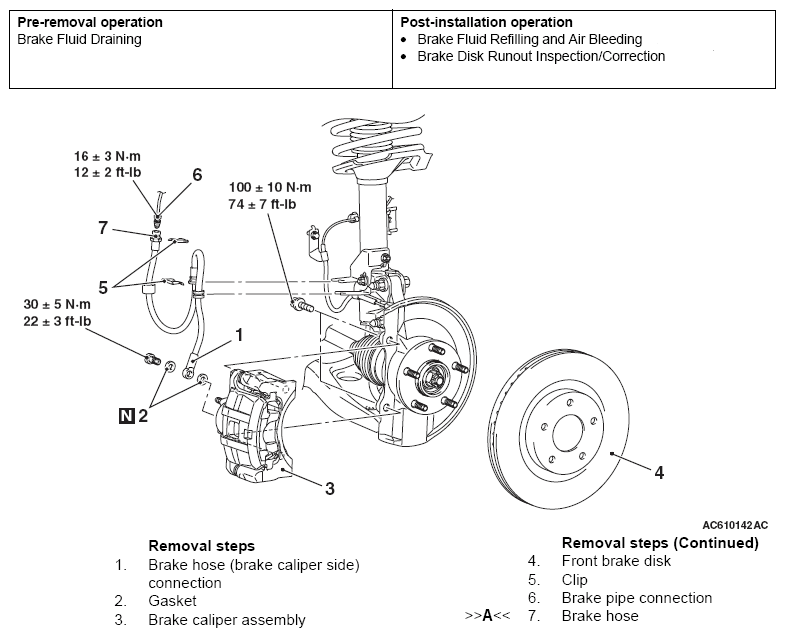

Fig 1: Front Disc Brake Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
