Headlight Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: For additional service information, refer to TSB HEADLIGHT REMOVAL AND INSTALLATION - SERVICE MANUAL REVISION .

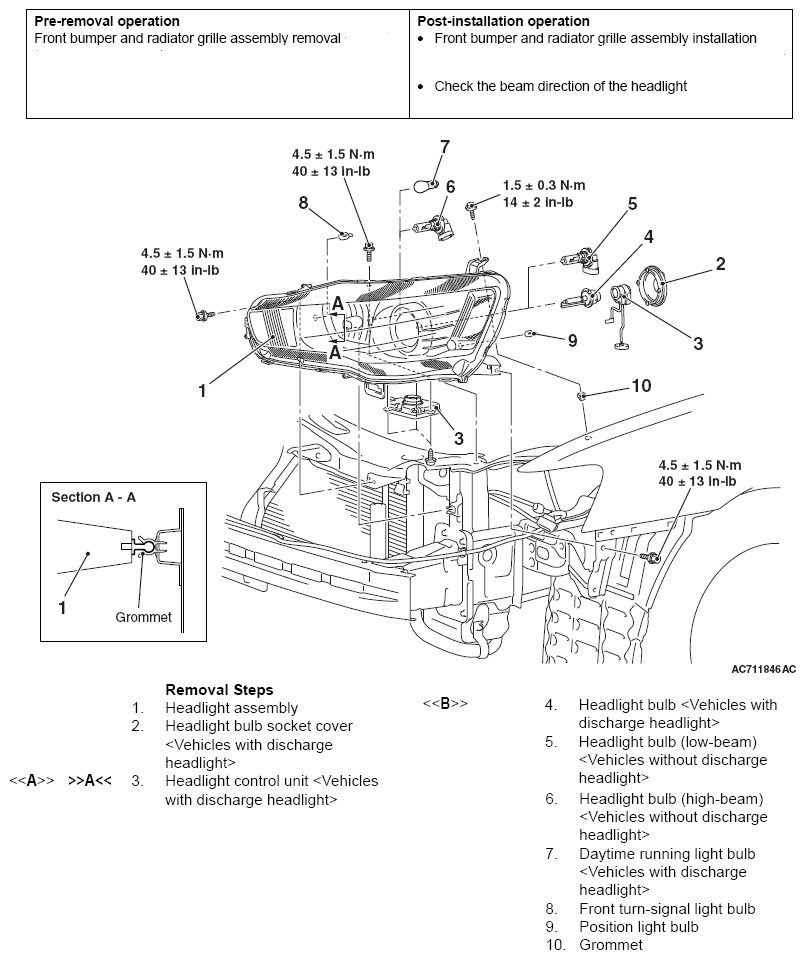

Fig 1: Headlight Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
