Engine Overhaul -- Lancer Evolution
›
Timing Chain
›
Removal And Installation
›
Notes
Removal And Installation: Notes

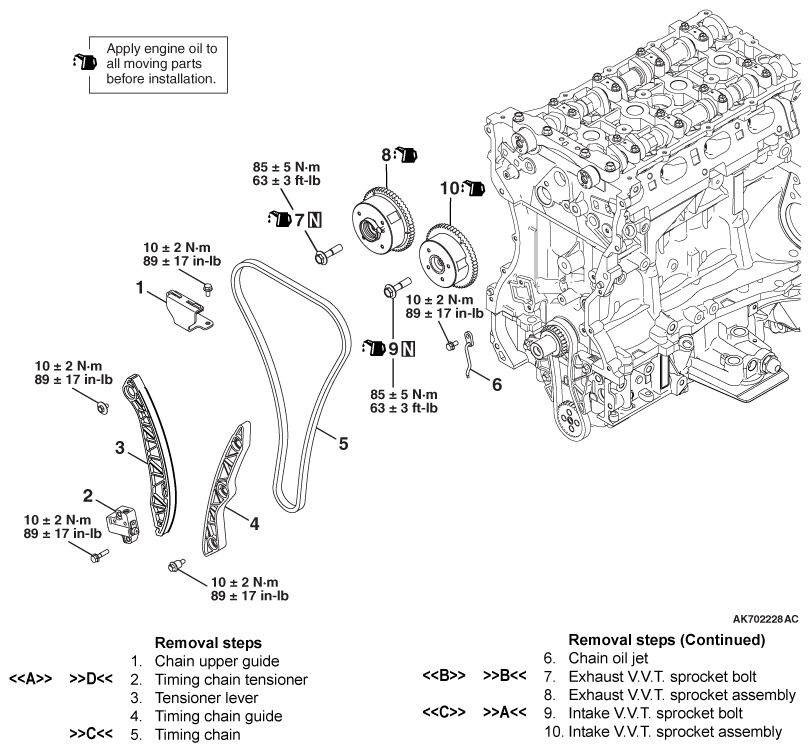

Fig 1: Timing Chain Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
