Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

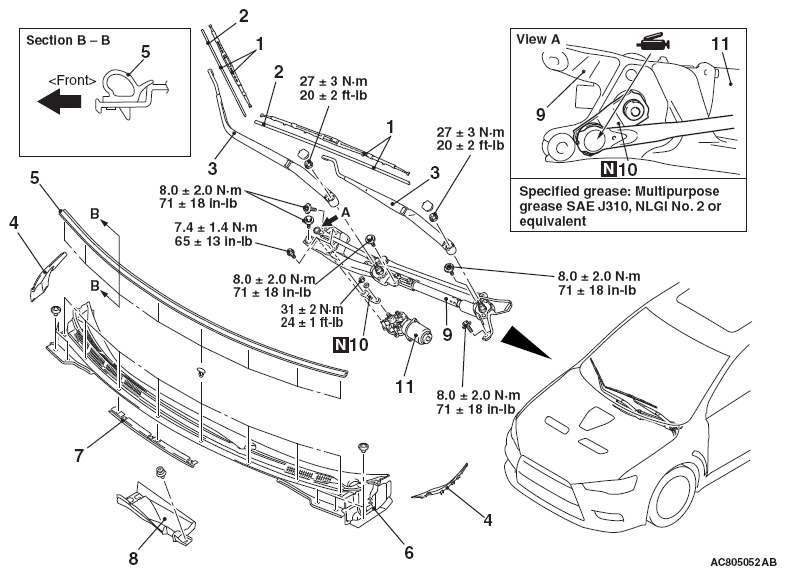

Fig 1: Windshield Wiper Replacement Components With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

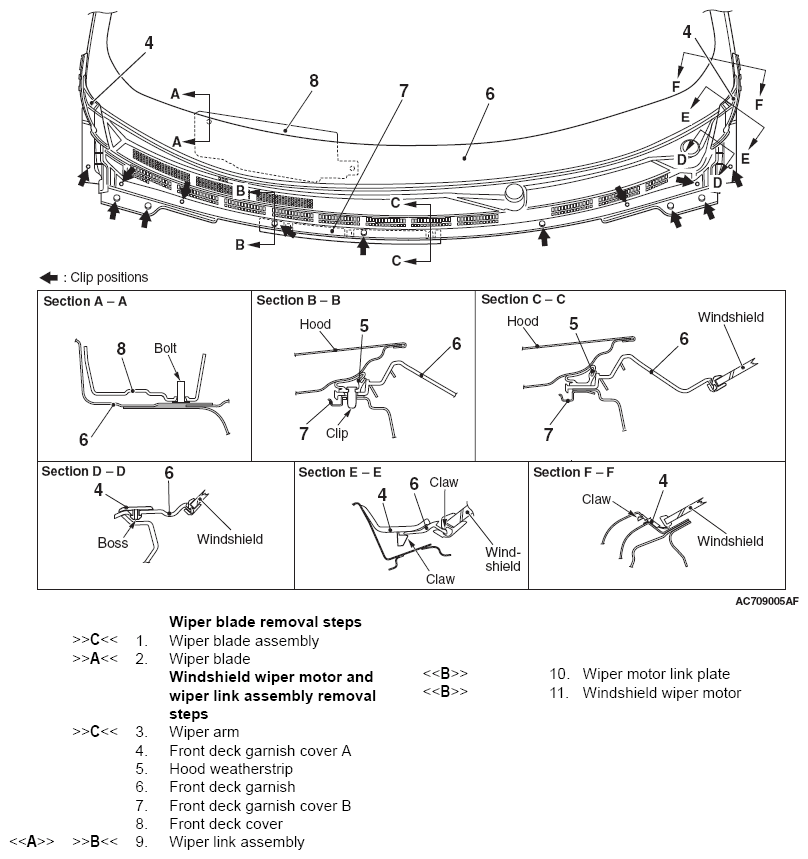

Fig 2: Identifying Windshield Wiper Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
