Engine Control - Lancer SPORTBACK
›
Accelerator Pedal
›
Removal And Installation
Removal And Installation

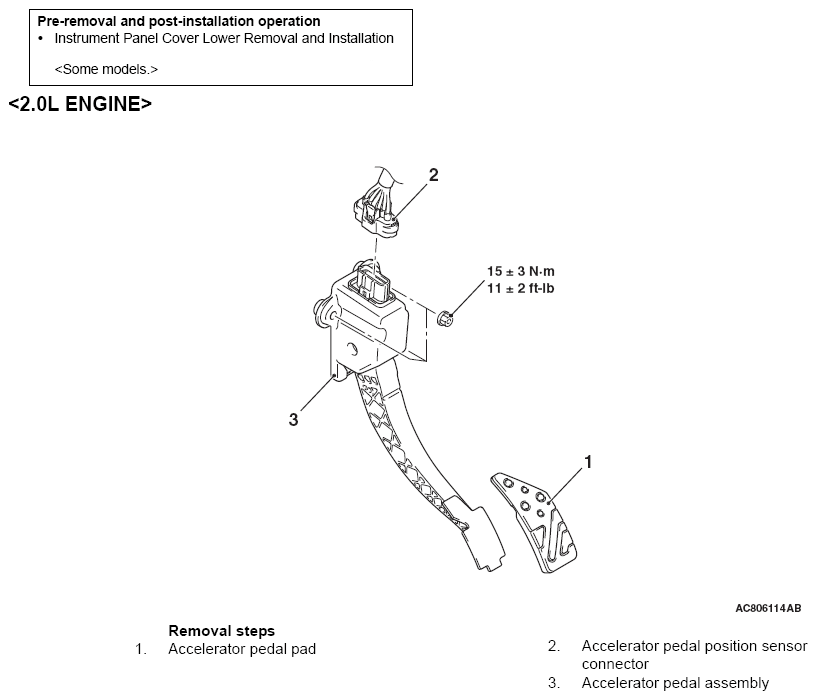

Fig 1: Accelerator Pedal Assembly Replacement Components With Torque Specifications - 2.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

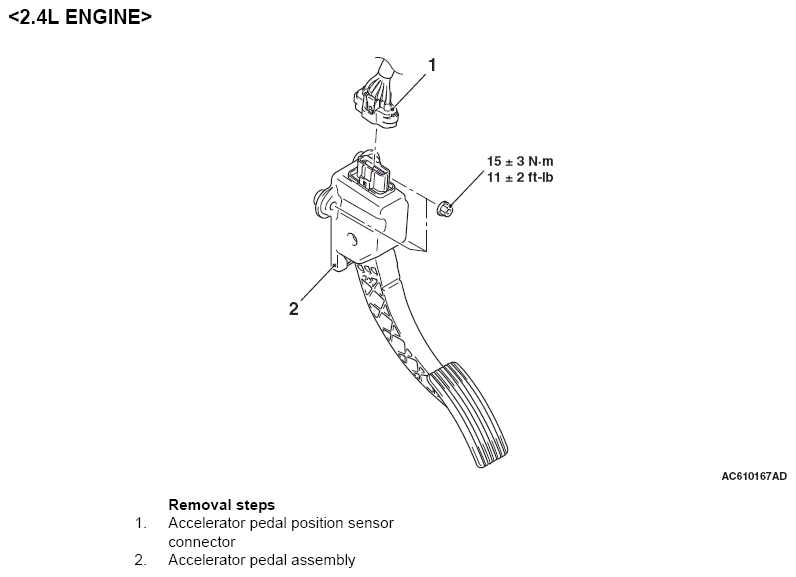

Fig 2: Accelerator Pedal Assembly Replacement Components With Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
