<2.0L Engine>
ITEM SPECIFICATION
| Item | CX4AL | ||
|---|---|---|---|
| MUFZL2M/3M | |||

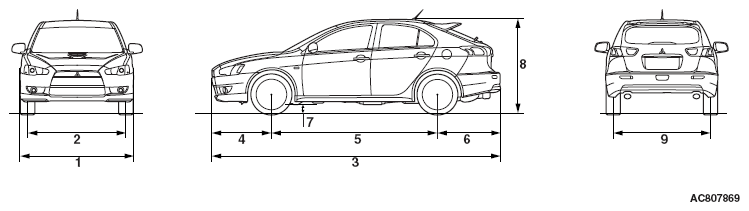

| Vehicle dimension mm (in) | Overall width | 1 | 1,760 (69.4) |
| Tread-front | 2 | 1,530 (60.2) | |
| Overall length | 3 | 4,585 (180.4) | |
| Overhang-front | 4 | 955 (37.6) | |
| Wheelbase | 5 | 2,635 (103.7) | |
| Overhang-rear | 6 | 995 (39.1) | |
| Ground clearance | 7 | 147 (5.8) | |
| Overall height (unladen) | 8 | 1,515 (59.7) | |
| Tread-rear | 9 | 1,530 (60.2) | |
| Vehicle weight kg (lb) | Curb weight | 1,620 (3,572) | |
| Gross vehicle weight rating | 2,045 (4,509) | ||
| Gross axle weight rating-front | 1,080 (2,381) | ||
| Gross axle weight rating-rear | 1,015 (2,238) | ||
| Seating capacity | 5 | ||
| Engine | Model code | 4B11 with Charge air cooler turbocharger | |
| Piston displacement cm3 (cu in) | 1,998 (121.9) | ||
| Maximum output kW/r/min (HP/r/min) | 177/6,000 (237/6,000) | ||
| Maximum torque N.m/r/min (ft-lb/r/min) | 343/2,500-4,750 (253/2,500-4,750) | ||
| Fuel system | Fuel supply system | MFI | |
| Transaxle | Model code | W6DGA | |
| Type | TC-SST | ||
| Minimum turning radius m (ft) | 5.0 (16.4) | ||
