<2.4L Engine>
ITEM SPECIFICATION
| Item | CX5AL | |||
|---|---|---|---|---|
| NXHL2M/3M/7M | TXHL2M/3M/7M | |||

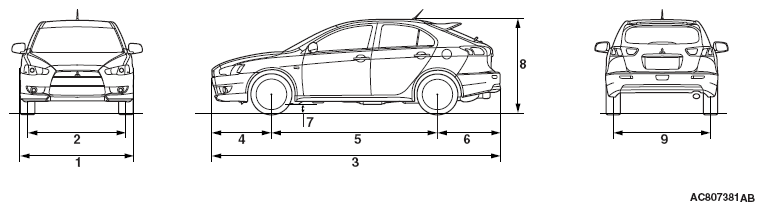

| Vehicle dimension mm (in) | Overall width | 1 | 1,760 (69.4) | 1,760 (69.4) |
| Tread-front | 2 | 1,530 (60.2) | 1,530 (60.2) | |
| Overall length | 3 | 4,585 (180.4) | 4,585 (180.4) | |
| Overhang-front | 4 | 955 (37.6) | 955 (37.6) | |
| Wheelbase | 5 | 2,635 (103.7) | 2,635 (103.7) | |
| Overhang-rear | 6 | 995 (39.1) | 995 (39.1) | |
| Ground clearance | 7 | 147 (5.8) | 147 (5.8) | |
| Overall height (unladen) | 8 | 1,515 (59.7) | 1,515 (59.7) | |
| Tread-rear | 9 | 1,530 (60.2) | 1,530 (60.2) | |
| Vehicle weight kg (lb) | Curb weight | 1,405 (3,098) | 1,435 (3,164) | |
| Gross vehicle weight rating | 1,900 (4,190) | 1,900 (4,190) | ||
| Gross axle weight rating-front | 1,010 (2,227) | 1,010 (2,227) | ||
| Gross axle weight rating-rear | 960 (2,117) | 960 (2,117) | ||
| Seating capacity | 5 | 5 | ||
| Engine | Model code | 4B12 | 4B12 | |
| Piston displacement cm3 (cu in) | 2,360 (144.0) | 2,360 (144.0) | ||
| Maximum output kW/r/min (HP/r/min) | 125/6,000 (168/6,000) <Except California>, 120/6,000 (161/6,000) <California> | |||
| Maximum torque N.m/r/min (ft-lb/r/min) | 226/4,100 (167/4,100) <Except California>, 218/4,100 (161/4,100) <California> | |||
| Fuel system | Fuel supply system | MFI | MFI | |
| Transaxle | Model code | F5MBB | F1CJA | |
| Type | 5 M/T | CVT | ||
| Minimum turning radius m (ft) | 5.0 (16.4) | 5.0 (16.4) | ||
