Camshaft Position Sensor
›
Removal And Installation < 3.0L Engine >
›
Notes
Removal And Installation < 3.0L Engine >: Notes

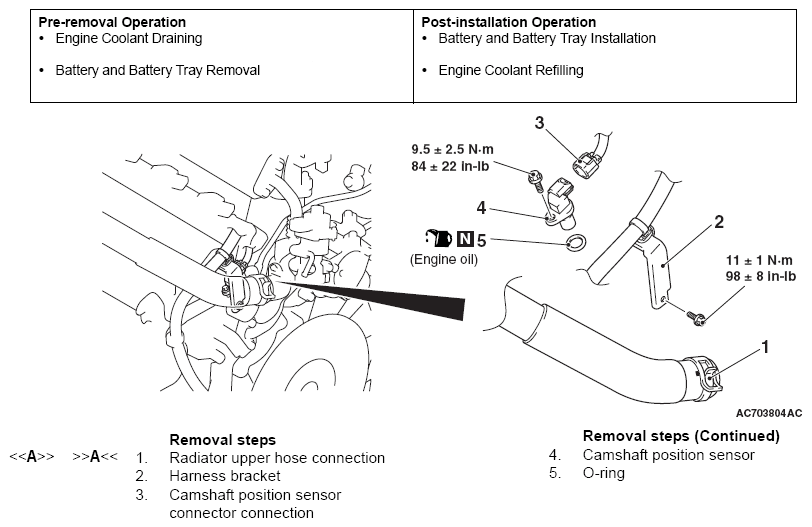

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
