Seat Assembly
›
Third Seat Assembly
›
Disassembly And Assembly
Disassembly And Assembly

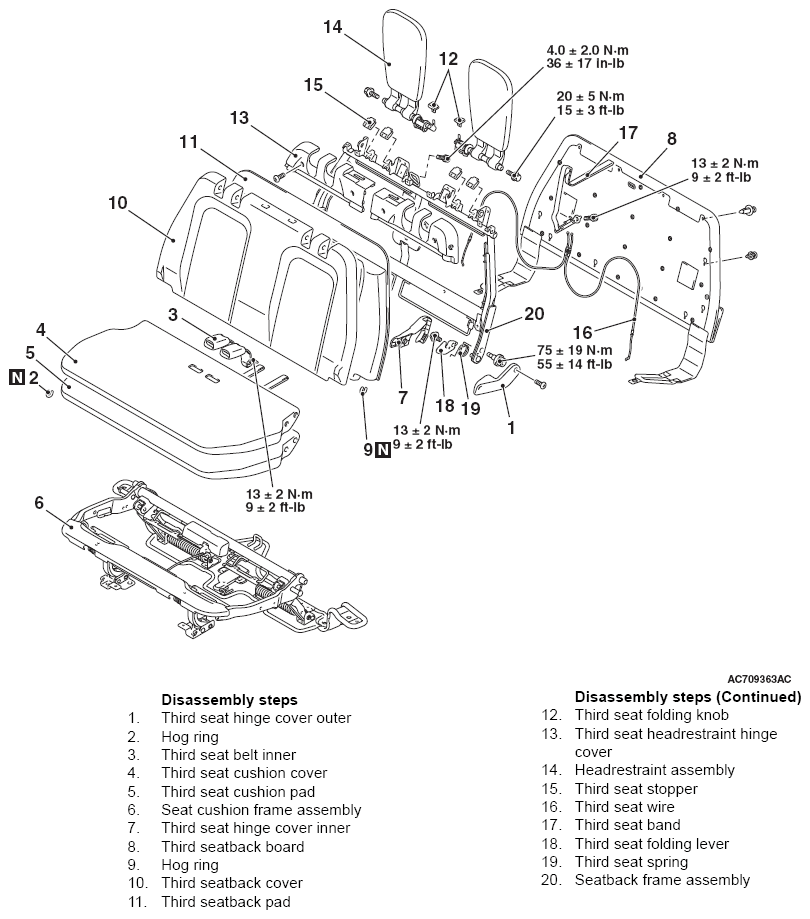

Fig 1: Third Seat Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
