Disassembly And Assembly: Notes

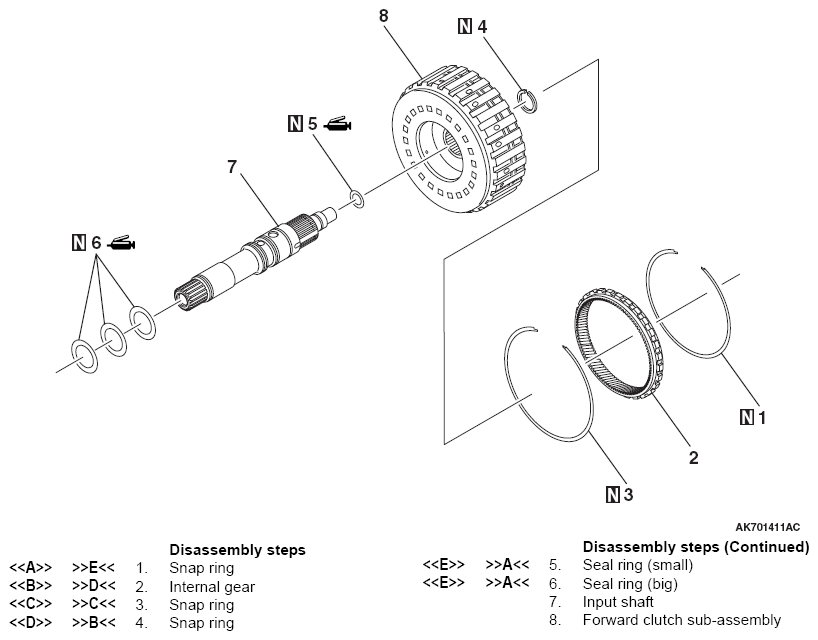

Fig 1: Identifying Forward Clutch Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
