Mitsubishi
›
2010
›
Outlander SE, AWD
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Headlining
›
Removal And Installation
›
Notes
Removal And Installation: Notes
CAUTION:
For the removal of the headlining, refer to
SERVICE PRECAUTIONS
and
CURTAIN AIR BAG MODULE
).

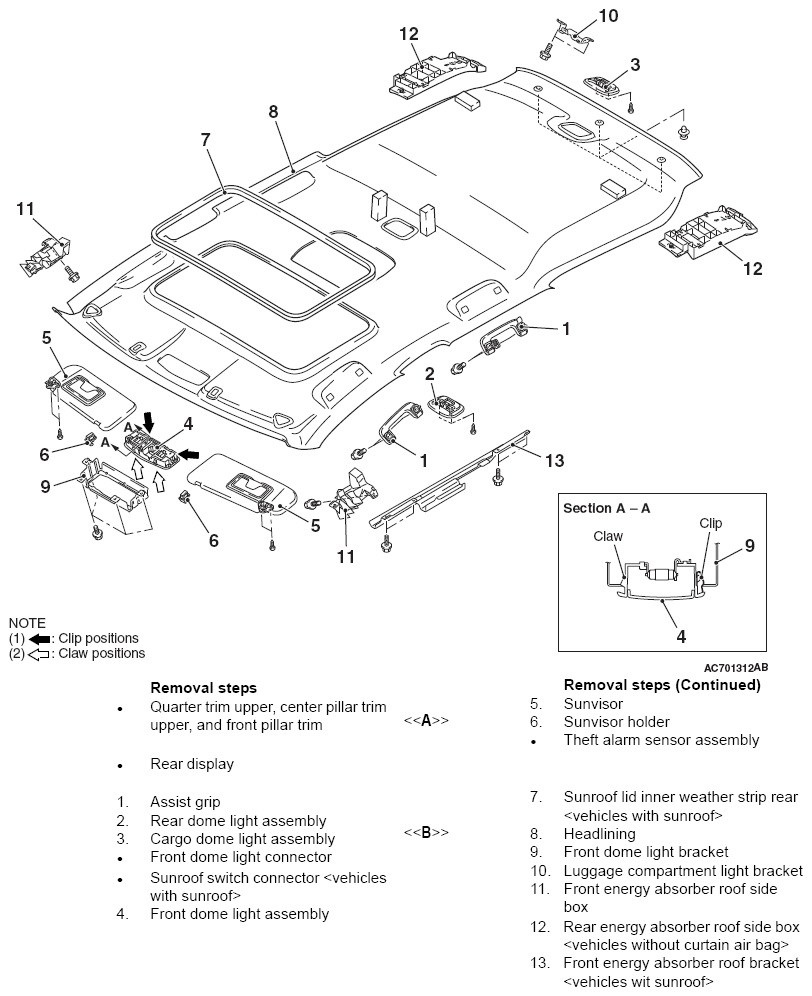

Fig 1: Headlining Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
