Removal And Installation: Notes

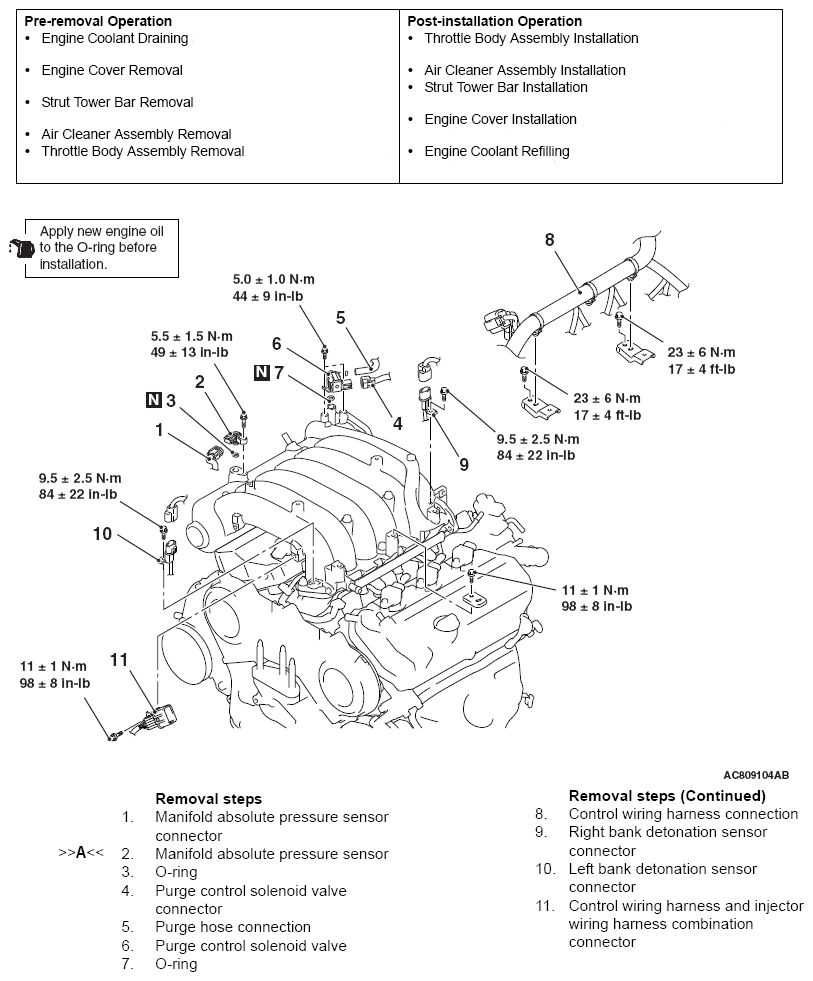

Fig 1: Intake Manifold Plenum Replacement Components With Torque Specifications - 3.0L Engine (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

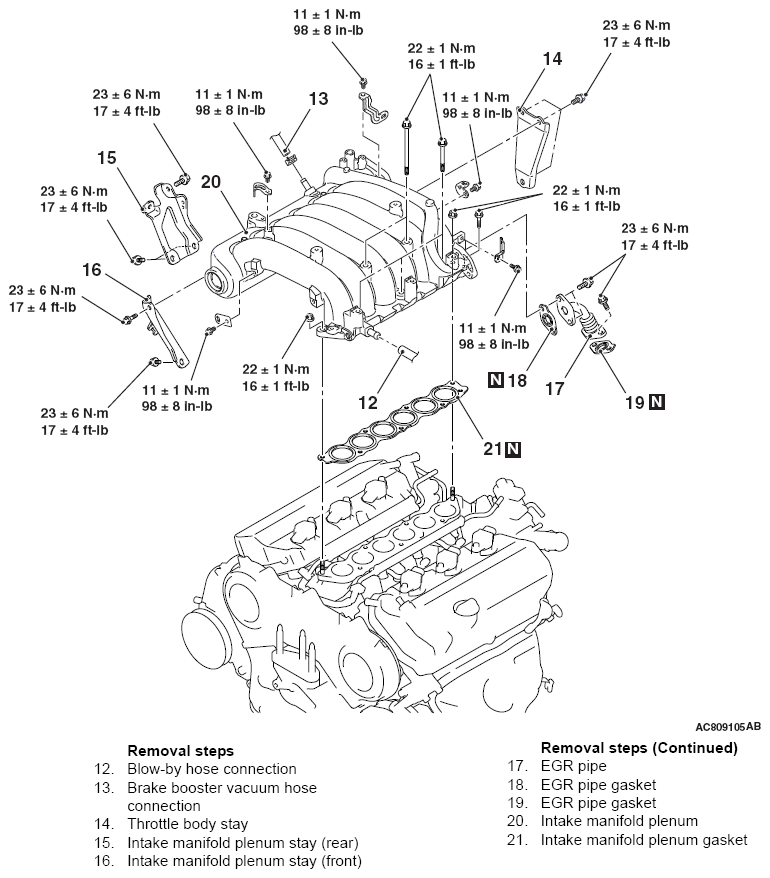

Fig 2: Intake Manifold Plenum Replacement Components With Torque Specifications - 3.0L Engine (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
