Removal And Installation: Notes

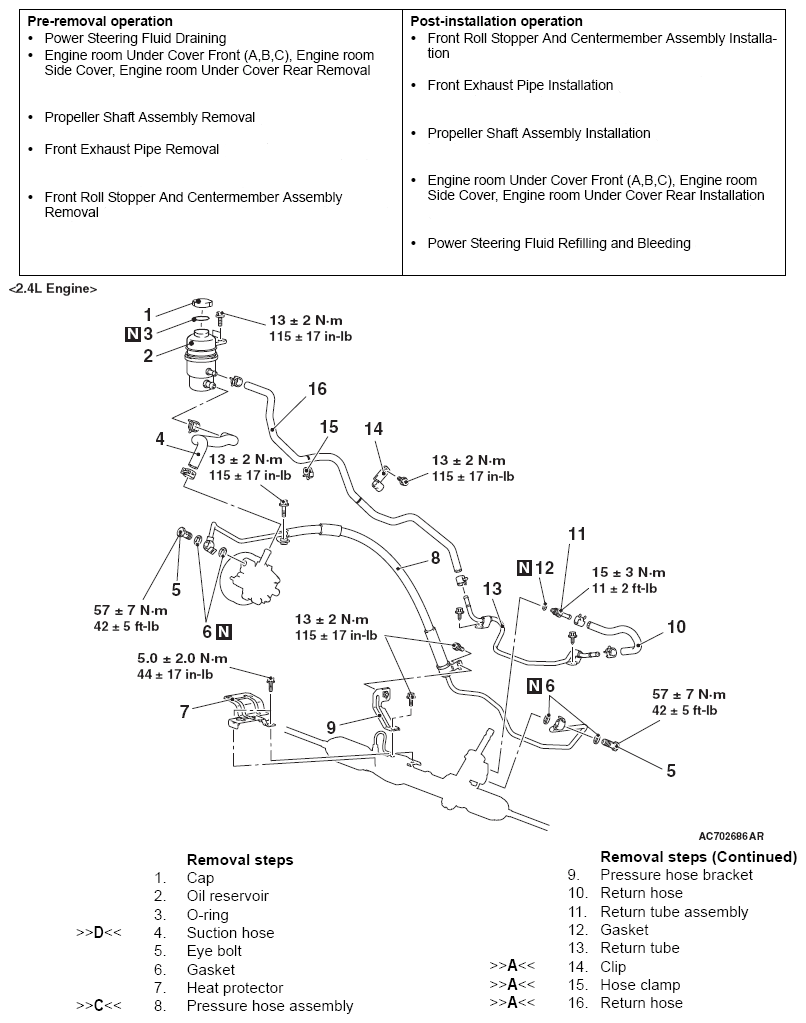

Fig 1: Power Steering Hoses With Torque Specifications - 2.4L
G06483074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

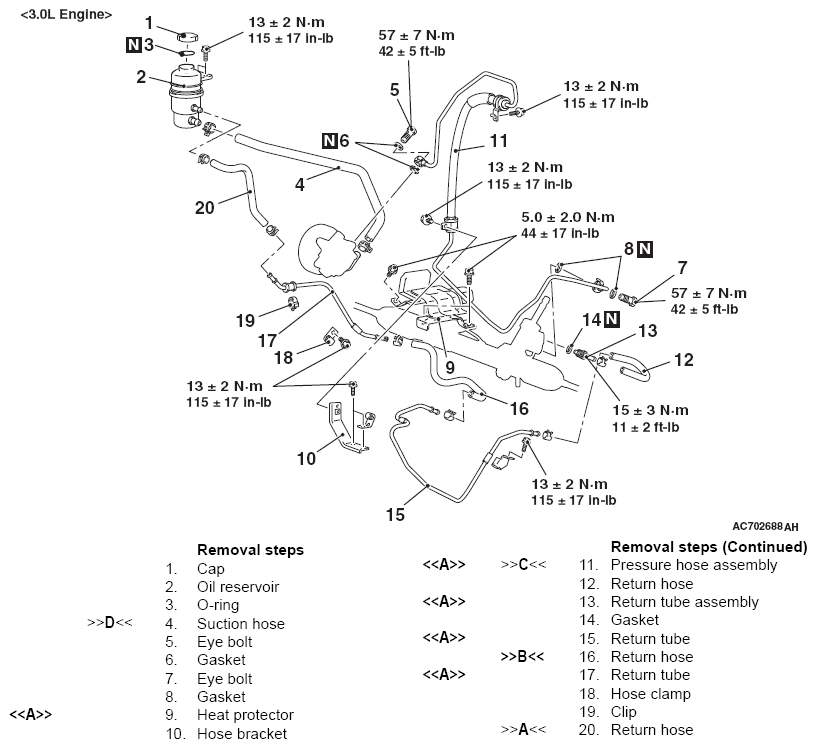

Fig 2: Power Steering Hoses With Torque Specifications - 3.0L
G06483075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
