General Description
›
Function Element Table <5A/T>
›
Sectional View <4A/T>
Sectional View <4A/T>

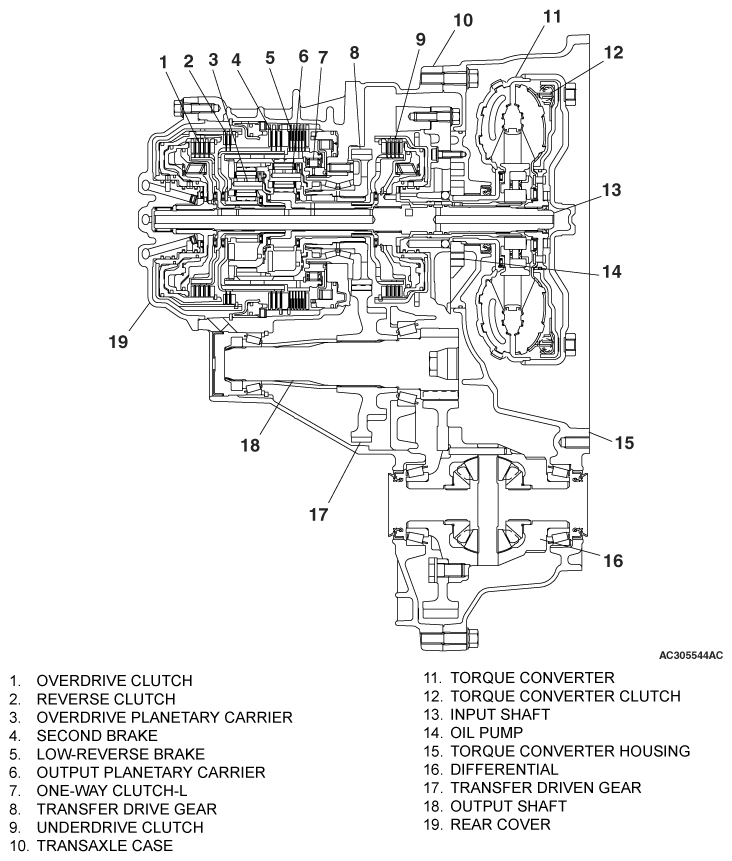

Fig 1: Sectional View Of Automatic Transaxle - 4A/T
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
