General Description
›
Function Element Table <5A/T>
›
Sectional View <5A/T>
Sectional View <5A/T>

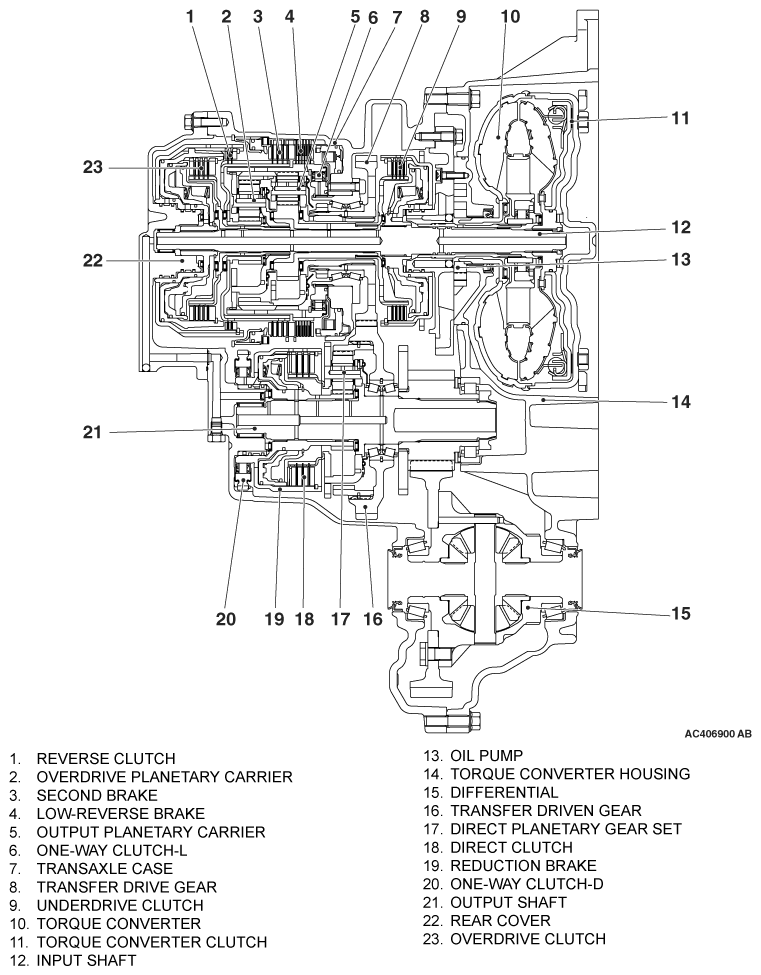

Fig 1: Sectional View Of Automatic Transaxle - 5A/T
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
