Removal And Installation: Notes

WARNING:

• Before removing the steering wheel, air bag module assembly and clock spring refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
• When removing and installing the steering wheel, do not let it bump against the air bag module.

CAUTION: When the steering lock cylinder is replaced, register the encrypted code. Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE .

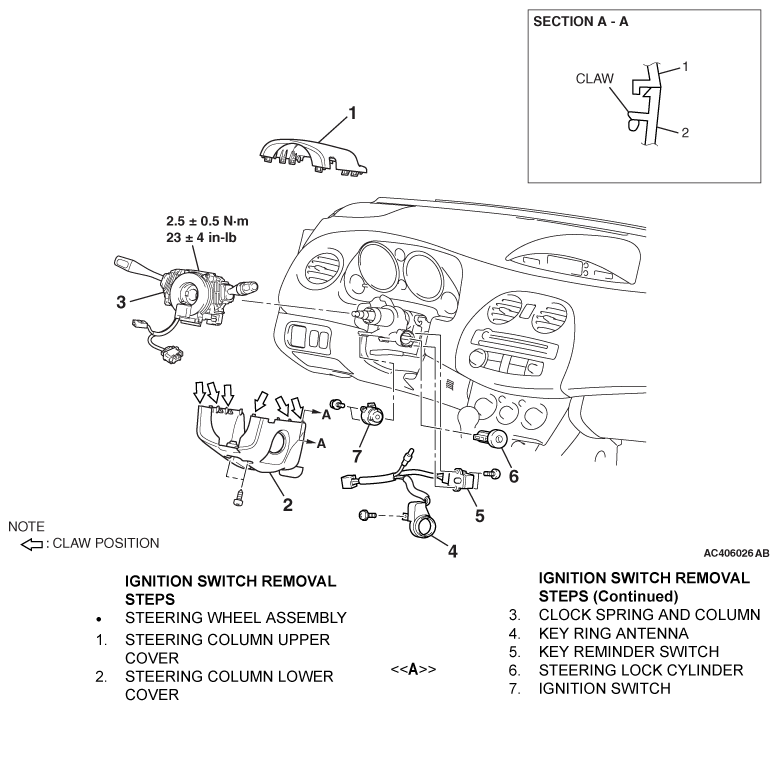

Fig 1: Ignition Switch Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
