Removal And Installation <3.8L Engine>
›
Notes
Removal And Installation <3.8L Engine>: Notes

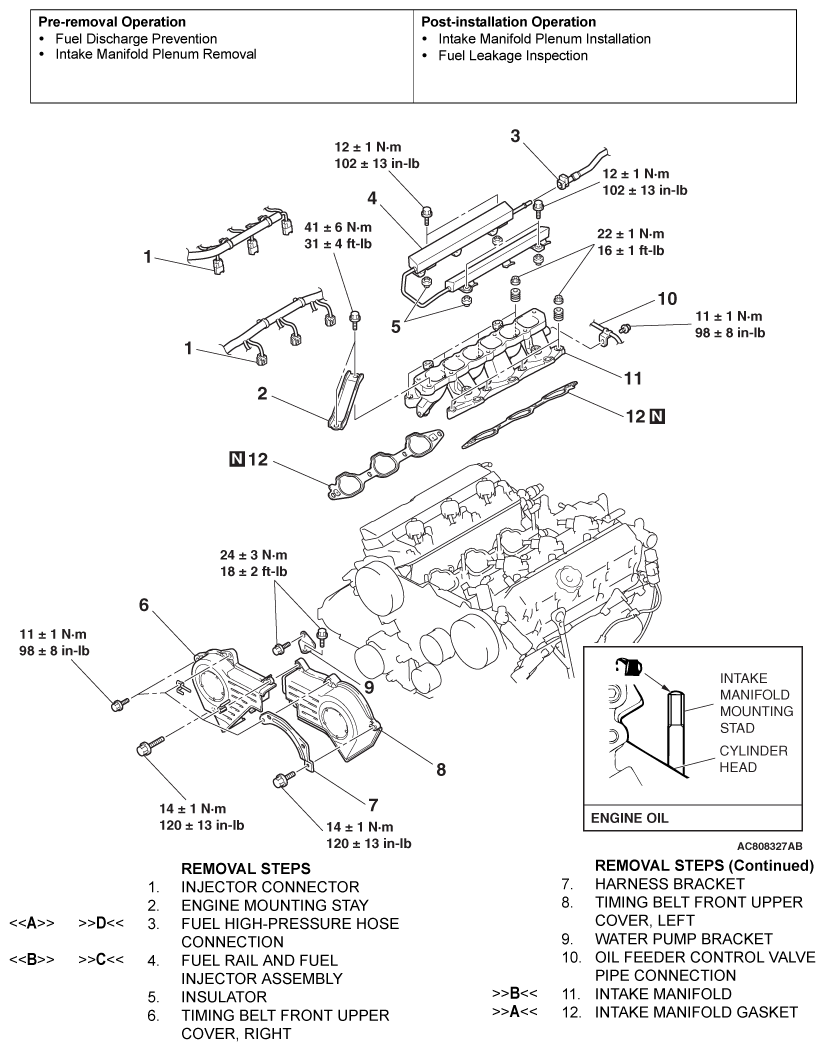

Fig 1: Manifold Removal And Installation With Torque Specifications - 3.8L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
