DTC P1769: Stoplight Switch System
›
Notes
DTC P1769: Stoplight Switch System: Notes

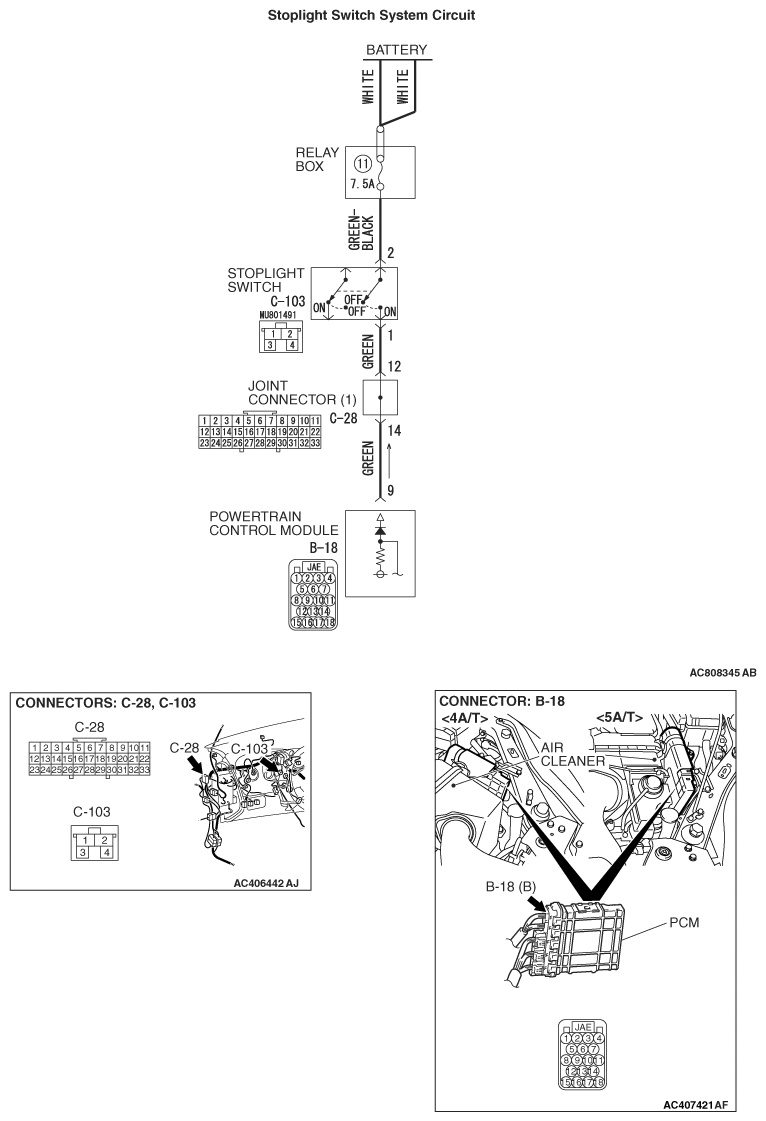

Fig 1: Stoplight Switch System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
