General Description
›
System Construction Diagram
›
Notes
System Construction Diagram: Notes

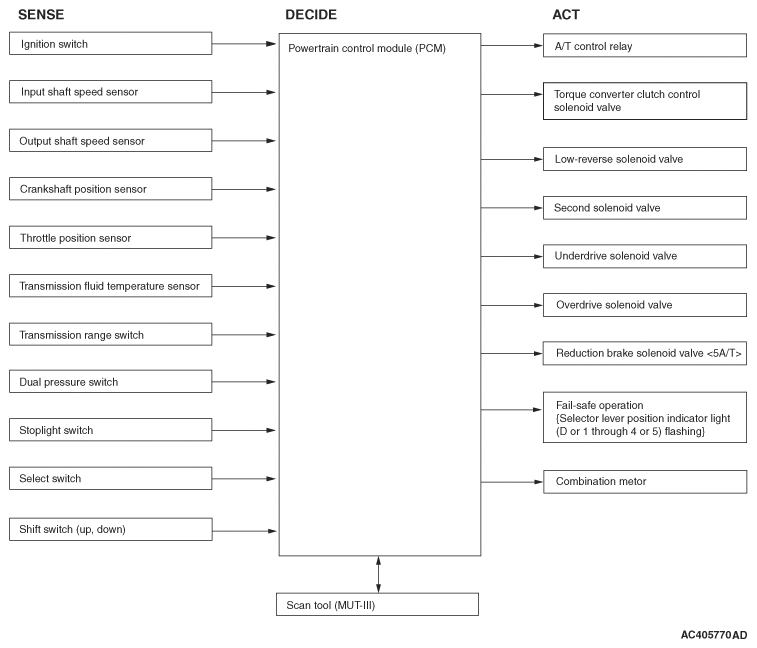

Fig 1: System Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
