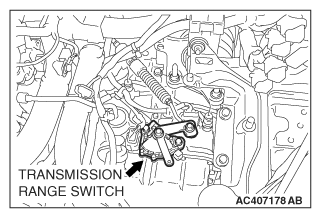

Transmission Range Switch Check

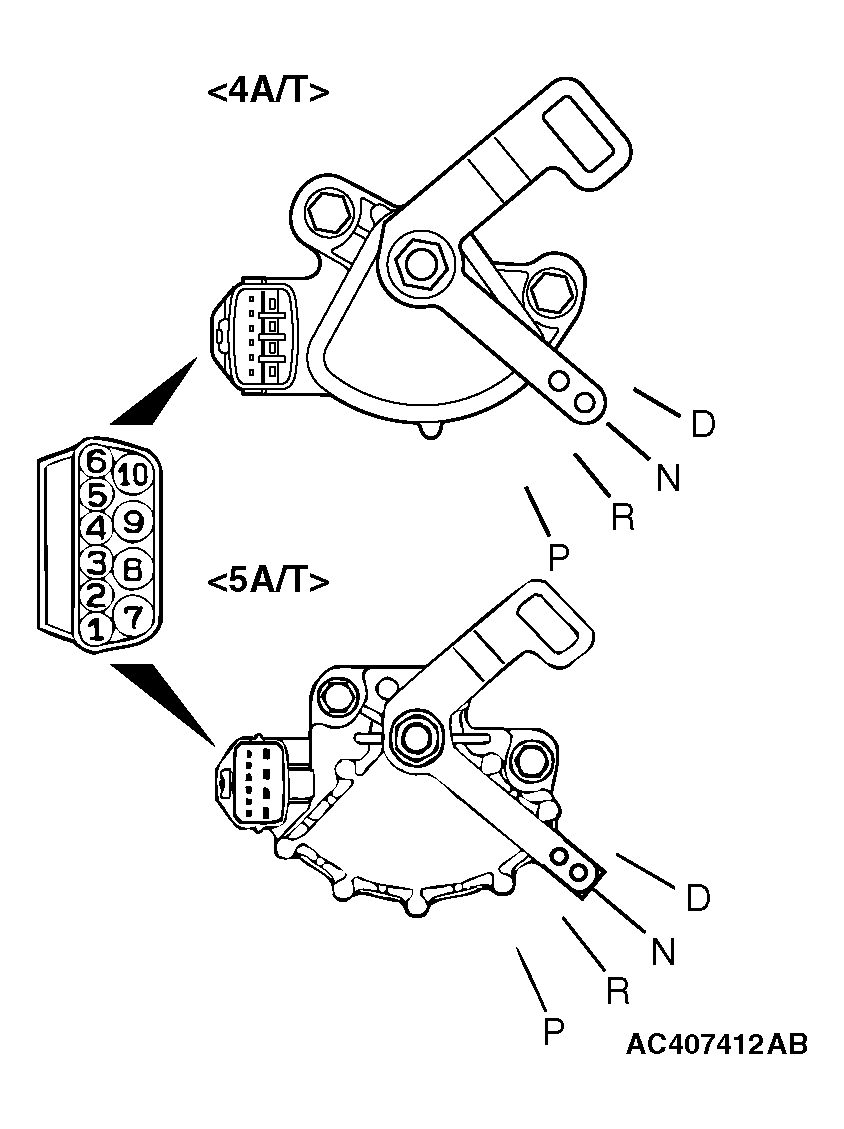

TRANSMISSION RANGE SWITCH REFERENCE
| TRANSMISSION RANGE | TERMINAL CONNECTION OF TESTER | SPECIFIED CONDITION |
|---|---|---|
| P | 3 - 8, 9 - 10 | Less than 2 ohms. |
| R | 7 - 8 | |
| N | 4 - 8, 9 - 10 | |
| D | 1 - 8 |
Refer to TRANSMISSION RANGE SWITCH CHECK .
| TRANSMISSION RANGE | TERMINAL CONNECTION OF TESTER | SPECIFIED CONDITION |
|---|---|---|
| P | 3 - 8, 9 - 10 | Less than 2 ohms. |
| R | 7 - 8 | |
| N | 4 - 8, 9 - 10 | |
| D | 1 - 8 |
Refer to TRANSMISSION RANGE SWITCH CHECK .
