>>A<< Shift Lock Cable Unit Installation
- Place the selector lever in "P" position.
- Turn the ignition key to "LOCK" (OFF) position.

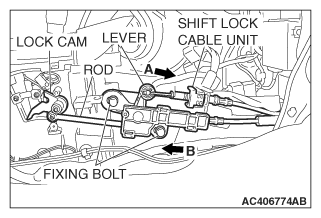

- Install the rod of the shift lock cable unit to the lock cam, push the lever in direction A, push the shift lock cable unit in direction B and tighten the fixing bolt at the standard torque.
Tightening torque: 5.0 ± 1.0 N.m (44 ± 9 in-lb)
- Check the selector lever operation. (Refer to SELECTOR LEVER OPERATION CHECK ).
