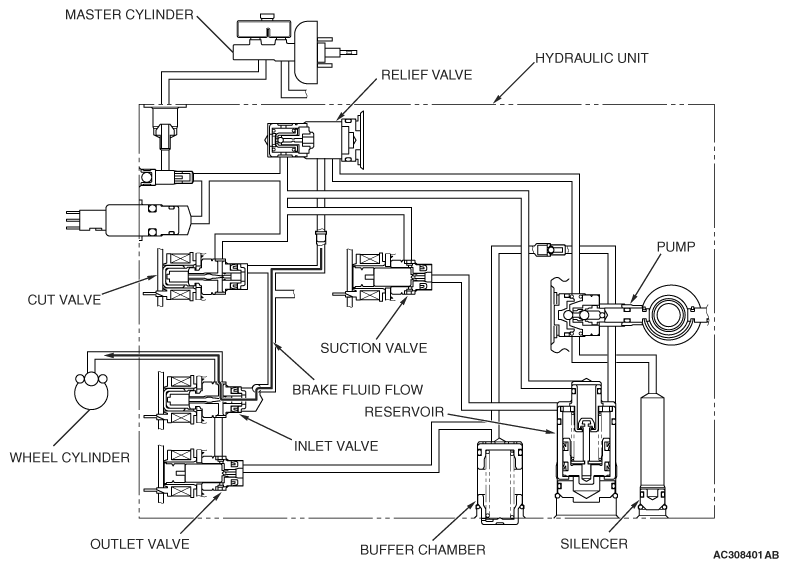

When The Abs Fluid Pressure Is Increasing
The system opens the inlet solenoid valve and closes the outlet solenoid valve to increase the brake fluid pressure in the wheel cylinders.
STATUS OF THE OPERATION VALVE
STATUS OF OPERATION VALVE
| ITEM | ENERGIZATION | OPEN/CLOSE |
|---|---|---|
| Cut valve | OFF | Open |
| Suction valve | OFF | Closed |
| Inlet valve | ON | Closed |
| Outlet valve | OFF | Closed |
