Fuel Pump Module

NOTE: For the removal and installation procedures, refer to the FUEL PUMP MODULE REPLACEMENT PROCEDURE in (Refer to ).

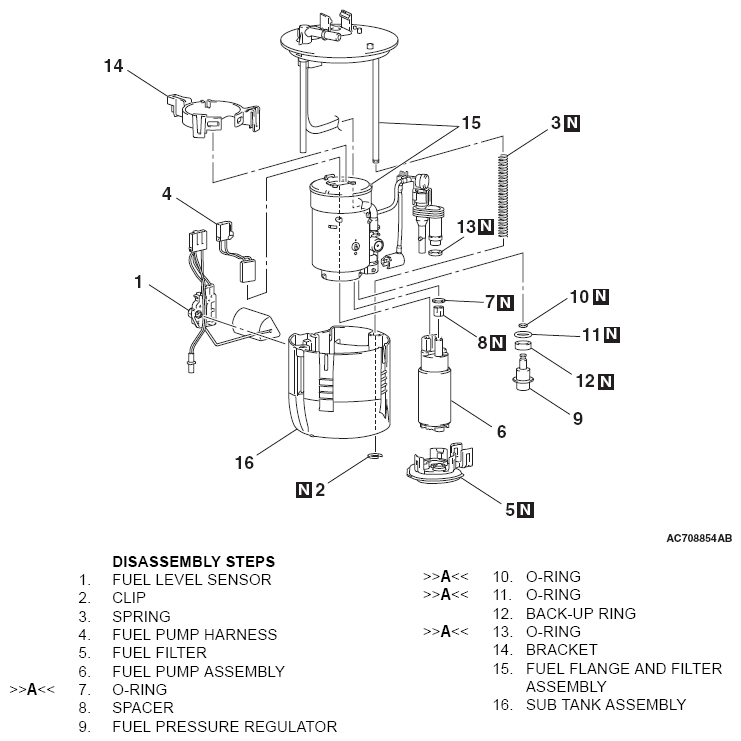

Fig 1: Disassembly/Assembly Of Fuel Pump Module Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
