Removal And Installation: Notes

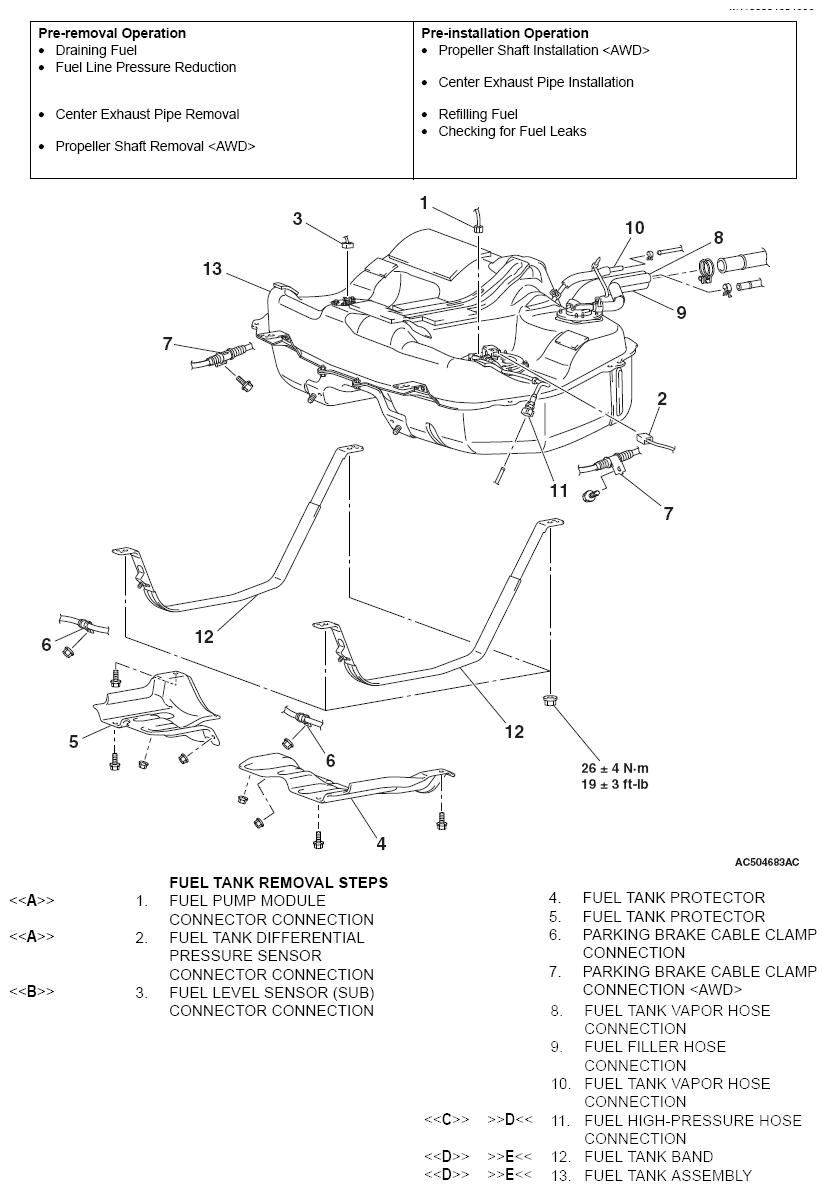

Fig 1: Removal/Installation Of Fuel Tank Components With Torque Specification (1 Of 3)
G06699069Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

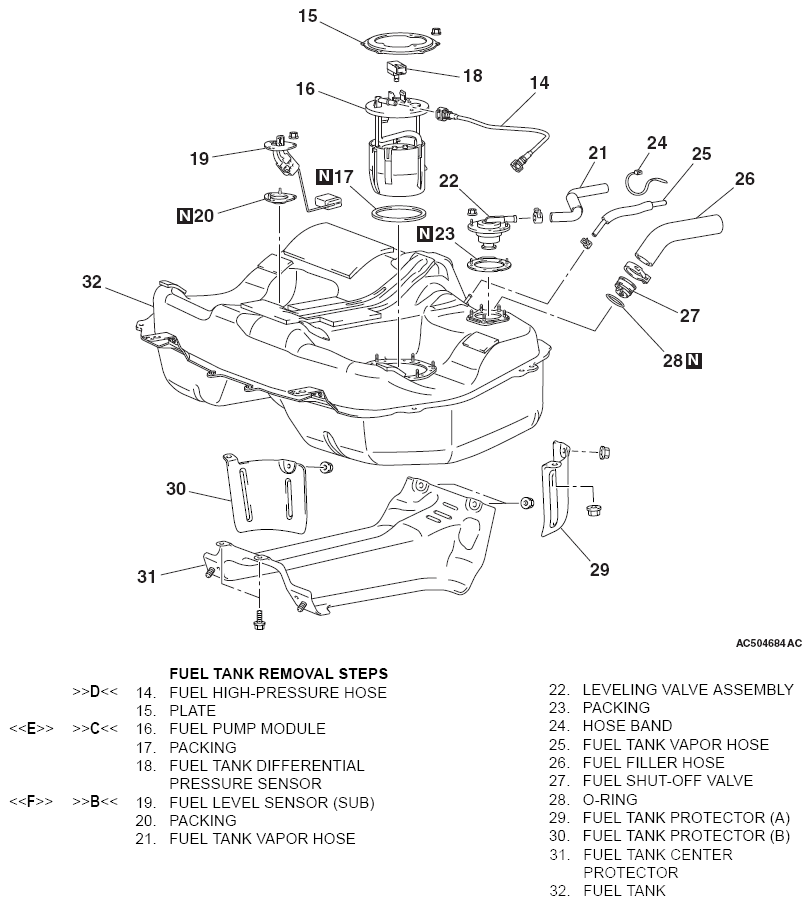

Fig 2: Removal/Installation Of Fuel Tank Components With Torque Specification (2 Of 3)
G06699070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

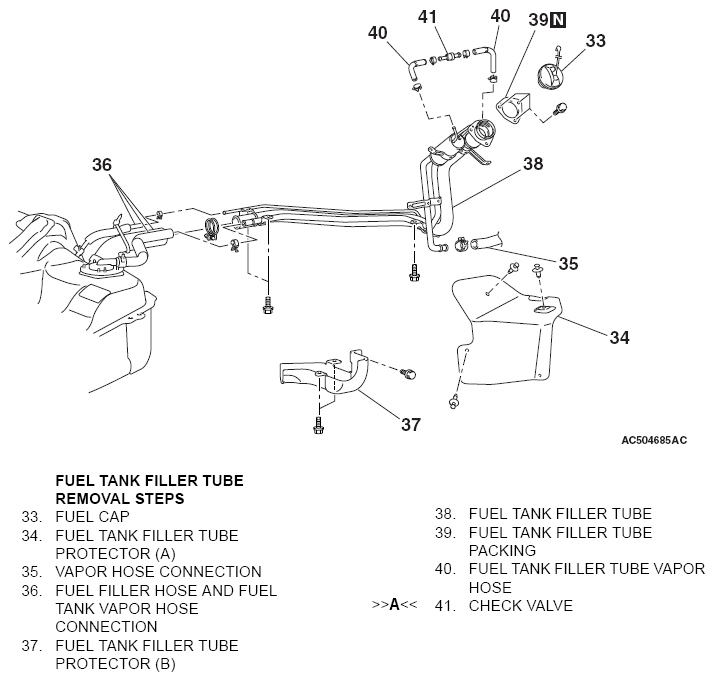

Fig 3: Removal/Installation Of Fuel Tank Components With Torque Specification (3 Of 3)
G06699071Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
