Disassembly And Assembly: Notes

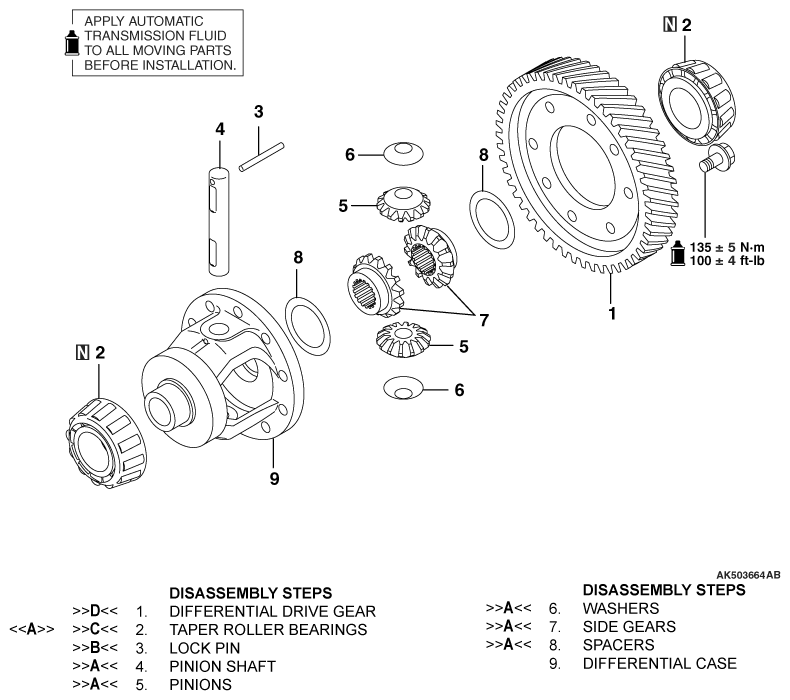

Fig 1: Differential Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998823: Installer Adapter (42)
