Removal And Installation <3.8L Engine>
›
Notes
Removal And Installation <3.8L Engine>: Notes

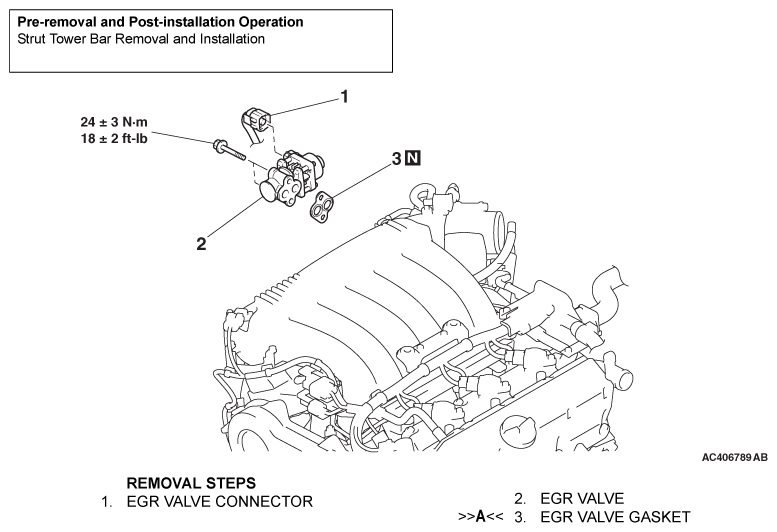

Fig 1: Removal/Installation EGR Valve (3.8L Engine) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
