Lancer DE, Automatic CVT
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Continuously Variable Transaxle On-Vehicle Service - Except Lancer Evolution
›
General Information
›
System Construction Diagram
System Construction Diagram

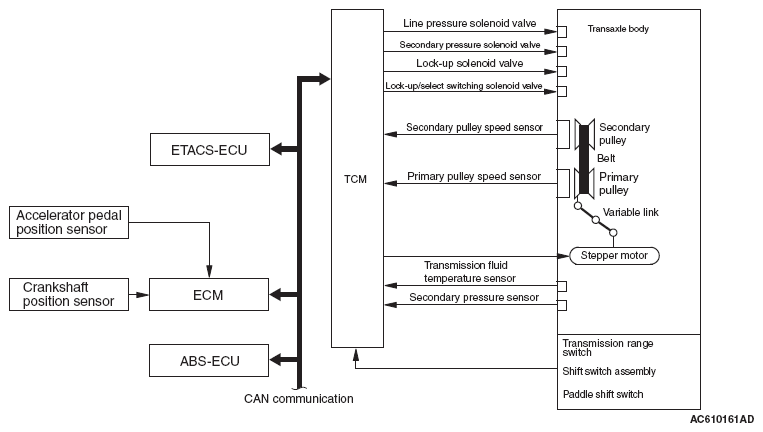

Fig 1: CVT System Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
