CVT Control Relay Check

Remove the CVT control relay.

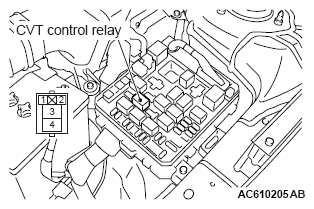

Fig 1: Identifying CVT Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use a jumper wire to connect the positive battery terminal (+) to the CVT control relay terminal No. 2, and the negative battery terminal (-) to the terminal No. 1.

Check for continuity between the CVT control relay terminals No. 3 and No. 4.

CVT CONTROL RELAY CONTINUITY CHECK

Jumper wire	Continuity between terminals No. 3 and No. 4
Connect	Yes (2 Ω or less)
Disconnect	No

Fig 2: Checking For Continuity Between CVT Control Relay Terminals No. 3 And No. 4

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
