Removal And Installation: Notes
WARNING:
- Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < Except RALLIART > or DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > .
- When removing and installing the steering wheel, do not let it bump against the driver's air bag module.
CAUTION:
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to
STEERING WHEEL SENSOR CALIBRATION
). < Vehicles with ASC >
Fig 1: Exploded View Of Steering Wheel With Torque Specifications (Vehicles Without Steering Switch)

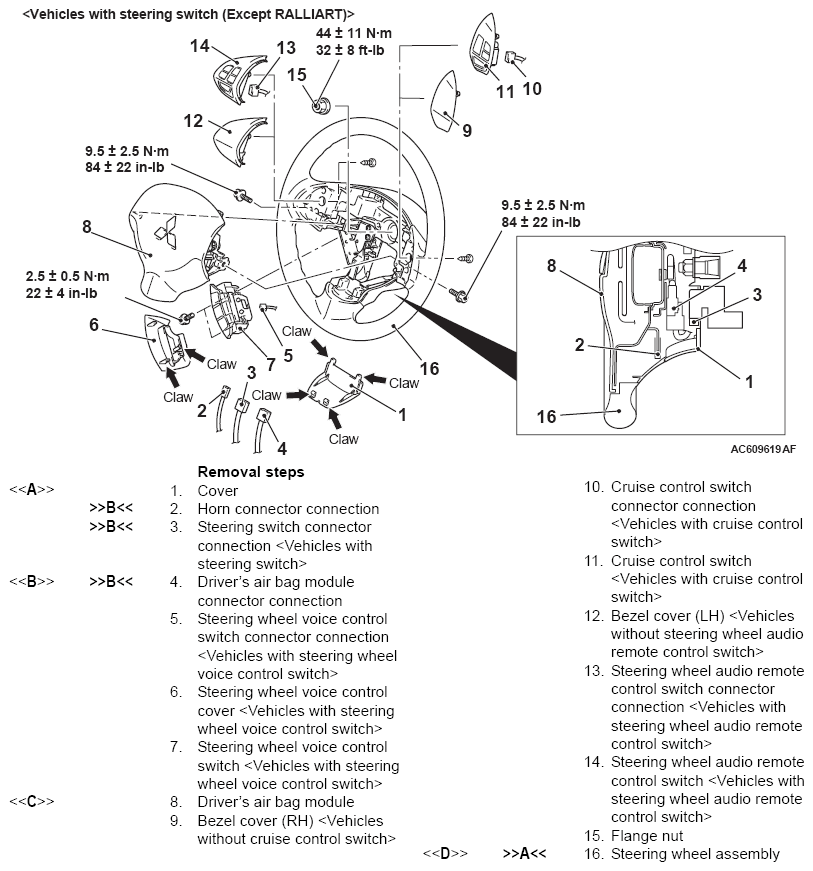

Fig 2: Exploded View Of Steering Wheel With Torque Specifications (Vehicles With Steering Switch - Except Ralliart)

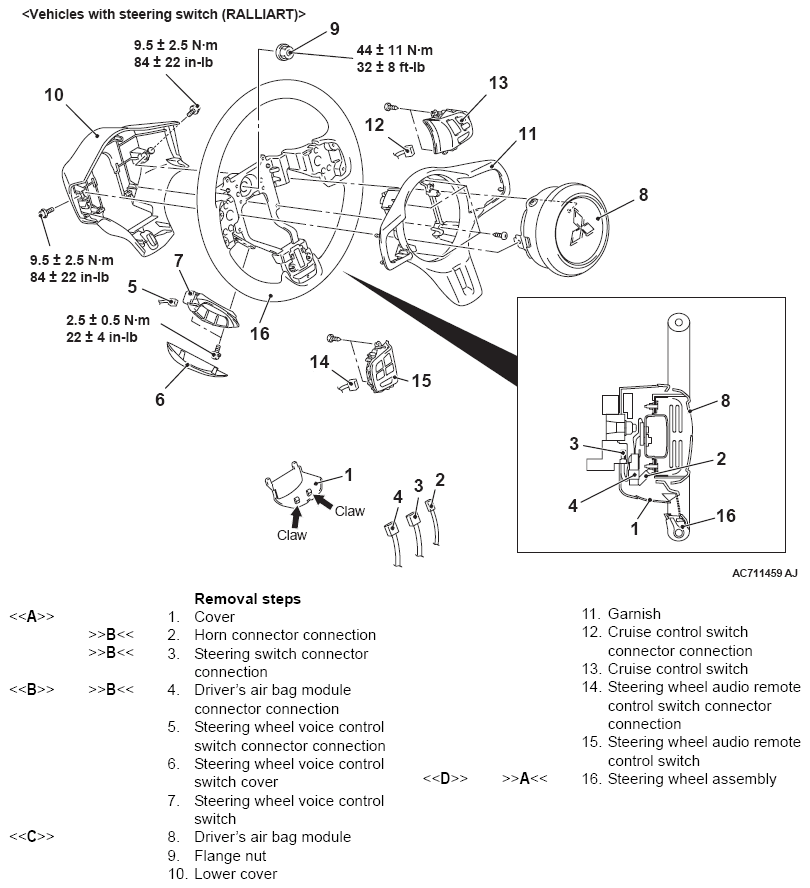

Fig 3: Exploded View Of Steering Wheel With Torque Specifications (Vehicles With Steering Switch - Ralliart)
Required Special Tools:
- MB990784: Ornament Remover
- MB990803: Steering wheel puller
