FixVault
Home
›
Mitsubishi
›
2011
›
Lancer ES, 4D Hatchback, Automatic CVT
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System - Except Lancer Evolution
›
Generator Assembly
›
Removal And Installation (2.0L Engine Turbo)
›
Notes
Removal And Installation (2.0L Engine Turbo): Notes

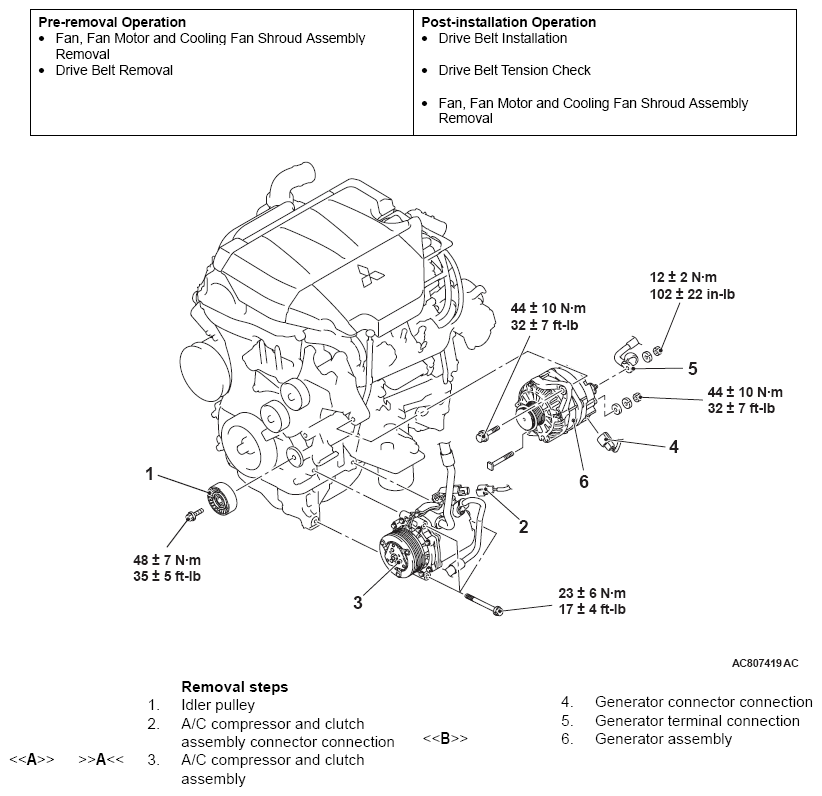

Fig 1: Removing/Installing Generator Assembly With Torque Specifications (2.0L Engine Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
