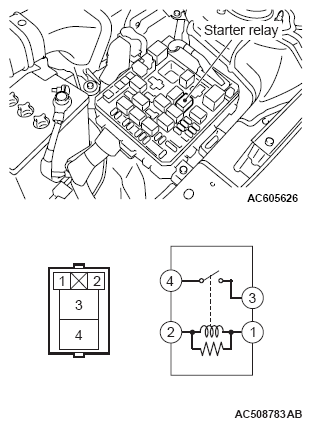

Starter Relay Check
STARTER RELAY CONTINUITY CHART
| Battery voltage |
Terminal number to be connected to tester |
Continuity test results |
| Not applied |
4 - 3 |
Open circuit |
Connect terminal number 2 and battery (+) terminal.
Connect terminal number 1 and battery (-) terminal. |
Continuity (Less than 2 ohms) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
